Disassembly and Replacement Procedures
104
6-2-7. Replacing the Admittance Panel Operating Lever R/L

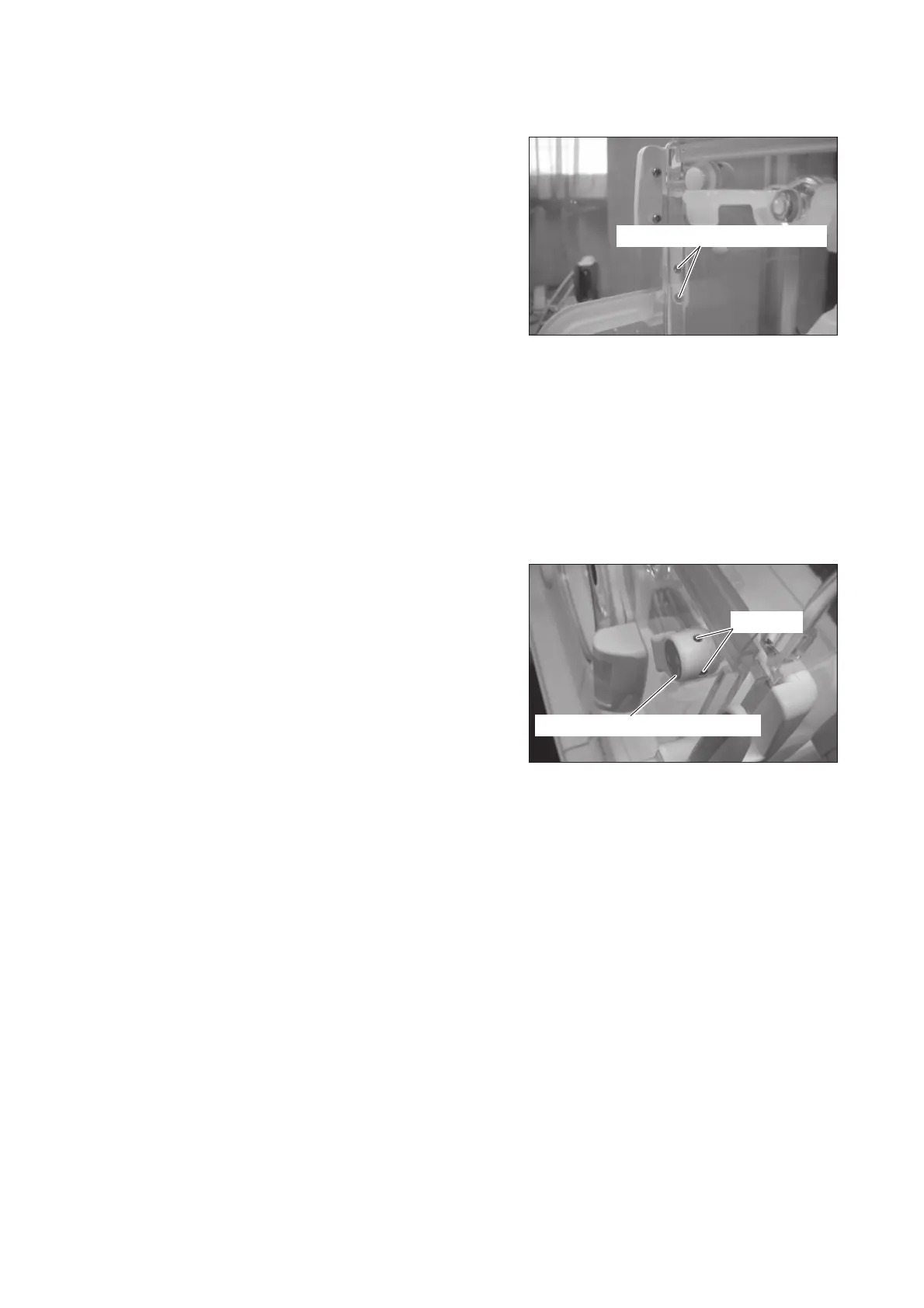

(1) Remove the admittance panel operating lever.
Remove the two pan head tapping screws (M3 x 14)
with a Phillips screwdriver and then remove the
admittance panel operating lever.
Pan head tapping screw (M3x14)
(2) Follow the same procedure mentioned above to re-
move the admittance panel operating levers on the
other admittance panel.
(3) Reassembly: Reassemble in the reverse order of dis-
assembly.
6-2-8. Replacing the Admittance Panel Operating Knob
(1) Remove the admittance panel operating knob.
Loosen the two setscrews with a hexagon wrench
(distance between the opposite sides: 2mm). Slide
the lock shaft and remove the admittance panel op-
erating knob.
(A spacer is placed between the admittance panel
operating knob and the admittance panel. Be care-
ful not to let the spacer come off when attaching the
admittance panel operating knob.)
(2) Follow the same procedure mentioned above to re-
move the admittance panel operating knobs on the
other admittance panel.
(3) Reassembly: Reassemble in the reverse order of dis-
assembly.
Admittance panel operating knob
Setscrew
