6-5-4. Replacing the Rear Panel (with Alarm Lamp)

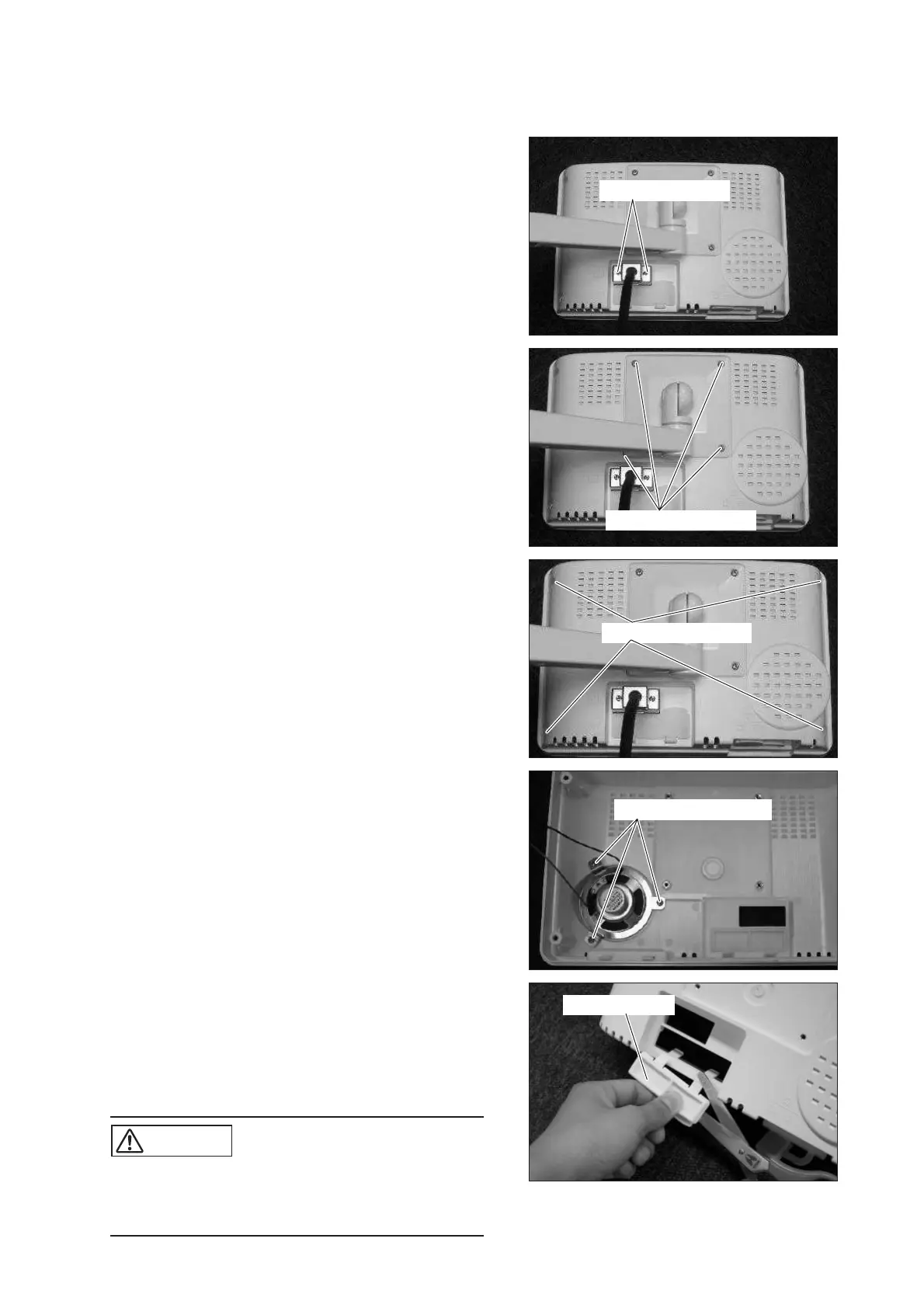

(1) Remove the cable.
Loosen the two screws fixing the cable with a small
Phillips screwdriver and remove the cable.
Loosen the screw.
(2) Remove the screws fixing the panel and the arm.
Remove the four sems screws (M3 x 8) with a
Phillips screwdriver.
Sems screw (M3x8)
(3) Remove the rear panel.
Remove the four sems screws (M3 x 8) with a
Phillips screwdriver.
Sems screw (M3x8)
(4) Remove the attachment fixing the speaker.
Remove the three tapping screws (M3 x 6) with a
Phillips screwdriver.
Tapping screw (M3x6)
(5) Remove the connector cap from the rear panel.
Remove the connector cap from the rear panel by
either pulling out the legs of the cap or cutting them.
(6) Reassembly: Reassemble in the reverse order of dis-
assembly.
CAUTION
쎲 Take care not to get the cable caught. If you cut
the legs of the connector cap when removing it,
attach a new connector cap.
Connector cap
