6-6. Mattress Platform
6-6-1. Replacing the Baby Guard/Side Baby Guard

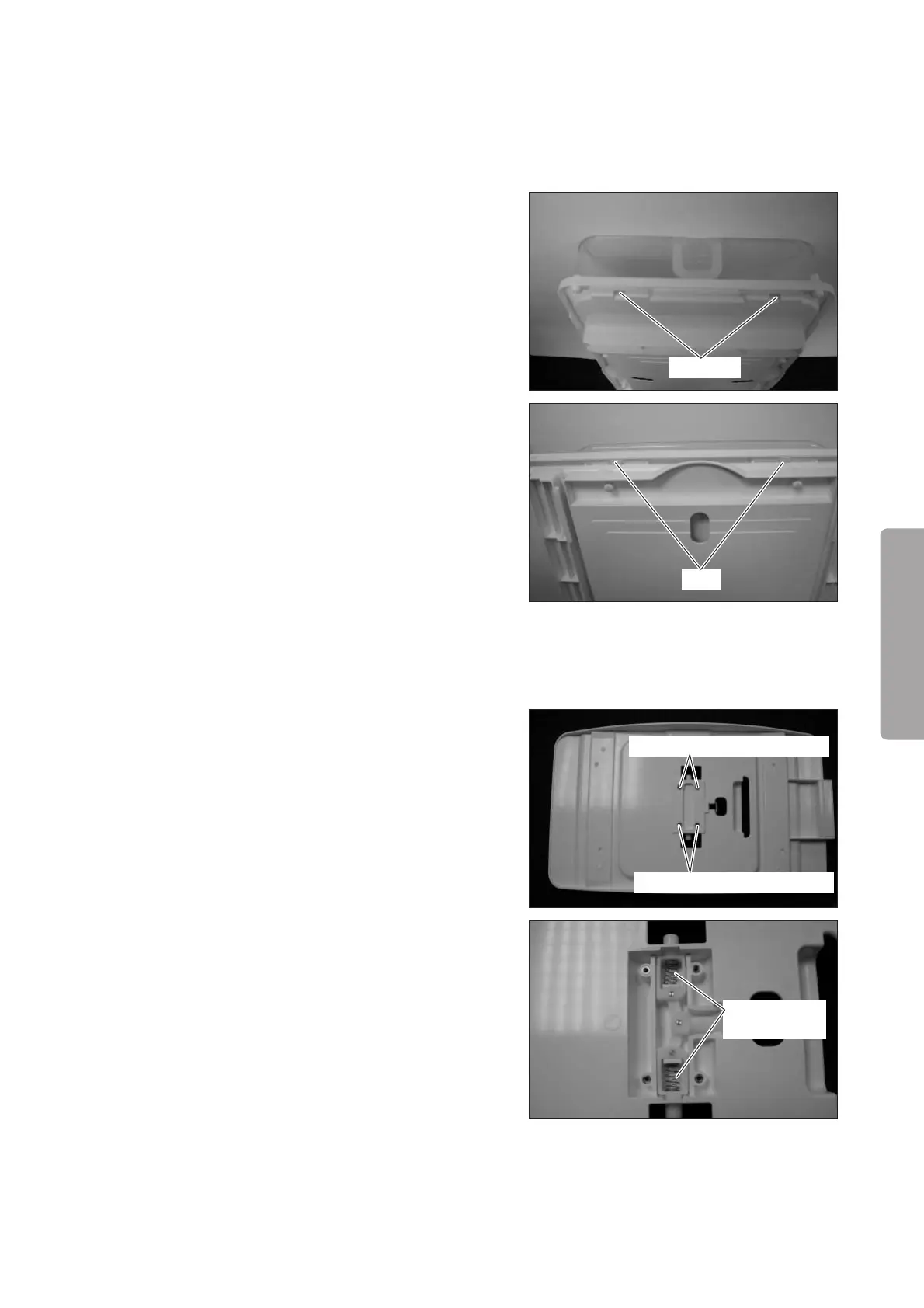

(1) Release the two stoppers fixing the baby guard/side
baby guard and remove the baby guard/side baby
guard.
Push the center of the stopper head on one side and
release the stopper. Push the center of the stopper
head on the other side, pull up the baby guard/side
baby guard, release the stopper, and remove the
baby guard/side baby guard.
Stopper
Hole
(2) Attach the baby guard/side baby guard by insert-
ing the stoppers into the two holes in the mattress
platform. Push the stoppers firmly into place in such
a way that no gap is observed between the mattress
platform and the baby guard/side baby guard. Af-
ter insertion, pull up the baby guard/side baby guard
and make sure that it does not come off. As for the
side baby guard, be careful not to attach it in the
wrong orientation.
6-6-2. Replacing the Latch
(1) Remove the lid of the mattress platform tray.
Remove the four protective stickers and then remove
the four double sems screws (M4 x 10) with a
Phillips screwdriver.
Double sems screw (M4x10)
Double sems screw (M4x10)
(2) Remove the latch.
Remove the two compression coil springs inside the
latch and then remove the latch.
Compression
coil spring
(3) Reassembly: Reassemble in the reverse order of dis-
assembly.
