Atom Incu i 101 - Main Body Component Replacement

Disassembly and Replacement Procedures
DISASSEMBL
Y
AND REPLACEMENT
105
Pan head tapping screw (M3x10)
(2) Follow the same procedure mentioned above to re-
move the inner wall levers on the other admittance
panel.
(3) Reassembly: Reassemble in the reverse order of dis-
assembly.
6-2-10. Replacing the Inner Wall (for the Incu i )

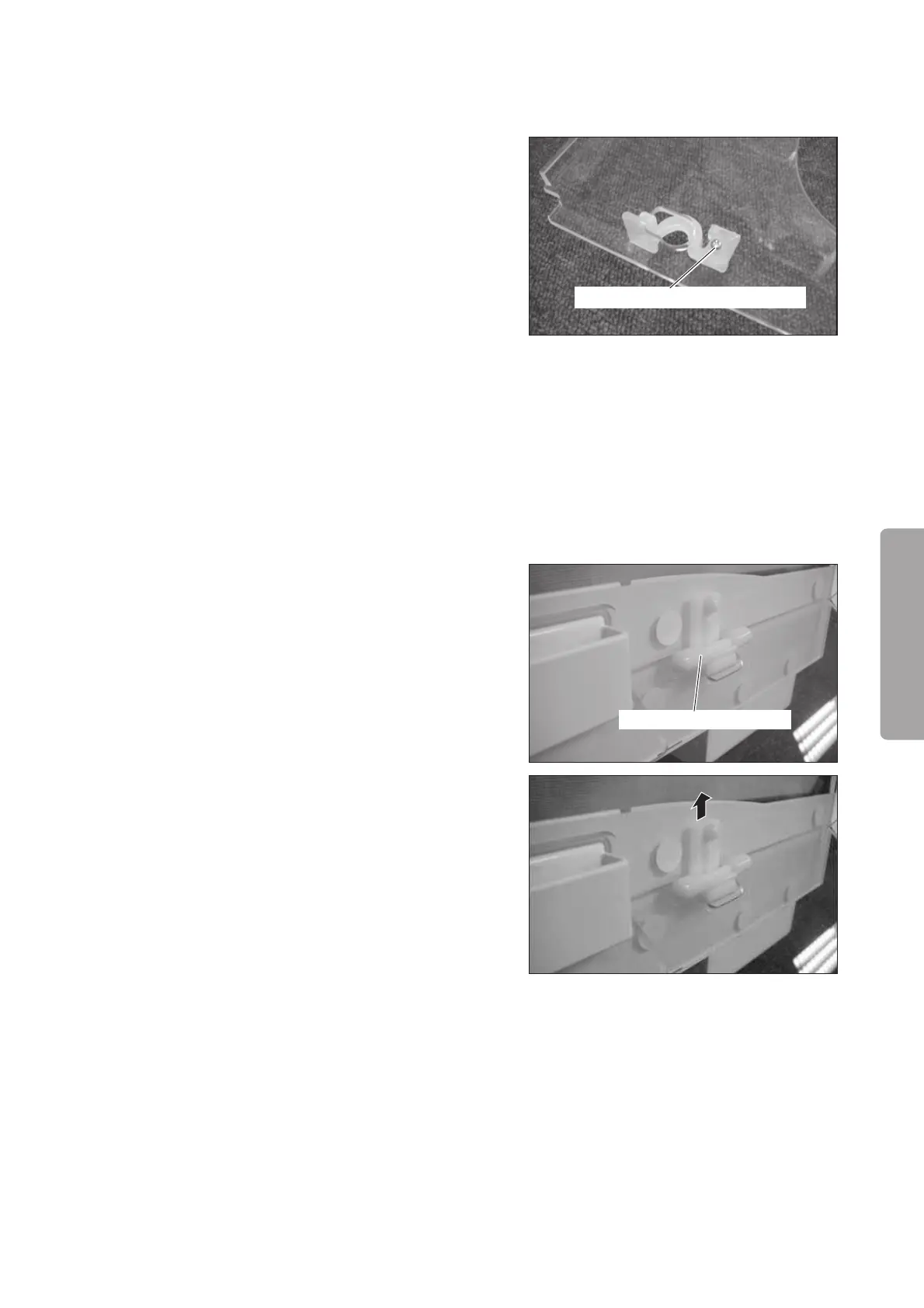

(1) Remove the inner wall shaft stopper.
Push down the snap fit tab with a flat head screw-
driver or some other appropriate instrument and
remove the inner wall shaft stopper (on both sides
of the inner wall).
Inner wall shaft stopper
(2) Remove the inner wall.
Remove the inner wall levers on both sides of the
inner wall. Slide the inner wall and remove it.
(3) Follow the same procedure mentioned above to re-
move the other inner wall.
(4) Reassembly: Reassemble in the reverse order of dis-
assembly.
6-2-9. Replacing the Inner Wall Lever R/L
(1) Remove the inner wall lever.
Remove the pan head tapping screw (M3 x 10) with
a Phillips screwdriver.
Slide the inner wall lever from the admittance panel
and remove it.
