Disassembly and Replacement Procedures
DISASSEMBL
Y
AND REPLACEMENT
103

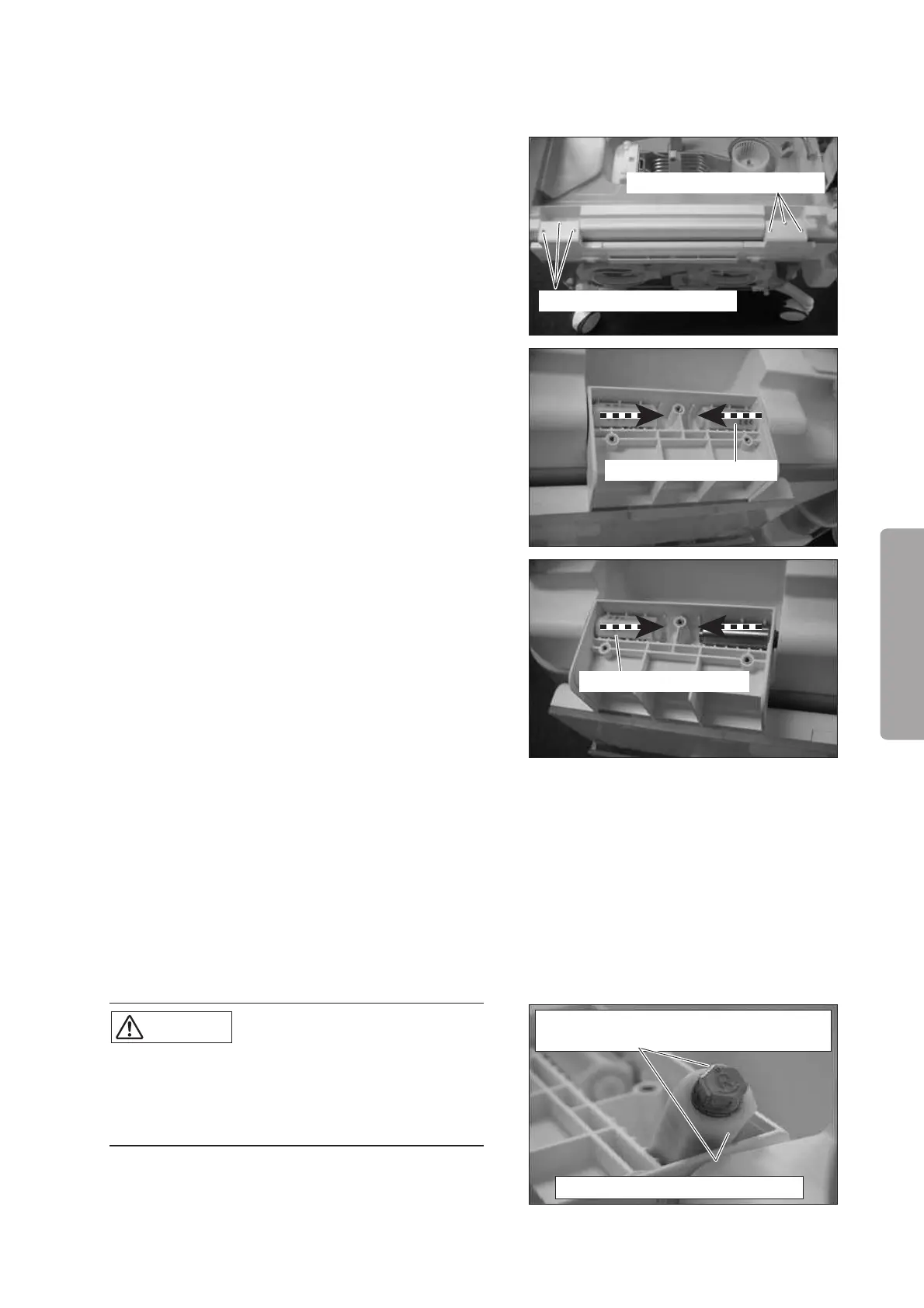

6-2-6. Replacing the Admittance Panel Hinge (with X-ray Cassette Tray Door)
(1) Remove the admittance panel hinge cover.
Remove the protective stickers affixed to the admit-
tance panel hinge cover and then remove the six
double sems screws (M3 x 10) with a Phillips screw-
driver.
Double sems screw (M3x10)
Double sems screw (M3x10)
Rotary damper (15kg) R
Rotary damper (15kg) L
(2) Remove the rotary dampers (15kg) R/L and the ro-
tary shaft of the admittance panel.
Slide horizontally the rotary dampers (15kg) R and
L inside the admittance panel hinge R on your right
and remove them from their bearings.
Slide horizontally the rotary damper (15kg) L and
the rotary shaft of the admittance panel inside the
admittance panel hinge L on your left and remove
them from their bearings.
(3) Remove the admittance panel hinge (with X-ray cas-
sette tray door).
See (1) in “6-2-5. Replacing the Admittance Panel
Assembly.”
(4) Follow the same procedure mentioned above to re-
move the admittance panel hinges on the other ad-
mittance panel.
(5) Reassembly: Reassemble in the reverse order of dis-
assembly.
CAUTION
<Bear in mind the following point when attaching
the rotary dampers (15kg) R/L>
쎲 Before attaching a new rotary damper, be sure to
turn the rotary shaft 180 degrees.
Tu rn the rotary shaft 180 degrees in such a way that the
dot (
●
) is directly on the opposite side of the notch.
Then insert the rotary shaft into the bearing.
To Next Page
