Disassembly and Replacement Procedures
130
6-5. Control Panel
6-5-1. Replacing the Arm for Mounting the Function Rail

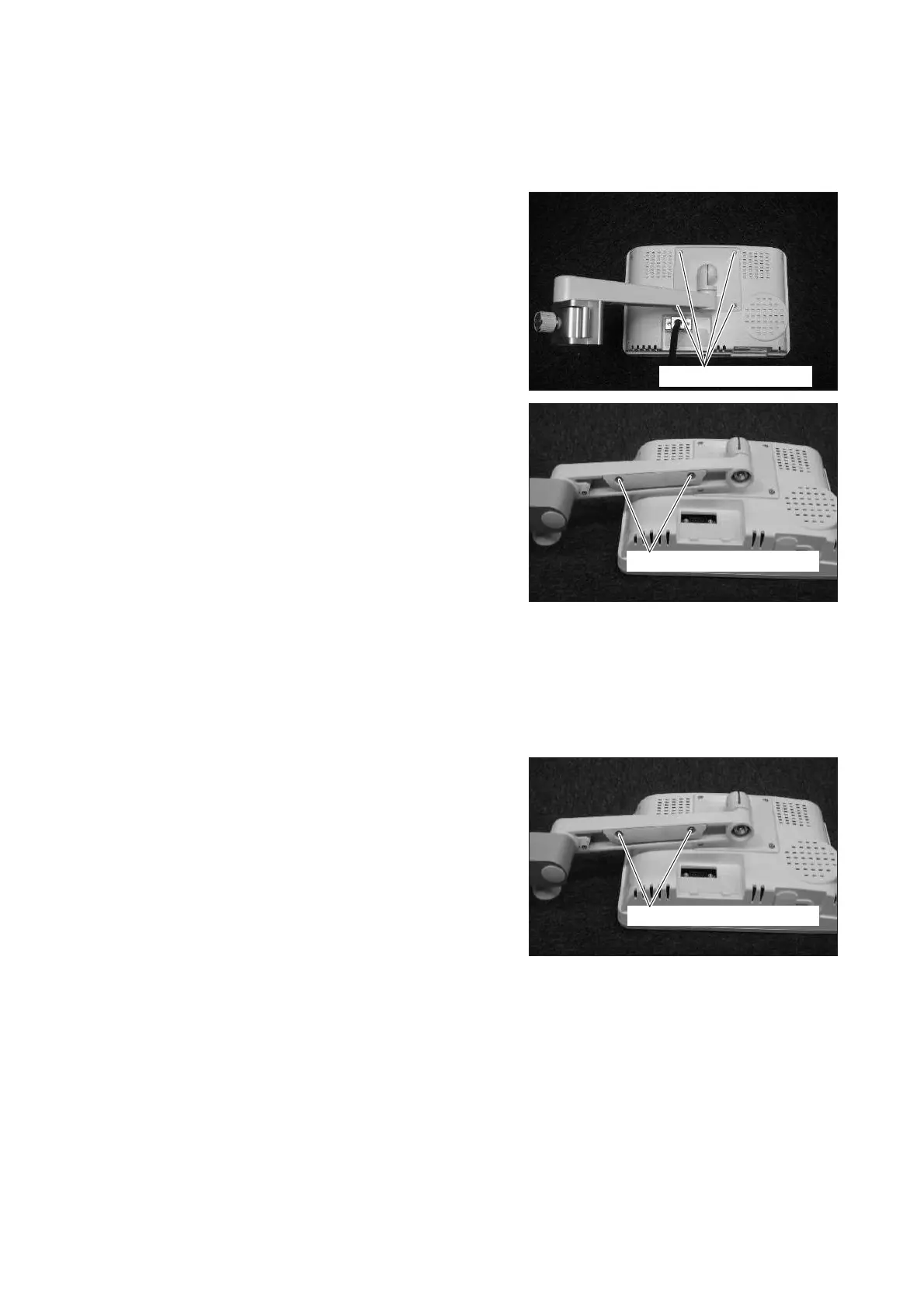

(1) Remove the screws fixing the control panel and the
arm.
Remove the four sems screws (M3 x 8) with a
Phillips screwdriver.
Sems screw (M3x8)
(2) Remove the screws fixing the cable guide.
Remove the two double sems screws (M3 x 8) with
a Phillips screwdriver.
Double sems screw (M3x8)
(3) Reassembly: Reassemble in the reverse order of dis-
assembly.
6-5-2. Replacing the Cable Guide
(1) Remove the screws fixing the cable guide.
Remove the two double sems screws (M3 x 8) with
a Phillips screwdriver.
Double sems screw (M3x8)
(2) Reassembly: Reassemble in the reverse order of dis-
assembly.
To Next Page
