Atom Incu i 101 - Replacing the Alarm Lamp Board; Replacing the Power Indicator Board

Disassembly and Replacement Procedures
DISASSEMBL
Y
AND REPLACEMENT
135

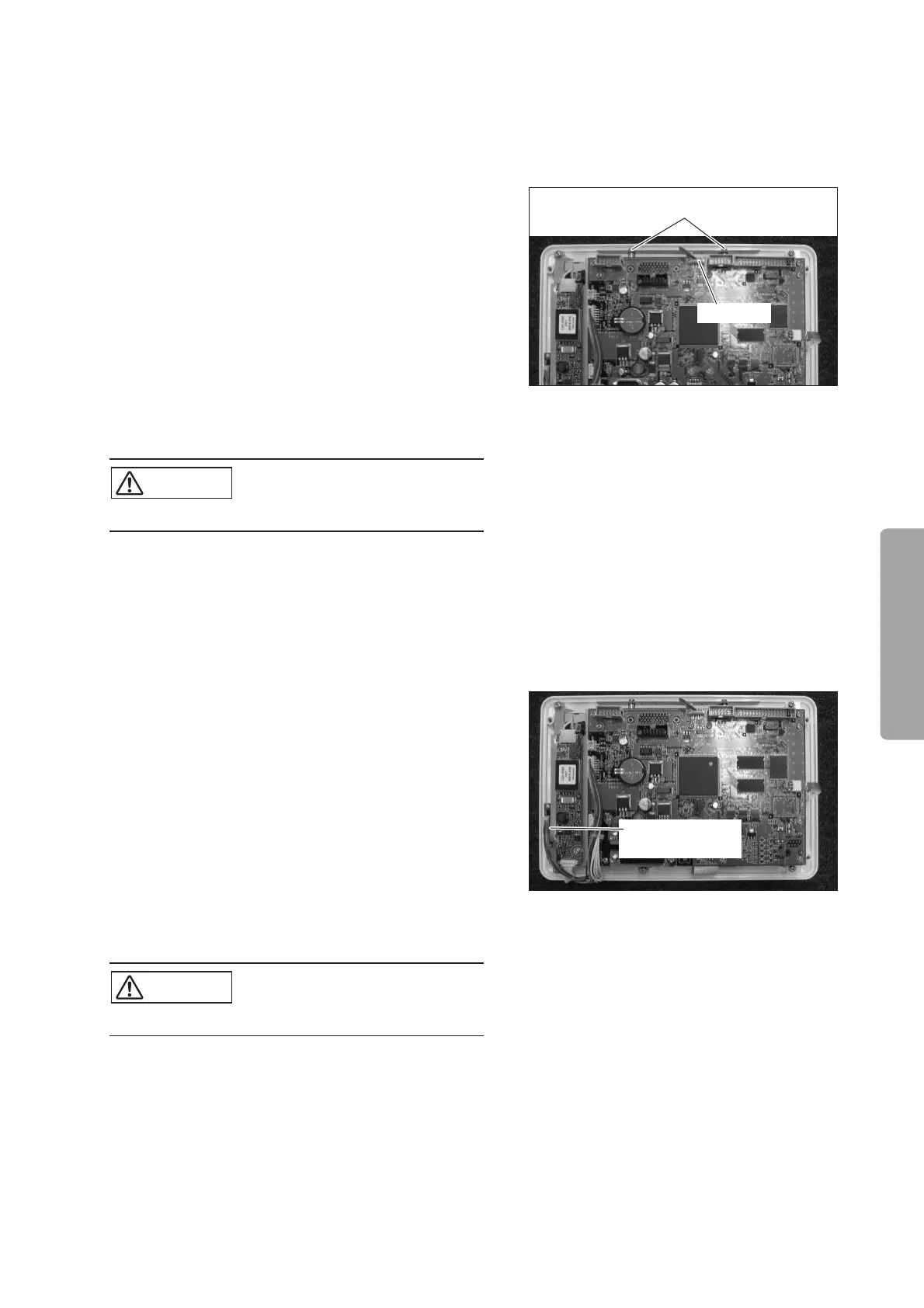

6-5-7. Replacing the Alarm Lamp Board
(1) Remove the rear panel.
See (1) ~ (2) in “6-5-3. Replacing the Front Panel.”
(2) Remove the alarm lamp board.
Remove the two sems screws (M3 x 8) with a Phillips
screwdriver. Remove the connector from the alarm
lamp board.
Sems screw (M3x8)
Connector
(3) Reassembly: Reassemble in the reverse order of dis-
assembly.
CAUTION
쎲 Take care not to get the cable caught.
6-5-8. Replacing the Power Indicator Board
(1) Remove the rear panel.
See (1) ~ (2) in “6-5-3. Replacing the Front Panel.”
(2) Remove the power indicator board.
Remove the connector from the power indicator
board.
Power indicator
board assembly
(3) Reassembly: Reassemble in the reverse order of dis-
assembly.
CAUTION
쎲 Take care not to get the cable caught.
