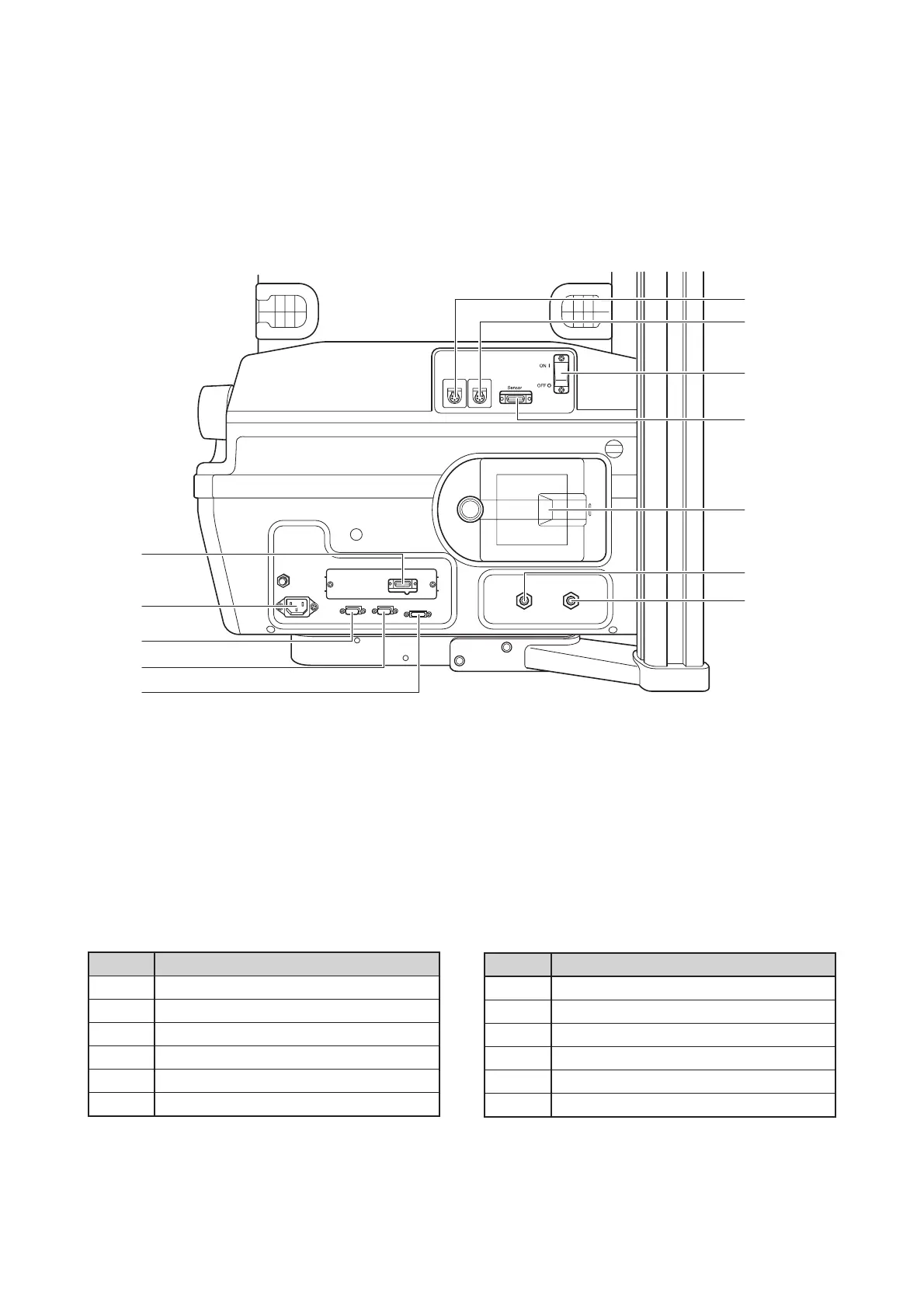

Parts Identification
14
쐽 Rear
No.
!7
!8
!9
@0
@1
@2
Name
Skin temperature probe connecting port 1
Skin temperature probe connecting port 2
Power switch
Connector for the sensor module
Filter cover
Oxygen supply port 1
No.
@3
@4
@5
@6
@7
@8
Name
Oxygen supply port 2
Connector for the weight monitor
Connector for the control panel
Connector for the Power Pack i (UPS)
Power cord inlet
Connector for SpO2
@2
@0
!9
@3
@1
!8
@8
@6
@5
@4
@7
!7
Note: @3 Oxygen supply port 2 is available only on the unit equipped with the oxygen controller.
@8 Connector for SpO2 is optionally available.
