Parts Identification
34
Description

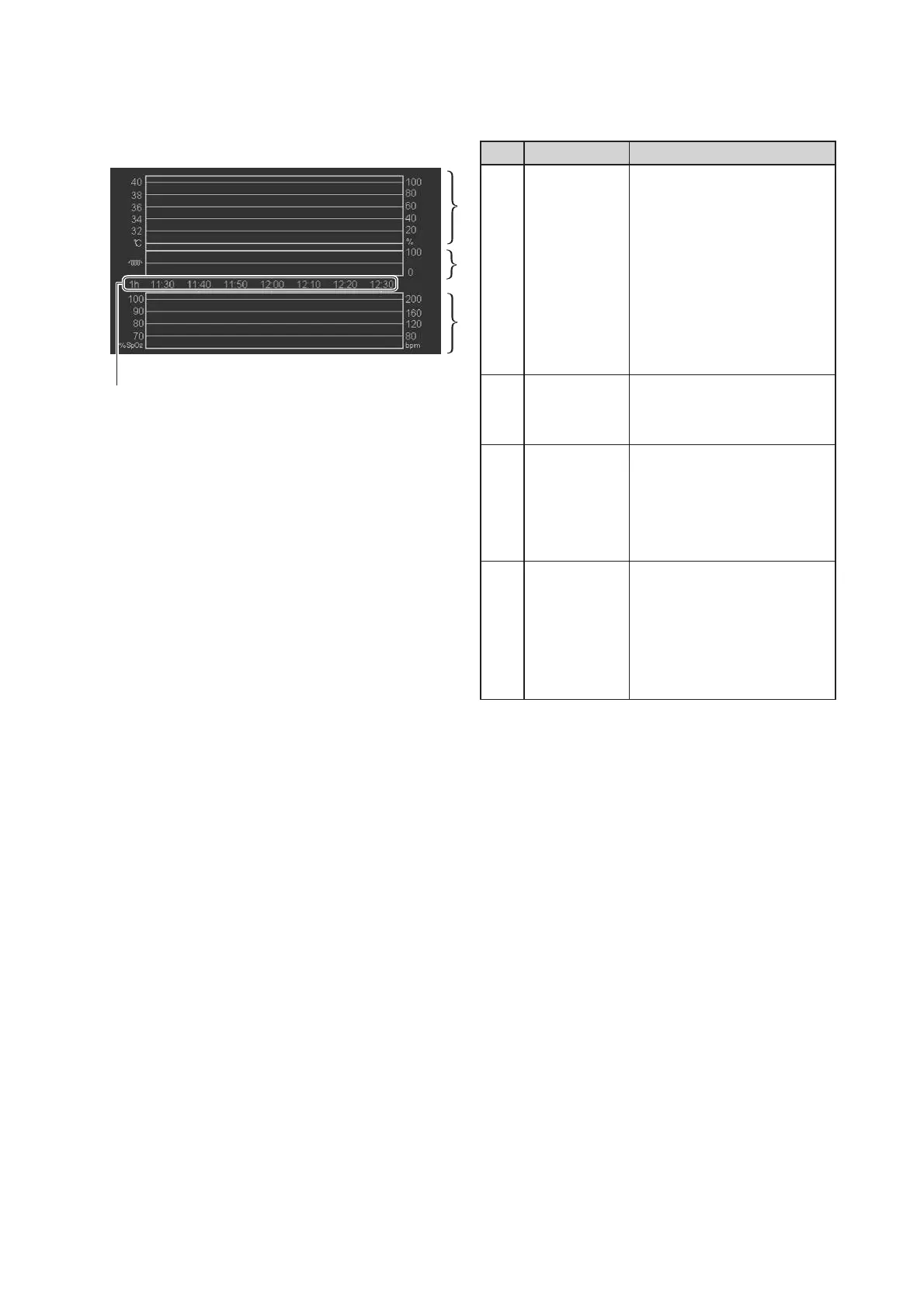

A temperature scale (the incu-
bator air temperature, the skin
temperature 1 and the skin
temperature 2) is provided on
the left axis and a % scale (the
relative humidity and the oxy-
gen concentration) is provided
on the right axis to display a
trend graph of each item.
Displays a trend graph of
changes in the heater output
(the main heater).
A %SpO2 scale is provided on
the left axis and a pulse rate
scale (bpm) is provided on the
right axis to display a trend
graph of each item.
Touch this area to change the
time base.
The current trend period (the
period of the trend graphs on
the screen) is displayed at the
left end.
No.
A
B
C
D
Name
Trend 1
Trend 2
Trend 3
Time base
area
D
A
B
C
[Trend area]
