Disassembly and Replacement Procedures
96

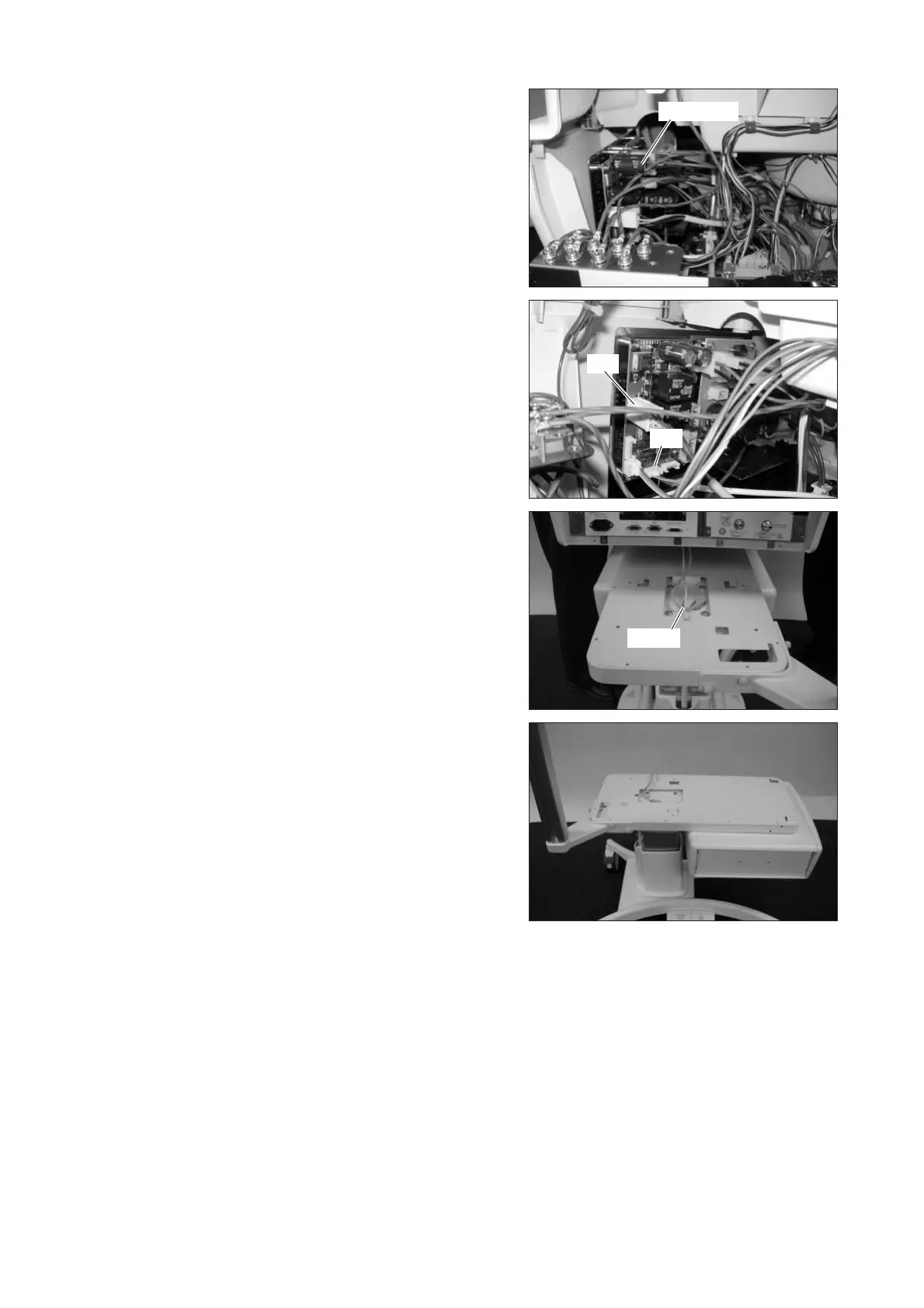

(5) Pull out the power box.
Power box
(6) Remove the wiring.
Remove the connectors JQ7 and JQ8 from the height
adjustment drive board.
For details, see “[8] Wiring diagram.”
JQ8
JQ7
(7) Tilt the main body and pull out the cables through
the hole in the bottom of the main body.
Cable
(8) Lift up the main body and remove it from the HL
stand.
(9) Reassembly: Reassemble in the reverse order of dis-
assembly.
