3.1 Getting Acquainted with the Web Interface
The figure below displays the general layout of the Graphical User Interface (GUI) of the
Web interface:

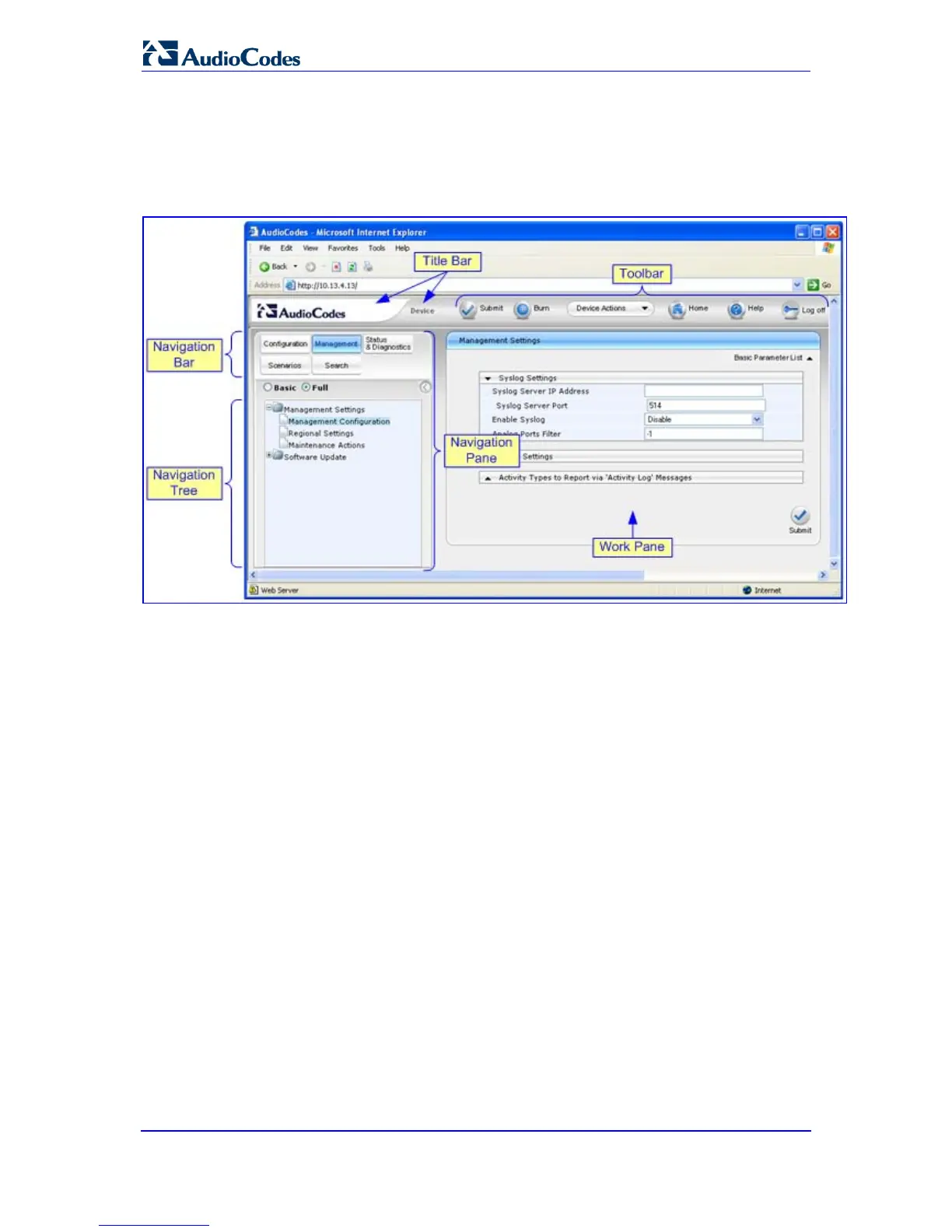

Figure 3-1: Main Areas of the Web Interface GUI
The Web GUI is composed of the following main areas:
Title bar: Displays the corporate logo and product name. For replacing the logo with
another image or text, refer to ''Replacing the Corporate Logo'' 48 on page . For
customizing the product name, refer to ''Customizing the Product Name'' 50 on page .
Toolbar: Provides frequently required command buttons for configuration (refer to
''Toolbar'' 29 on page ).
Navigation Pane:
•
Consists of the following areas:
Navigation bar: Provides tabs for accessing the configuration menus (refer to
''Navigation Tree'' 30 on page ), creating a Scenario (refer to ''Scenarios''
41
on page
), and searching ini file parameters that have corresponding Web interface
parameters (refer to ''Searching for Configuration Parameters'' 39 on page ).
• Navigation tree:
Displays the elements pertaining to the tab selected on the
Navigation bar (tree-like structure of the configuration menus, Scenario Steps, or
Search engine) .
Work pane: Displays configuration pages where all configuration is performed (refer to
''Working with Configuration Pages'' 32 on page ).
