SIP User's Manual 68 Document #: LTRT-65412
MP-11x & MP-124
3.3.1.5 Configuring the QoS Settings
The 'QoS Settings' page is used for configuring the Quality of Service (QoS) parameters.
This page allows you to assign VLAN priorities (IEEE 802.1p) and Differentiated Services
(DiffServ) for the supported Class of Service (CoS). For a detailed description of the
parameters appearing on this page, refer to ''Networking Parameters'' on page 213. For
detailed information on IP QoS using DiffServ, refer to ''IP QoS via Differentiated Services
(DiffServ)'' on page 454
 To configure QoS:
1. Open the 'QoS Settings' page (Configuration tab > Network Settings menu > QoS
Settings

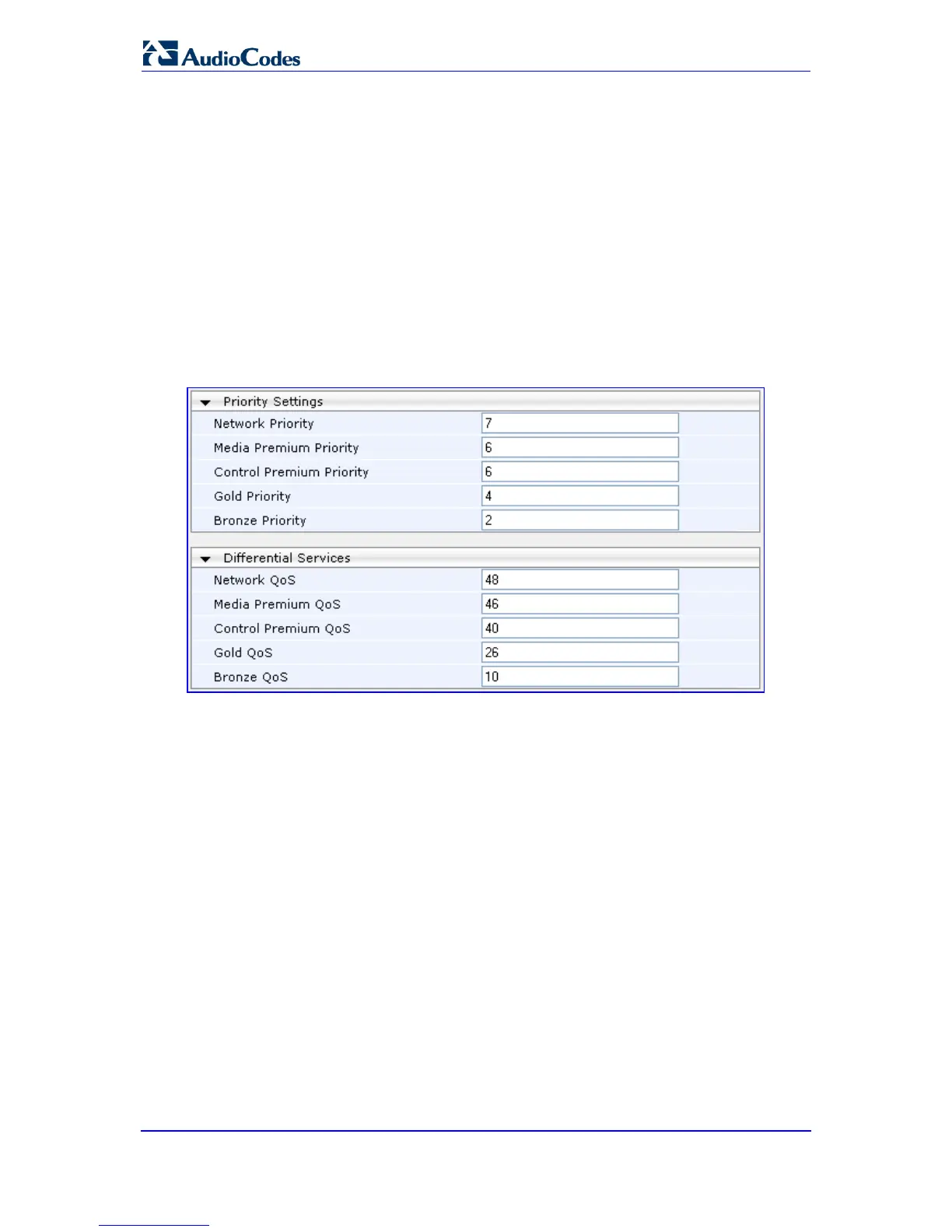

Figure 3-41: QoS Settings Page
page item).
2. Configure the QoS parameters as required.
3. Click the Submit
4. To save the changes to flash memory, refer to ''
button to save your changes.
Saving Configuration'' 167 on page .
3.3.2 Media Settings
The Media Settings menu allows you to configure the device's channel parameters. This
menu contains the following items:
 Voice Settings (refer to ''Configuring the Voice Settings'' 69 on page )
 Fax/Modem/CID Settings (refer to ''Configuring the Fax/Modem/CID Settings''
69
on page
)
 RTP/RTCP Settings (refer to ''Configuring the RTP/RTCP Settings'' 70 on page )
 General Media Settings (refer to ''Configuring the General Media Settings'' 71 on page )

 Media Security (refer to ''
Hook-Flash Settings (refer to Configuring the Hook-Flash Settings on page 72)
Configuring Media Security'' 72 on page )
