Installing the MAPD
2-28 Issue 3 May 2002

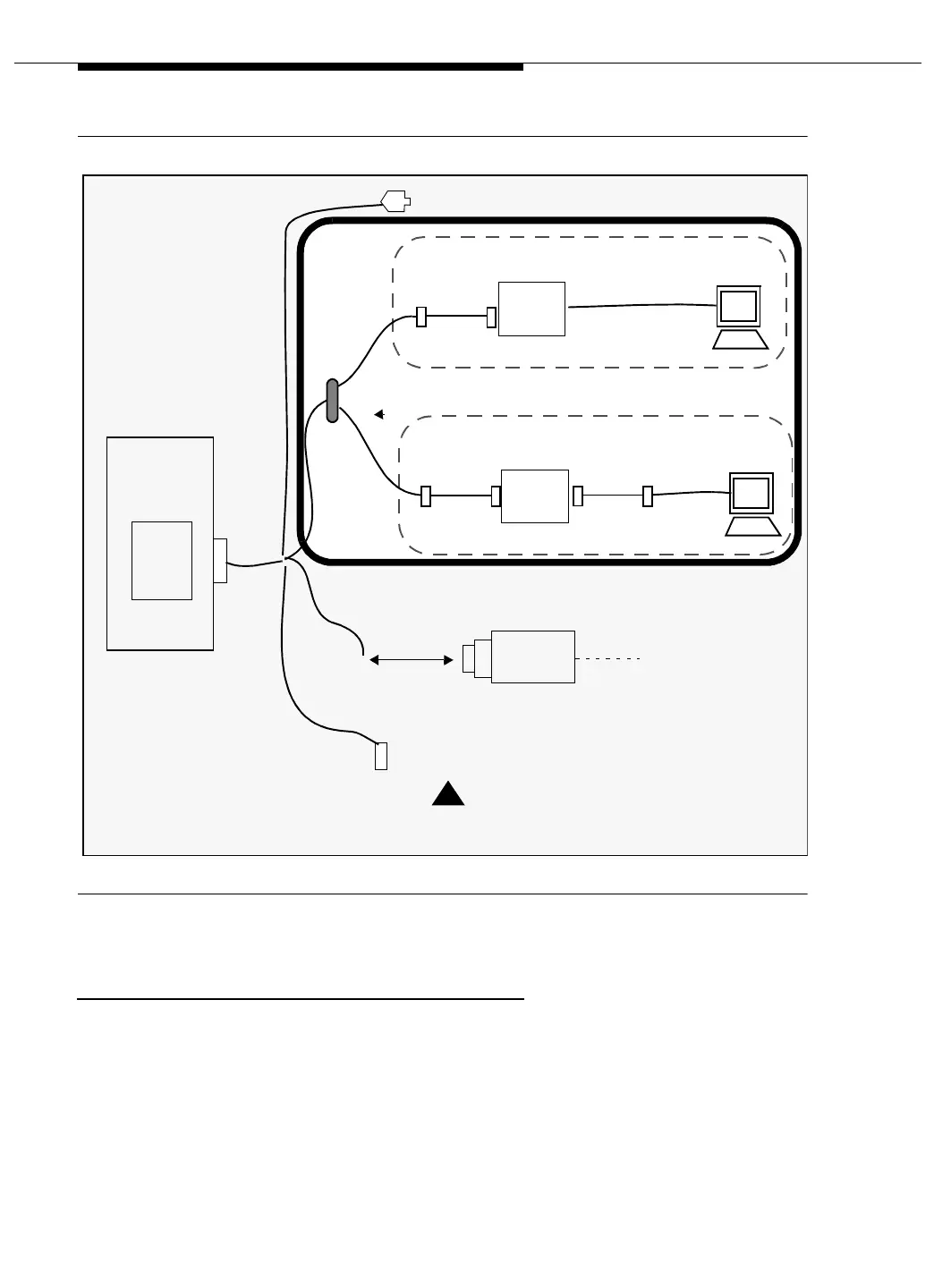

Figure 2-14. Installing a Terminal via Direct Connection in a DC Switch
Installation Procedure for a Terminal
Using a Direct Connection to a DC Switch
1. If you are installing a new terminal, unpack it according to the instructions
supplied with the terminal.
2. Place the terminal on a suitable table within 15 feet of the switch cabinet if
you have a 20-foot ED1E434-11G311 cable, or within 45 feet if you have a
50-foot ED1E434-11G311 cable, and connect the keyboard.
RJ45 to LAN
DCIU (Reserved for future use)
MAPD
MAPD
Board
DTE
DCE
DTE TERMINAL CONNECTION
Group
311
DCE TERMINAL CONNECTION
Group 311 Cable
DCE
Maint/
Group 311
Cable
Cable
Cable
External
Modem must be nongrounded (that is,
the modem must be isolated from the ground).
!
CAUTION:
*
Modem*
Tip/
Ring
116A
Avaya Services Remote Access
Port A
DC Switch
DTE
RS232
ADMIN/PORT B
Null Modem
H600-258-1
Null Modem
H600-258-1
Null Modem
H600-258-1
DTE
DCE
116A
