Installing the MAPD
2-32 Issue 3 May 2002
Installation: Task 4c — Install
a Terminal Using Modem Connections
This task describes how to connect a terminal via a modem to Admin/Port B of the
MAPD. Refer to Figure 2-16 (ignore the shaded area of the figure), while you
perform this task. To make sure the modems that you are installing are on the list
of supported peripherals, see Appendix B, ‘‘Worksheet B-1: Terminals/Modems.’’
NOTE:
This task can also be used for remote connection to the Maint/Port A.

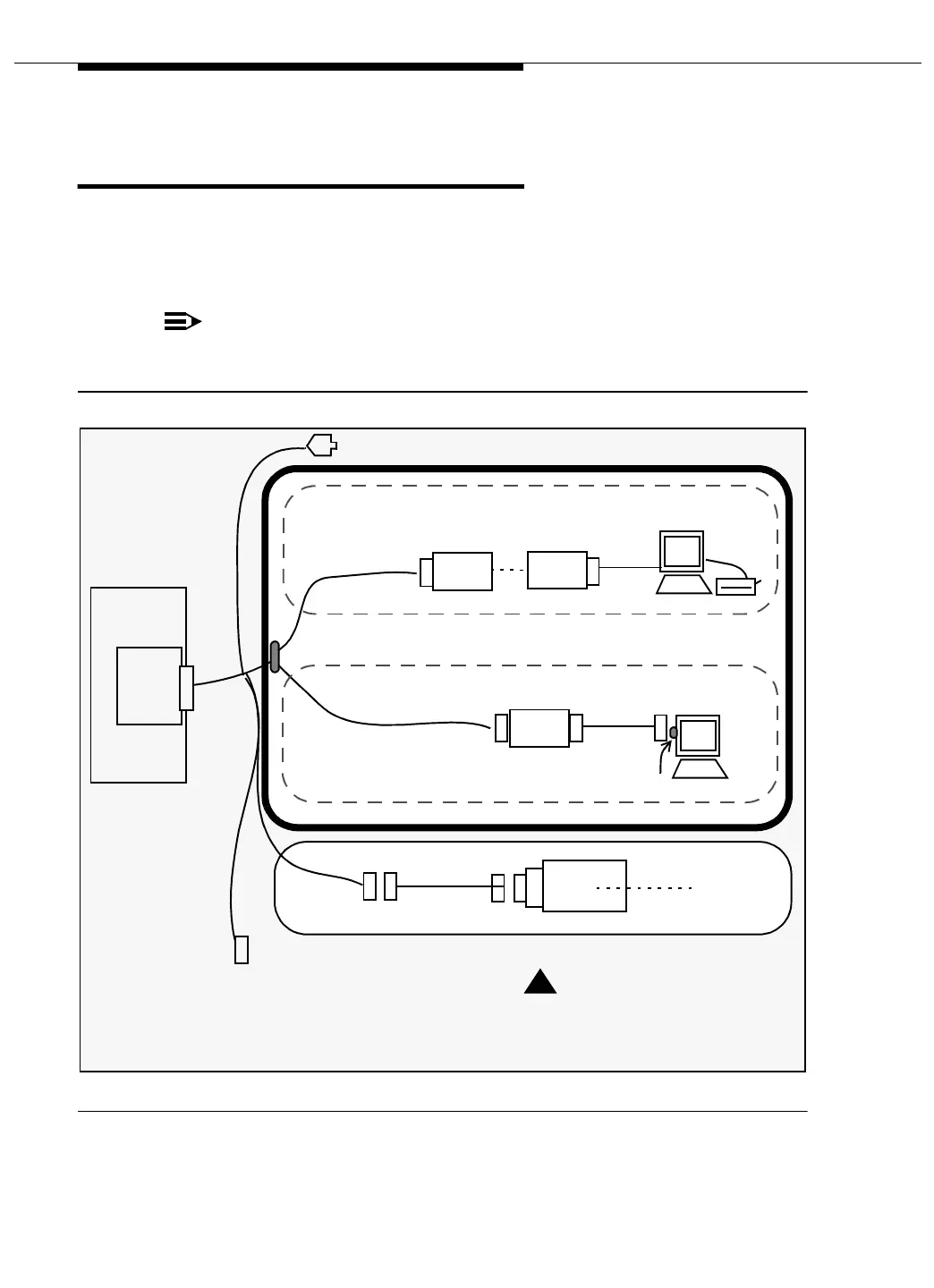

Figure 2-16. Connecting a terminal to the MAPD via Modem
Group 311 Cable
Maint/Port A
RJ45 to LAN
DCIU (Reserved for future use)
Switch
MAPD
Cable
MAPD
Board
Modem
Dial-up
Terminal
Modem
Tip/
Ring
Optional
RS232
Group 311
Cable
Modem*
Tip/
Ring
Avaya Remote Access
Modem must be nongrounded
!
CAUTION:
*
isolated from the ground).
(that is, the modem must be
External
Printer
H600-258-1
Null Modem
Group 311 Cable
DTE CONNECTION
Dial-up
Terminal
RS232
ADMIN/PORT B
DCE CONNECTION
DCE port on 715 BCT
Modem
