User’s Manual—SNAP™ 500 Gen 1 and Gen 2 31
Classification: Avery Dennison - Public

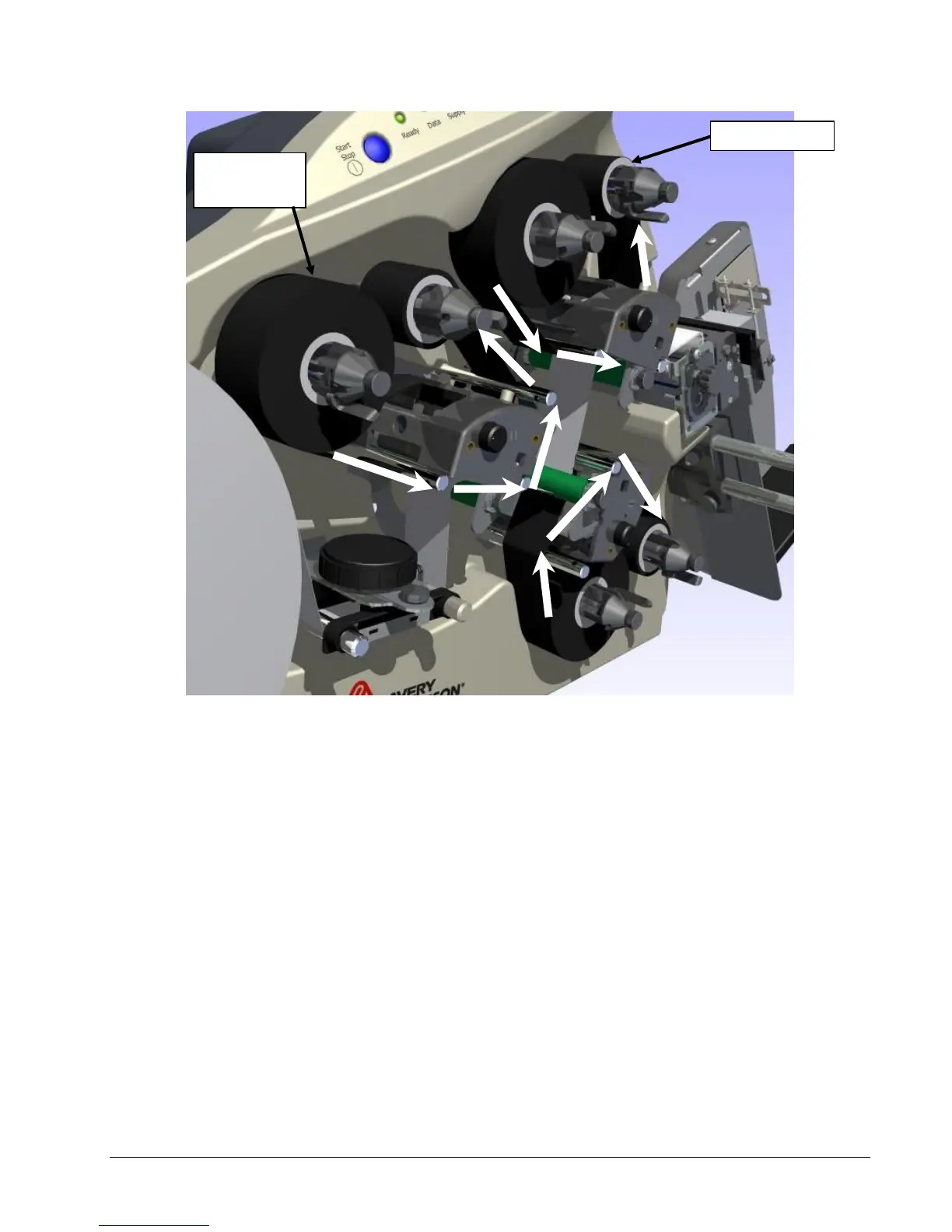

Figure 8: Upper and Lower Ink Supply and Print Stations – Loaded (Gen 2 shown)
4. Fasten the ink supply to the rewind core.
a. If you are using a new roll of ink, the leader you are advancing
through the machine already has adhesive on it. Press the leader
onto the rewind core until it sticks to the core.
b. If you are installing a partially used roll of ink, you must first attach a
small piece of transparent tape to the leading end of the ink roll.
Then, tape the end to the ink on the rewind core.
5. Wind the core for several turns to make sure the ink tracks flat as it is pulled
through the printer.
6. To remove an ink core from the arbor, depress the latch and slide the core
from the arbor. Save the empty core to be used as the next rewind core.
