7. Communication Ports: 2 RS232 and 2 Ethernet

8. Ethernet Switch: 4-port

9. Positioner Sensor Inputs: Digital and Analog

10. LNB Bias Tee and Tone Generator

11. Sensor Analog and Digital I/O Interfaces

The AAQ enclosure shown in figure 2.1.1 is generally mounted underneath the positioner AZ/EL

cover. Each connector on the enclosure has a wire harness to connect to positioner components.

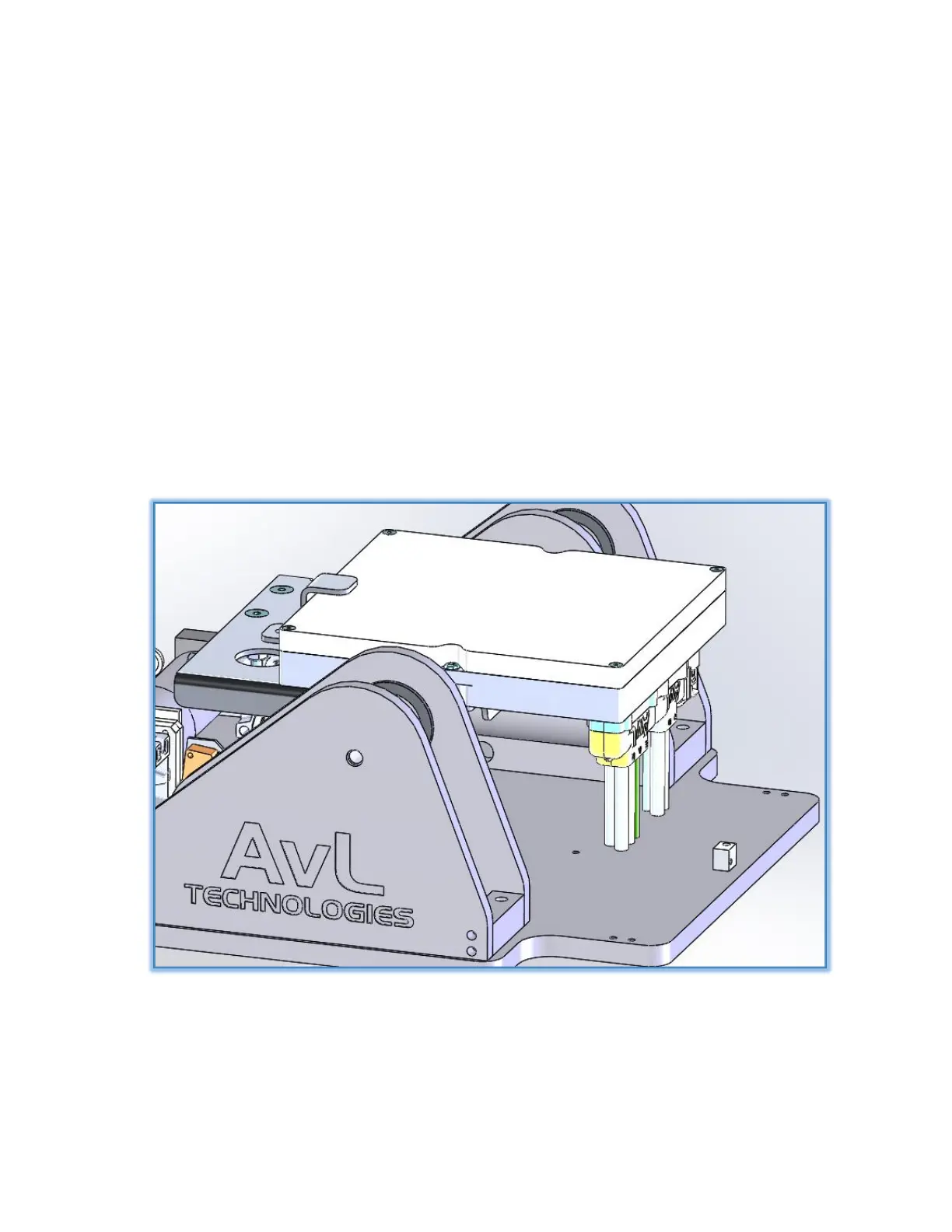

Figure 2.1.1 - AAQ Controller - Typical mounting in a positioner
