The System log tool allows the user to monitor the function commands and indications as reported by
the AAQ controller. This is typically used by AvL technical staff and is sometimes used for remote
troubleshooting.
4.4.8 Data Log
Main Window → View → Data Log

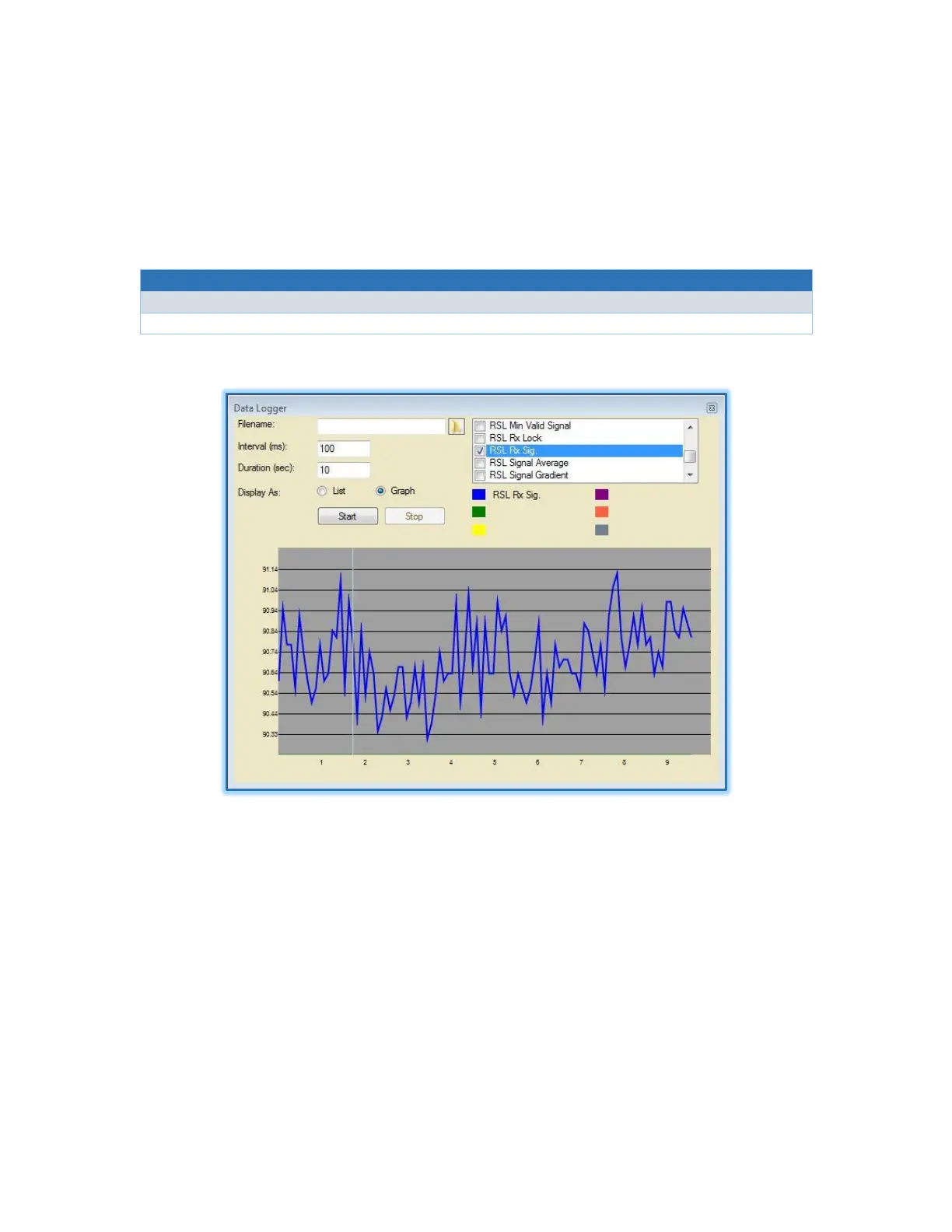

Figure 4.4.8 – Data Logger Example
The Data Logger window allows the user to plot up to six status variables over time. This can be used for
testing, troubleshooting and plotting operational data over time. The sampling interval as well as the
duration of the individual graph may be set to suit individual test requirements. These test samples may
be saved as a graph (shown) or as a list of values if needed.
The results of the test can also be saved under the filename of choice by clicking on the folder icon next
to “filename” and selecting both the name and location of the data file. The name will then show in the
textbox.
