AvL Technologies AAQ Antenna Controller - RIOM Software Update

AvL Proprietary and Confidential
Content is Subject to Change without Notice Page 48 of 195

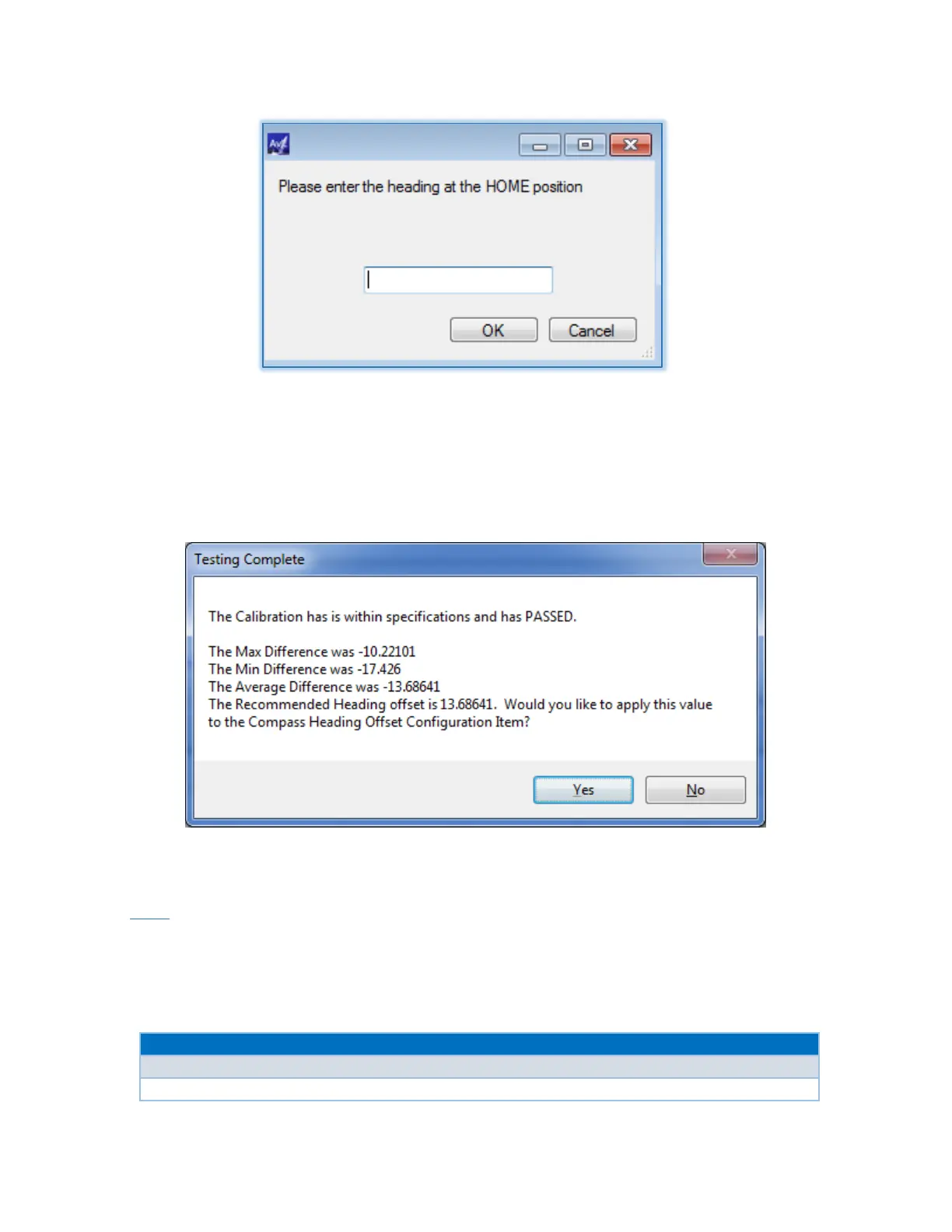

Figure 4.3.4.2b – Enter Heading
Once OK is selected the program will determine if the compass is within tolerance (+/- 10 degrees or
20 Peak-to-Peak). If the compass is within tolerance it will inform the user of the recommended
Heading offset and ask them if they wish to apply it to the configuration item. Apply the offset to
complete.
Figure 4.3.4.2c – Test Results
Note - If the program indicates that the compass is out of tolerance, repeat the
calibration process.
4.3.5 RIOM Software Update
Path
Main Window → File → RIOM Software Update
Level 4
