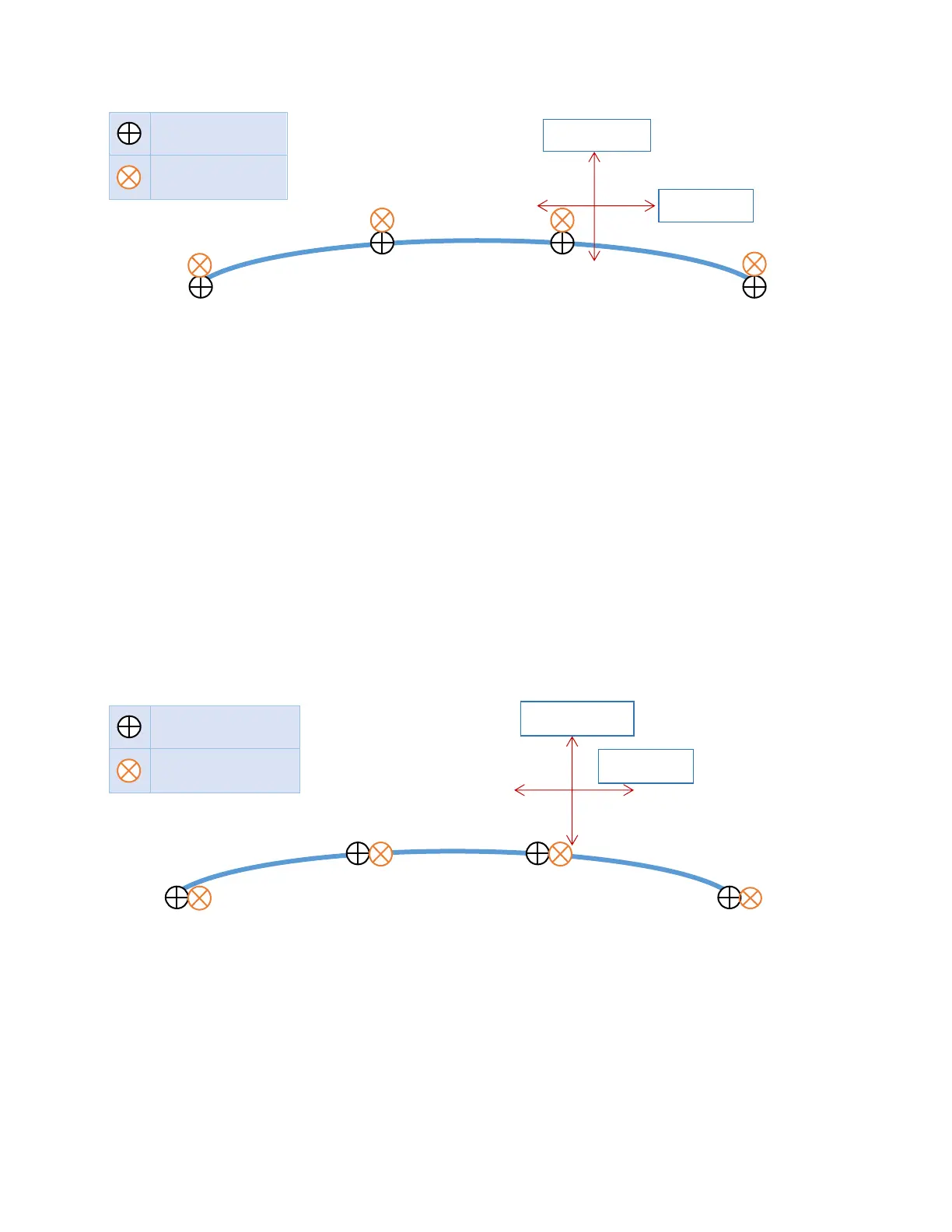

Figure 8.4 - Errors in the Elevation Calibration (El Offset)
WARNING - Anytime the “elevation offset” value is changed, the elevation limit switches
(UP, DN, and STOW) should be checked.
8.4.2 Azimuth Offset
If a consistent error in actual vs. predicted azimuth is observed, an offset in the compass may need to be
applied. The “Compass Heading” configuration item is located the “System Configuration” window located in
the View>Controller Configuration tab. Compass test and calibration tools are located in File > Calibration.
Figure 8.4.2 - Errors in Azimuth (Compass) Calibration
