4.4.4 DvB-S2 Control
Path
Main Window → View → DvB-S2 Control
Level 4

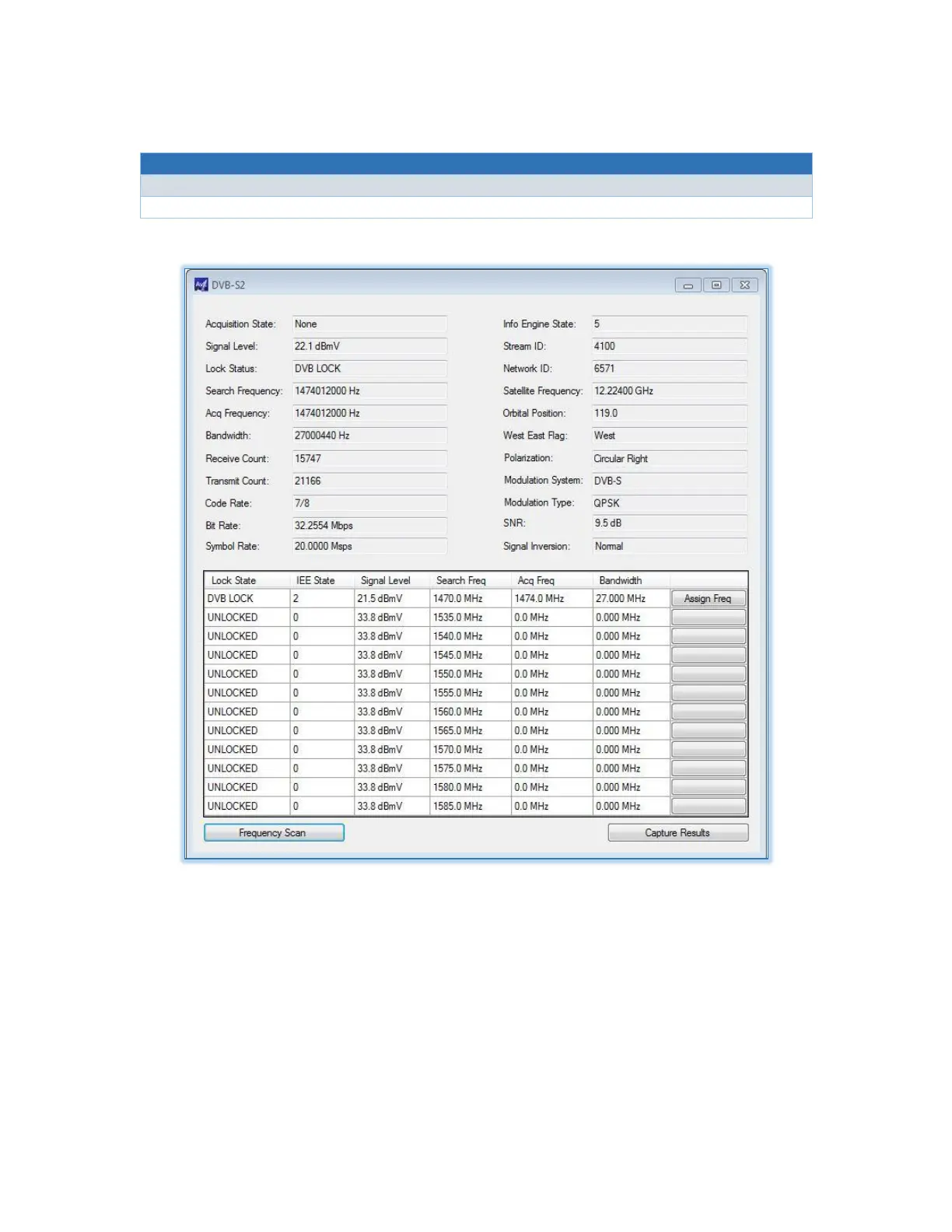

Figure 4.4.4 - DvB-S2 Control Window
The DvB-S2 control window allows full monitoring and captured carrier control of the AvL DvB
receiver. The DvB receiver option functional modes and GUI details are covered in Appendix H of
this User’s Manual.
