The Motor Status indicators inform the user of the direction of motor movement, limit conditions
reached, and safe move conditions reached. Each indicator represents a direction of movement
possible by a certain axis and is styled to be in that movement’s direction. When moving in that
direction the indicator will change to active (green) to indicate that the motor is moving in that
direction. The indicators also function as an indicator to the operator that a condition has been
reached.

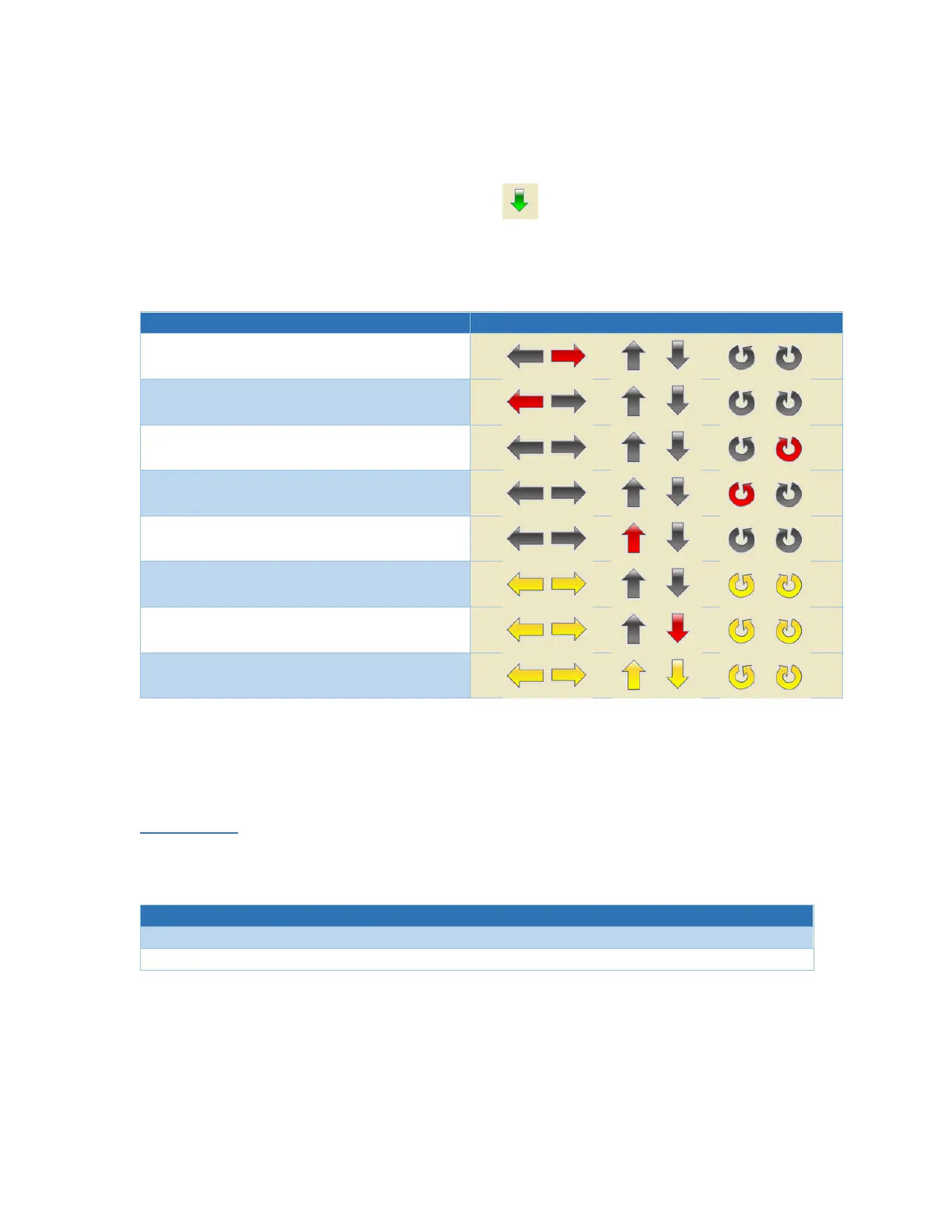

Motor Status LEDs Displayed
Azimuth Clockwise Limit Reached
Azimuth Counter Clockwise Limit Reached
Pol. Clockwise Limit Reached
Pol. Counter Clockwise Limit Reached
Elevation Up Limit Reached
Elevation is Below the Down Limit
Elevation is in the Stow Position /
Elevation Limit Reached & Wings Open
Error Condition: Check Alarms
Table 4.2.9c - Motor Status Indicator Conditions
4.3 File Menu
4.3.1 Settings
Main Window → File → Settings
Simple View: Level 0 / Advanced View: Level 1
