4.4.5 LNB Control
Path
Main Window → View → LNB Control
Level 4

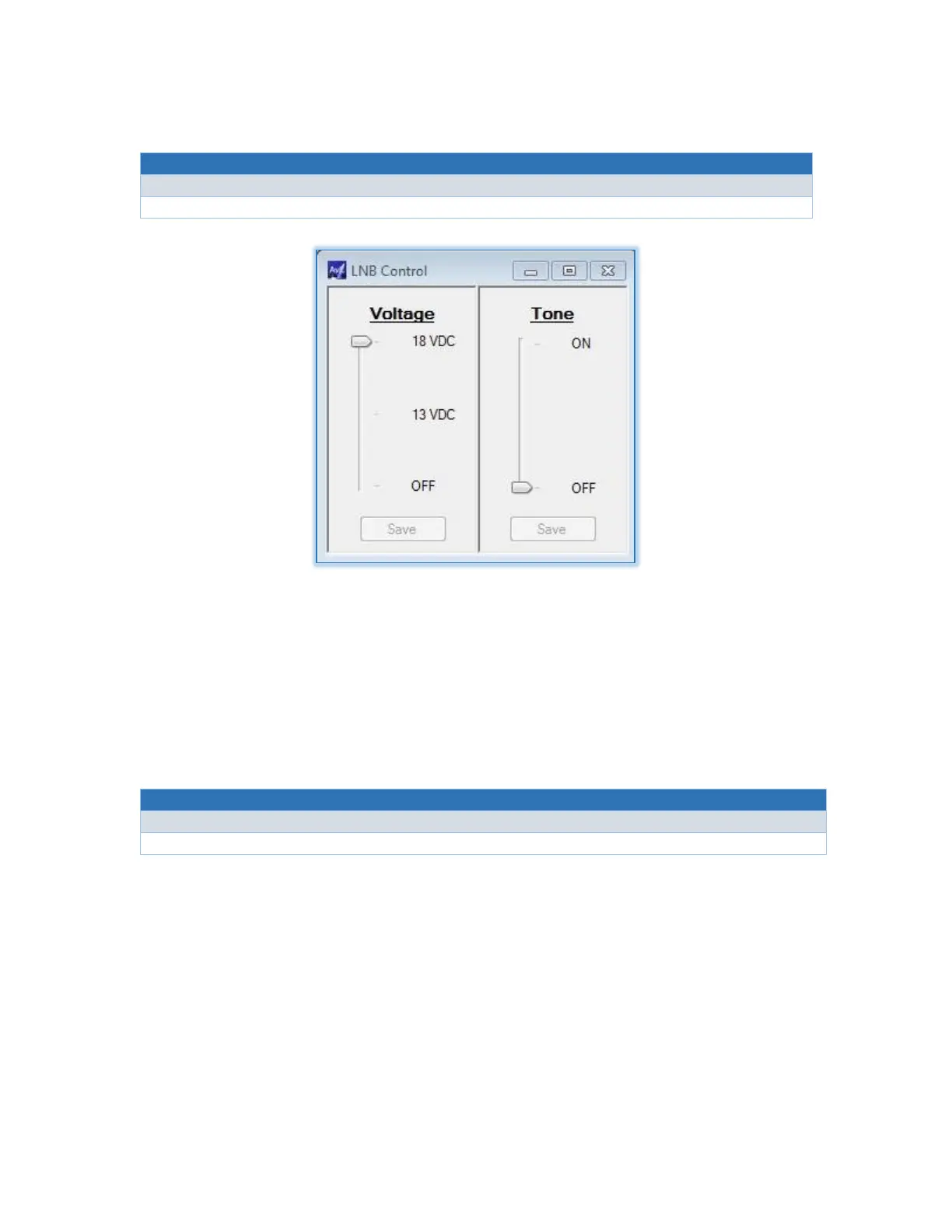

Figure 4.4.5 – LNB Control
As many different types of LNBs are supplied with AvL antenna systems, the LNB Control window
allows the user to control either the supply voltage or control tone used by the device. Supply
voltage may be changed to match that required by a single band LNB or adjusted to change band as
required by some multiband systems.
4.4.6 Satellite List
Path
Main Window → View → Satellite List
Level 0
The Satellite List Window is populated by a list which is maintained on board the ACU controller. To add
a satellite to the Profile “target selection” pane, select the checkbox of the satellite to be added, then
click the ‘Save Satellite List’ button. Satellites should be added for target selection before creating an
associated profile for simplicity. Unchecking the checkbox will remove the satellite from the target
selection list. Remember to save all changes.
