5.9.6 Adjusting Motion Limits
For this example, we will be installing new equipment on our “vehicle mounted system”. The
original setting for maximum Elevation position (90 degrees) is now unacceptable to prevent
mechanical interference. The following parameter will be updated:
- User El Up Limit (under core parameters, level 4)

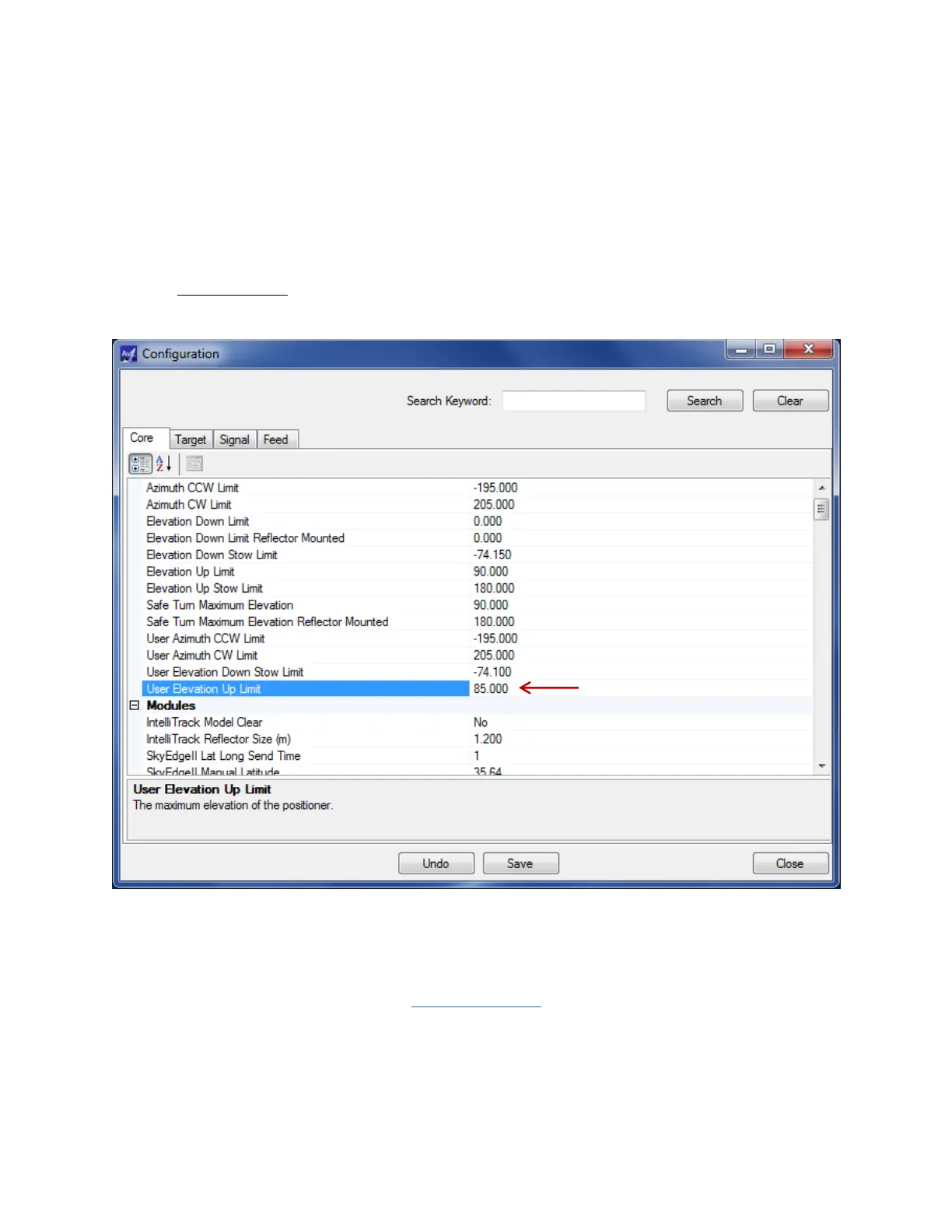

Figure 5.9.6 – User El Up Limit Parameter
Remember to click Save after entering the new value to your Profile.
~IMPORTANT~
Since positioner Limits are of a critical nature for the safety of any and all personnel
that may be near to the antenna system, it is highly recommended that any change to
these limits be verified by a second operator who can observe the antenna to ensure
that the intended changes function correctly.
