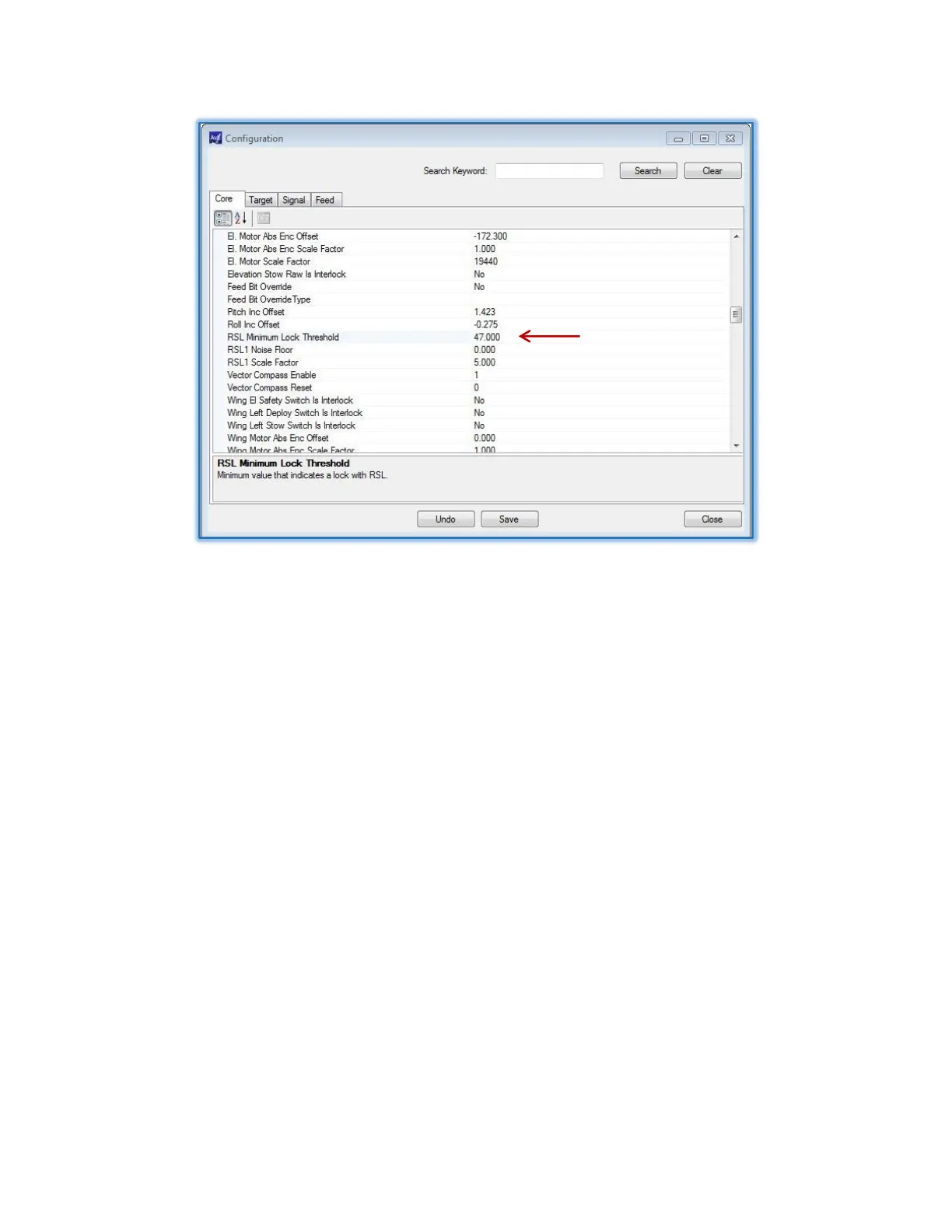

Figure 5.9.8b – RSL Min Lock Threshold
Once the new value is entered to the location shown in the above figure, click “Save” to write the
changes to your Profile.
5.10 Adding a Reference Satellite
Adding a reference satellite (ref sat) to the acquisition process, corrects for any heading errors
that may exist. The ref sat process performs an acquisition on a known satellite that is low on
the arc. The compass heading is then corrected and the antenna can move directly to the target
satellite’s location.
Two reference satellites may be associated with a given target profile.
