5.9.3 Add Profile
For this example, the following name has been chosen

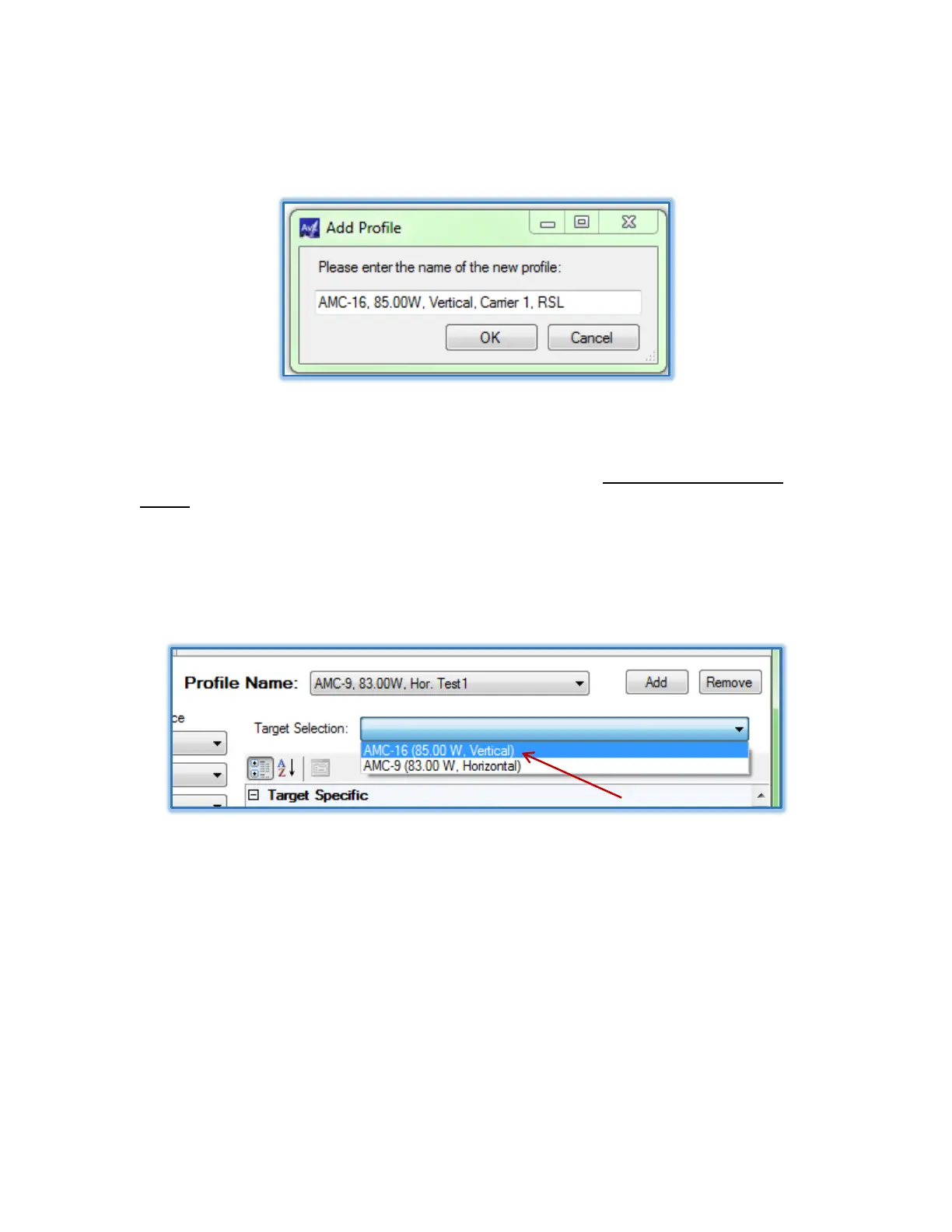

Figure 5.9.3 – Add Profile name
Once the name is chosen and you click on OK, your new profile is created with all parameters
“copied forward”. We are ready to update some basic parameters to match your new Target
choice:
5.9.4 Select Target
Keeping in mind that the profile added so far is just a name, use dropdown box under the Profile
name to add the new “target satellite” which was added in 5.9.1:
Figure 5.9.4a – Select Profile Target
Once the Target Satellite has been selected, you can see the changes in Longitude and Polarization
have been automatically made in the “Target Parameter list”.
