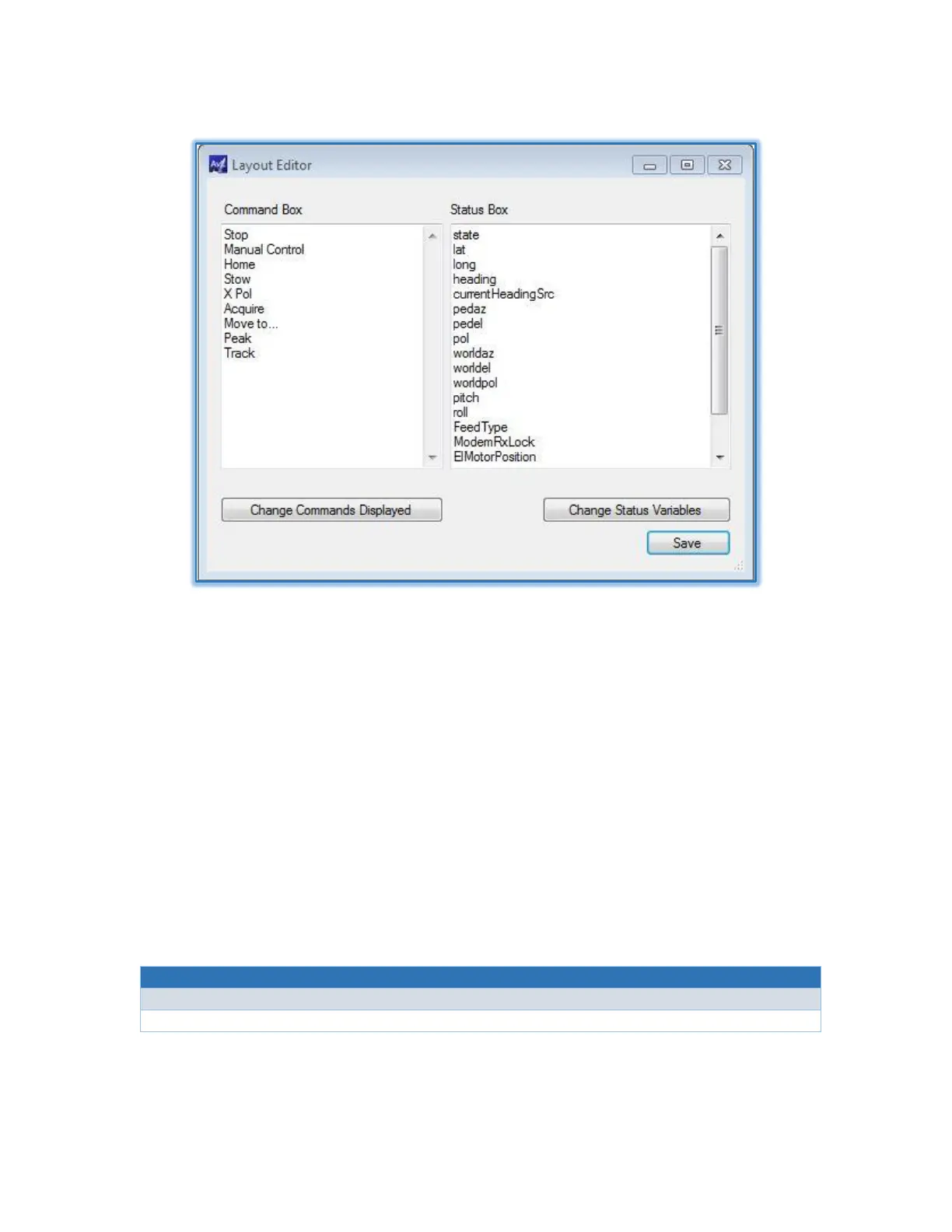

Figure 4.3.7 – Layout Editor
The Layout Editor lists the current commands and status outputs being displayed in the main window.
The “Change Commands Displayed” function is reserved for Engineering Login only and does not
function under user or integrator levels.
To change the status variables displayed in the Status box on the main window, left-click the
‘Change Status Variables’ button. The Status Variable Select Window will then allow the user to
choose the status variables to display in the Status box on the main window. Once all changes have
been made, left-click the ‘Save’ button to accept the changes. The application will now apply the
changes the next time the application launches.
4.3.8 Change Status Variables Displayed
Path
Main Window → File → Edit layout, Change Status Variables
Level 4
