5.2 Basic Connections
Connecting Your Equipment
A
B
C
D
E
F
G
H
I

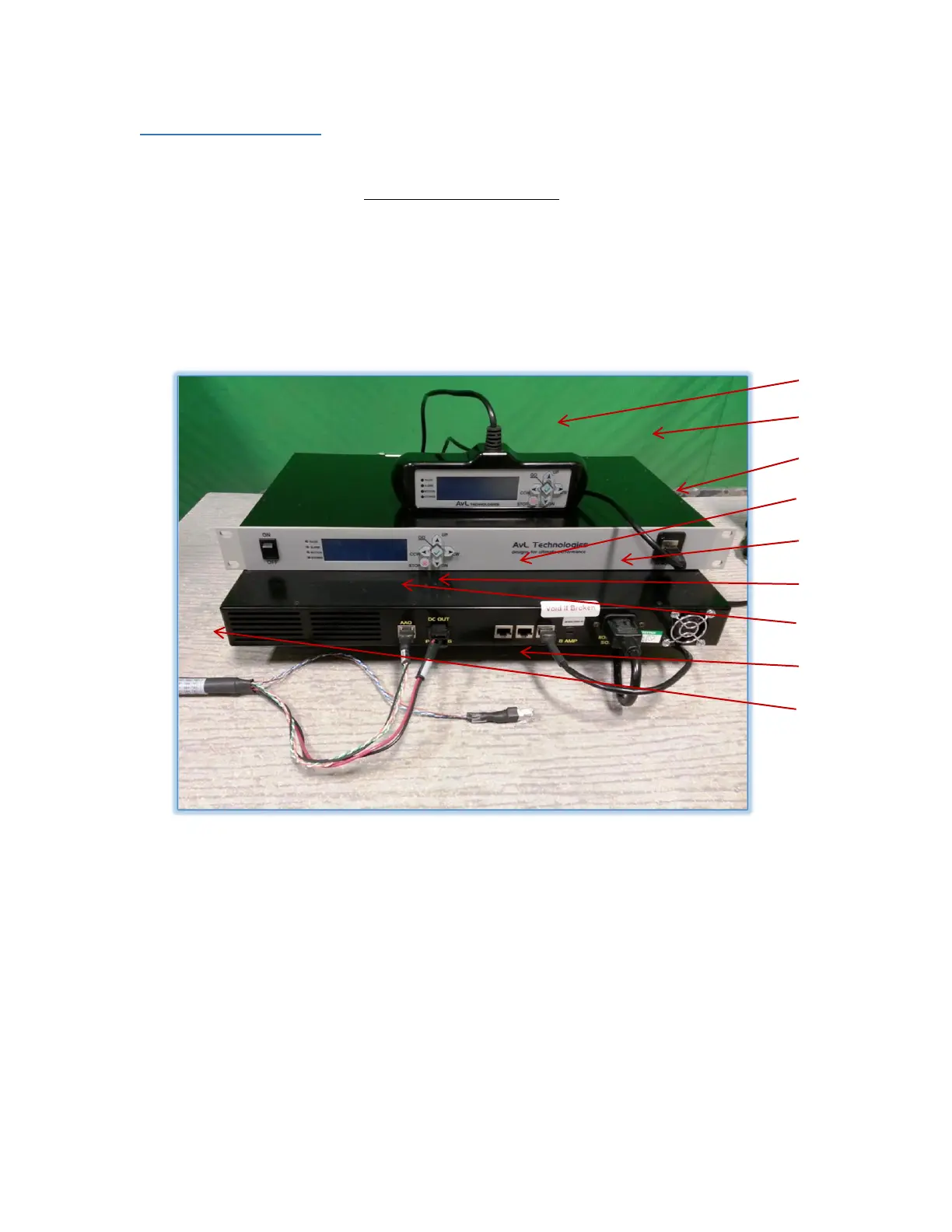

Figure 5.2 – CIP Connections
A. HandHeld Controller
B. Control Interface Panel (Front & Rear connections shown)
C. Remote Controller (HandHeld) Cable
D. Ethernet to PC , LAN, Modem or Beacon receiver *
E. AAQ Power Connector
F. Pedestal DC Power Connector
G. AAQ Data Connector
H. Serial for Aux Equipment such as Modem or Beacon receiver depending on system type
I. Antenna Pedestal Control Cable
