4. Lamp & Lamp House
4
Image 4-9

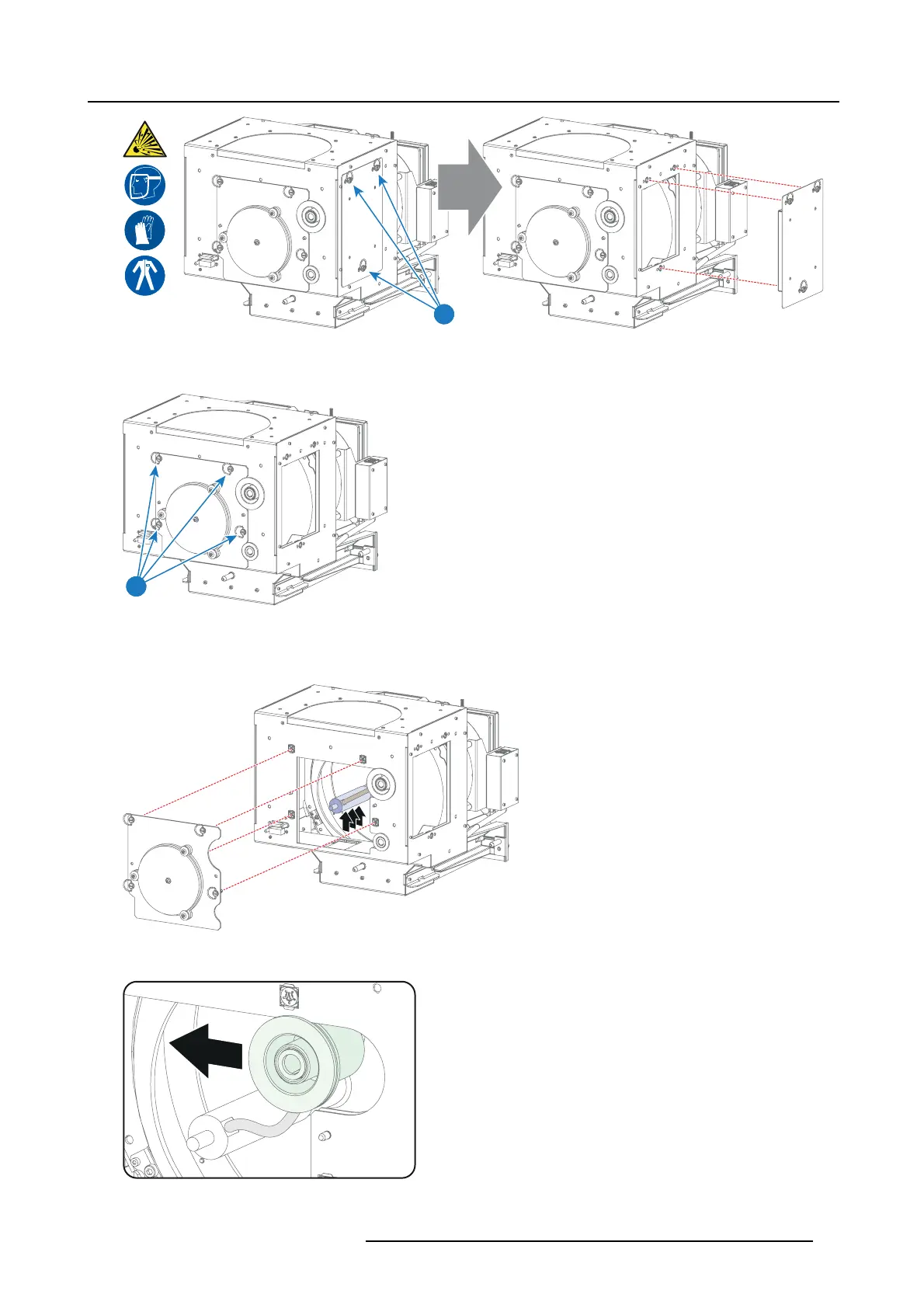

3. Release the four quarter turn screws (reference 5 image 4-10) of the UV blocker assembly as illustrated. M ake sure that the
anode support remains in its position while releasing the screw s.
5
Image 4-10
4. Support the xenon lamp inside the Lamp House with one hand while removing the UV blocker assembly from the lamp house.
Warning: Supporting the xenon lam p with one hand prevents the xenon lamp from dropping and colliding with the chassis of
the Lamp House.
Image 4-11
5. Slide out the anode connector from the Lamp Hou se. The anode connector remains attached with the lamp anode wire.
Image 4-12
R5905963 PROMETHEUS SERIES 09/03/2015 45
