4. Lamp & Lamp House
6. Gently remove the xenon lamp together with the anode socket out of the Lamp House. Do not use excessive force upon the
xenon lamp. Norm ally the x enon lamp will easily slide out the cathode socket of the Lamp House.
Warning: Supporting the xenon lamp with one hand while pulling it out with other hand prevents it from bumping against the
chassis of the Lamp House.

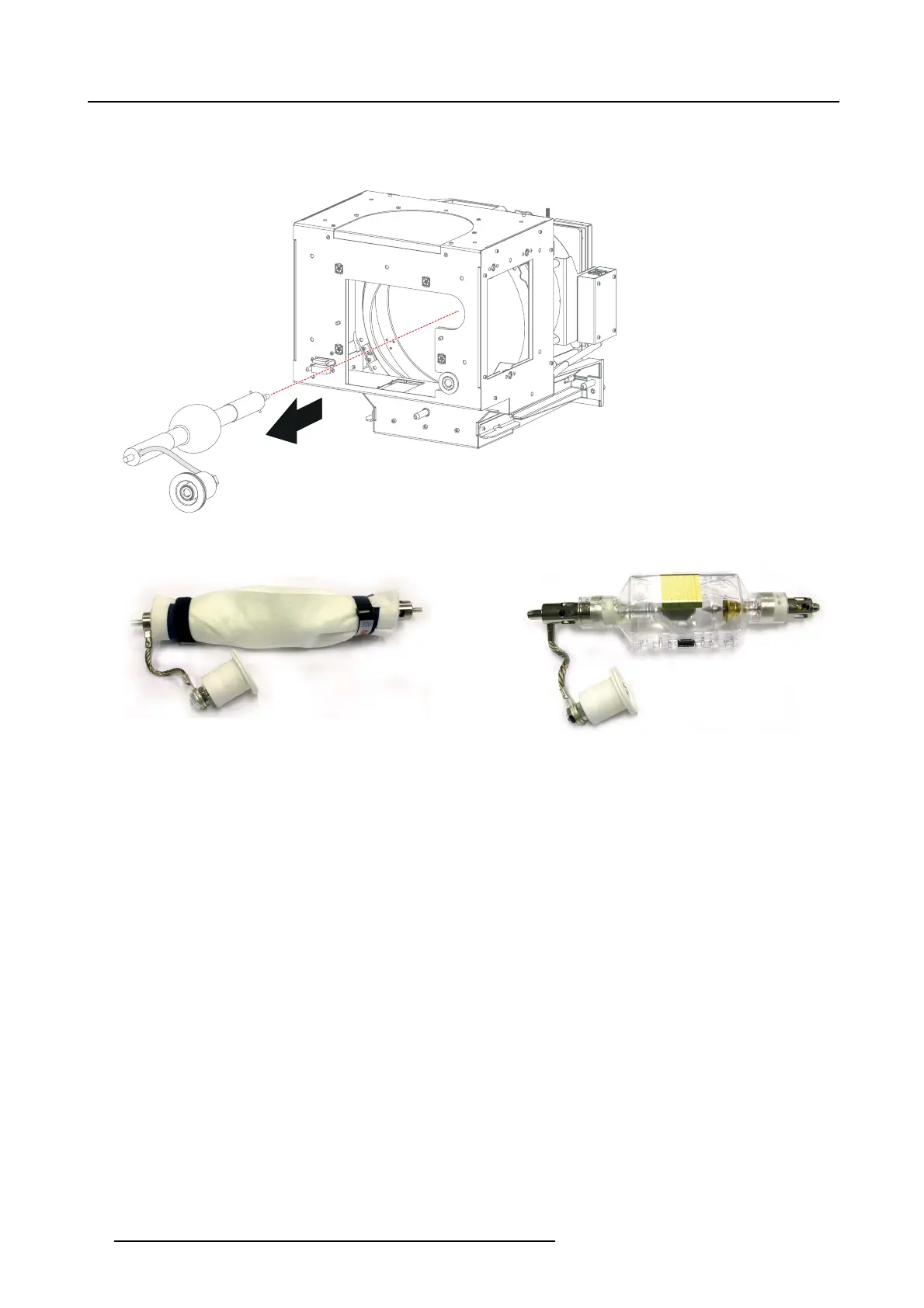

Image 4-22
7. Place the xenon lamp in its protective container or wrap the xenon lamp in a protective cloth and secure w ith two binders.
Image 4-23
Left: Xenon lamp wrapped in a protective cloth. Right: Xenon lamp captured in a protective container.
8. Remove the anode wire lug (reference 7 image 4-24) from the anode socket. U se for that two open ended spanners of 22 m m.
Hold the first nut (reference 5) with one spanner while releasing the second nut (reference 9 image 4-24) with the other spanner.
Tip: Place the flat washer and the nut back on the rod after the lug is removed .
50 R5905963 PROMETHEUS SERIES 09/03/2015
