4. Lamp & Lamp House
5 6 7 8 9
Image 4-24

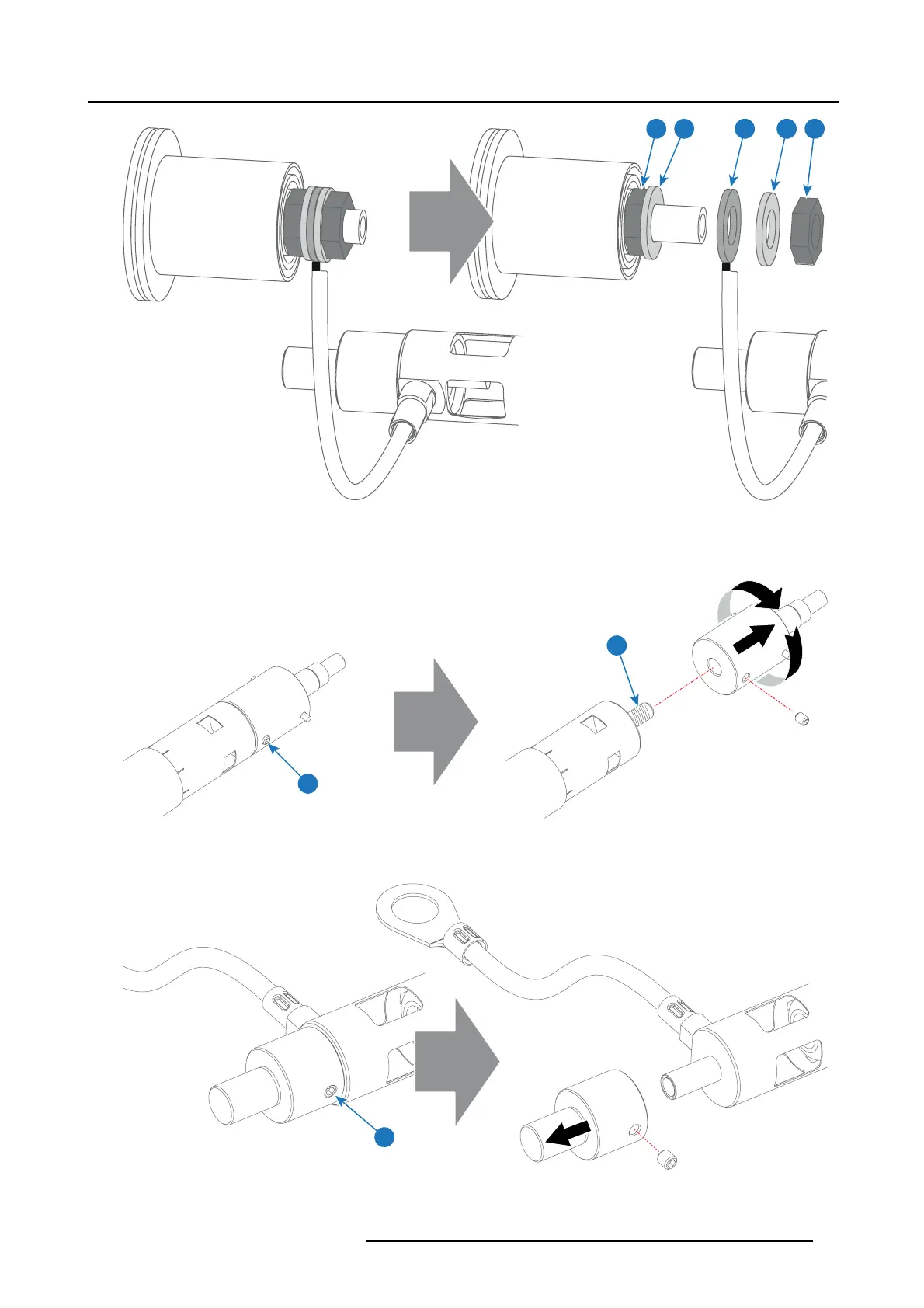

9. Remove the cathode adapter from the xenon lamp by releasing the hexagon socket head set screw (reference 9 image 4-25) of
the adapter as illustrated. Use a 2.5mm Allen wrenc h.
Note: Some xenon lam ps have a cathode pin with screw threat (reference 10 image 4-25.
10
9
Image 4-25
10.R emove the anode adapter from the xenon lamp by releasing the hexagon socket head set screw (reference 13 image 4-26) of
the lamp adapter as illustrated. Use f or that a 2.5mm Allen w rench.
13
Image 4-26
R5905963 PROMETHEUS SERIES 09/03/2015 51
