Baumuller b maXX 3000 User Manual

Installation
Instruction handbook b maXX BM3000, BM3200, BM3300
Document no. 5.11018.11
119
of 218
7

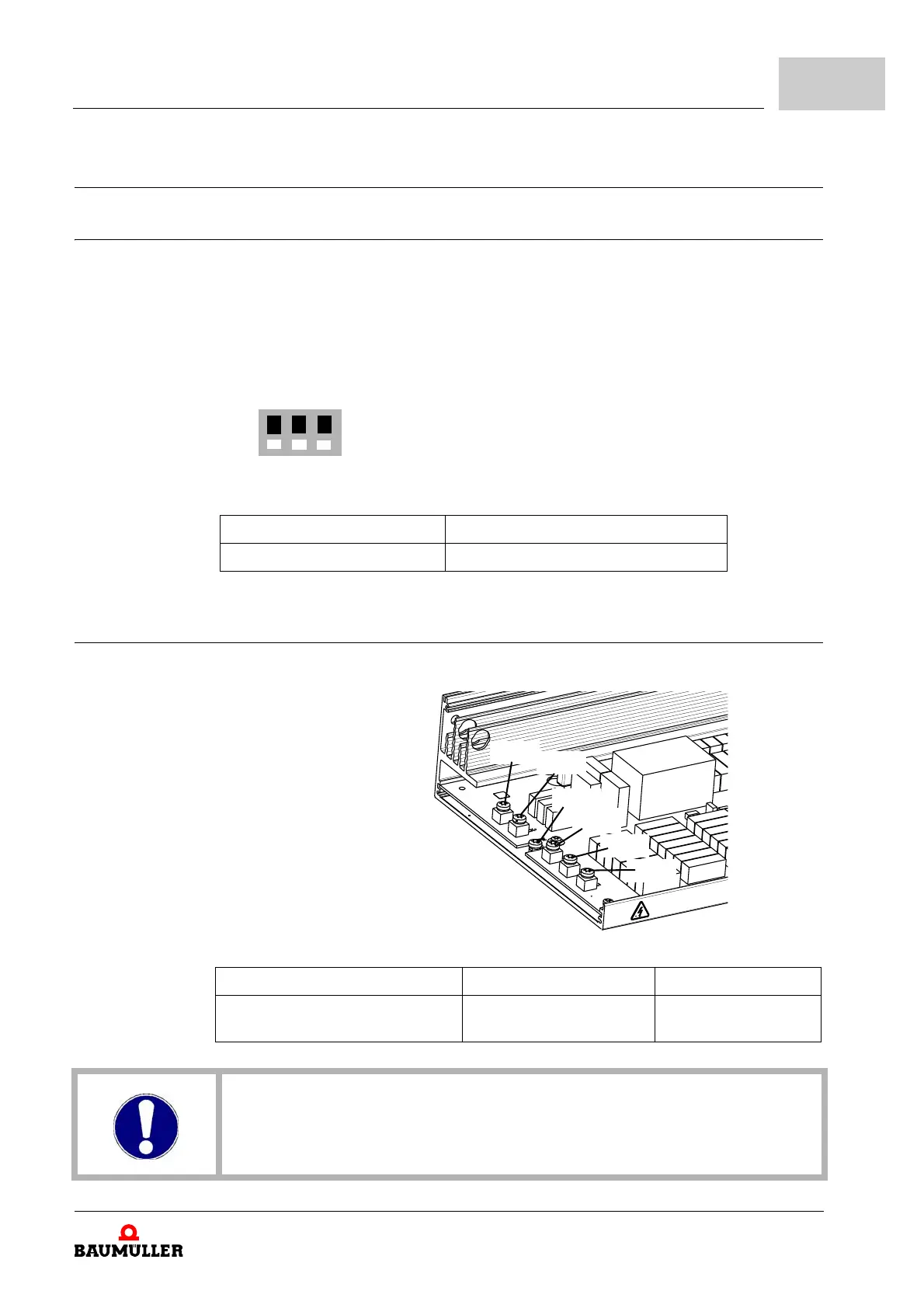

7.13 Connections BM3000
7.13.1 X100 input bridging relay
X100
7.13.2 Power connections
1U1, 1V1, 1W1 Power supply system
1U1
1V1
1W1
1C1
1D1
PE
1C1, 1D1 DC link
PE PE-connection
Input current: 0.08 A
Le
vel: Low (0 ... 5 V); High (12 … 28 V)
1 Input bridging relay
2 not connected
3 M24V
Max. conductor cross-section Termination system
0.2 mm² to 1.5 mm² spring clamp termination
1
2
3
Max. conductor cross-section Termination system Tightening torque
1 mm² bis 4 mm² Cable lug for M4 min. 1.4 Nm
max. 1.8 Nm
NOTICE!
The DC link cables must be double isolated.
