Baumuller b maXX 3000 - PE Connections BM3200, BM3300 Rear Panel

Installation
Instruction handbook b maXX BM3000, BM3200, BM3300
Document no. 5.11018.11
145
of 218
7
7.14.4 PE connections BM3200, BM3300 rear panel
PE:
Connection PE
PE:
Connection PE
PE:
Connection PE

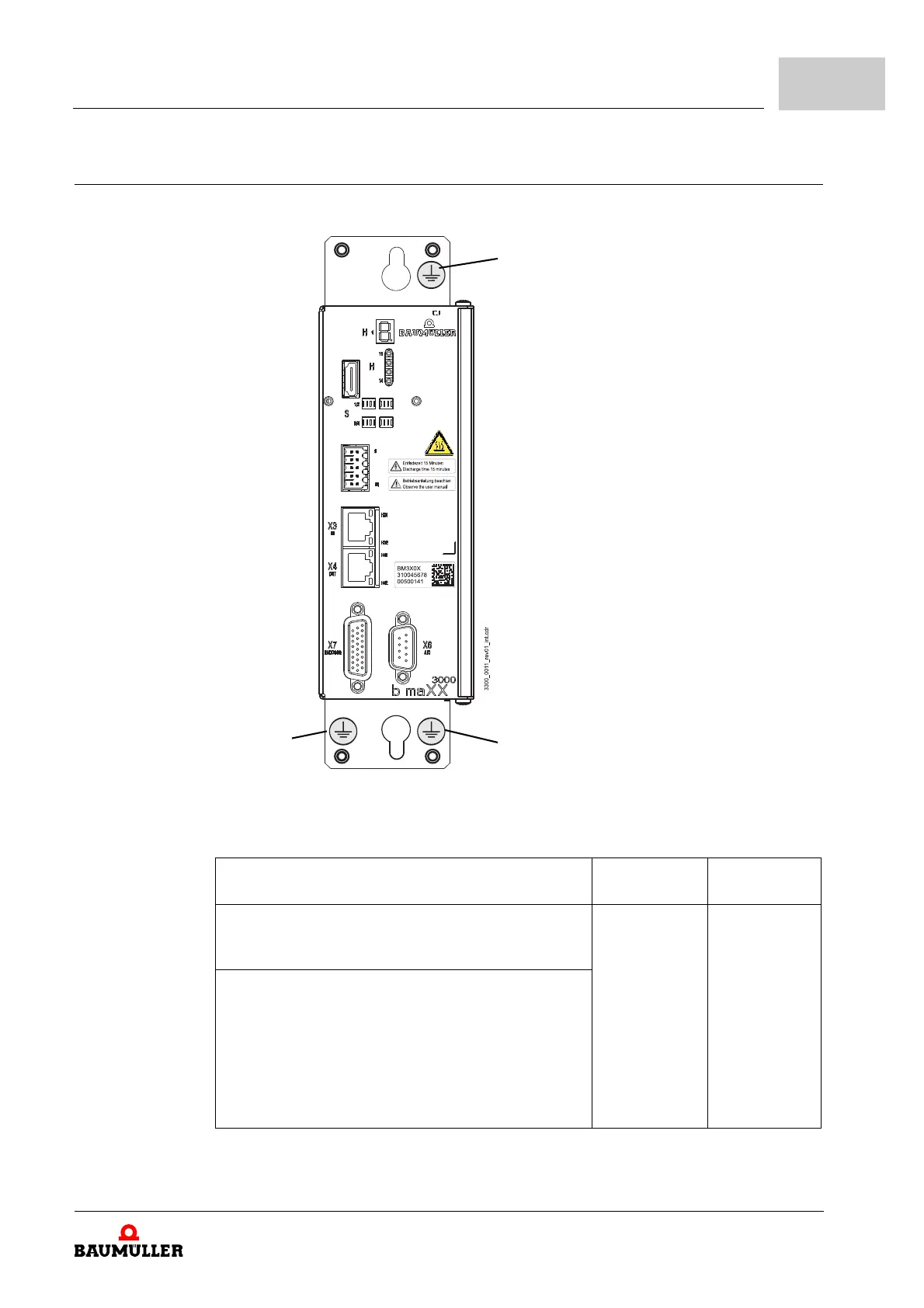

Figure 59: Connections PE
Max. connector
cross-section
Connection
system
Torque
10 mm
2
copper cables
16 mm
2
aluminum cables
Cable lug for
M5
min. 2.2 Nm
max. 3.0 Nm
2 cables
diameter according power supply connection,
see ZX202, X203, X205 - power supply, DC link, bal-
last resistor connection– on page 138
2 x 2,5 mm
2
with wire end ferrule
2 x 4 mm
2
without wire end ferrule
