Baumuller b maXX 3000 - BM3 XXX as an Axis Unit

Installation
Instruction handbook b maXX BM3000, BM3200, BM3300
Document no. 5.11018.11
103
of 218
7
7.12.3 BM3XXX as an axis unit
Devices with internal ballast resistor BM3XXX-XTXX-XXXXX-B-XXXXX-

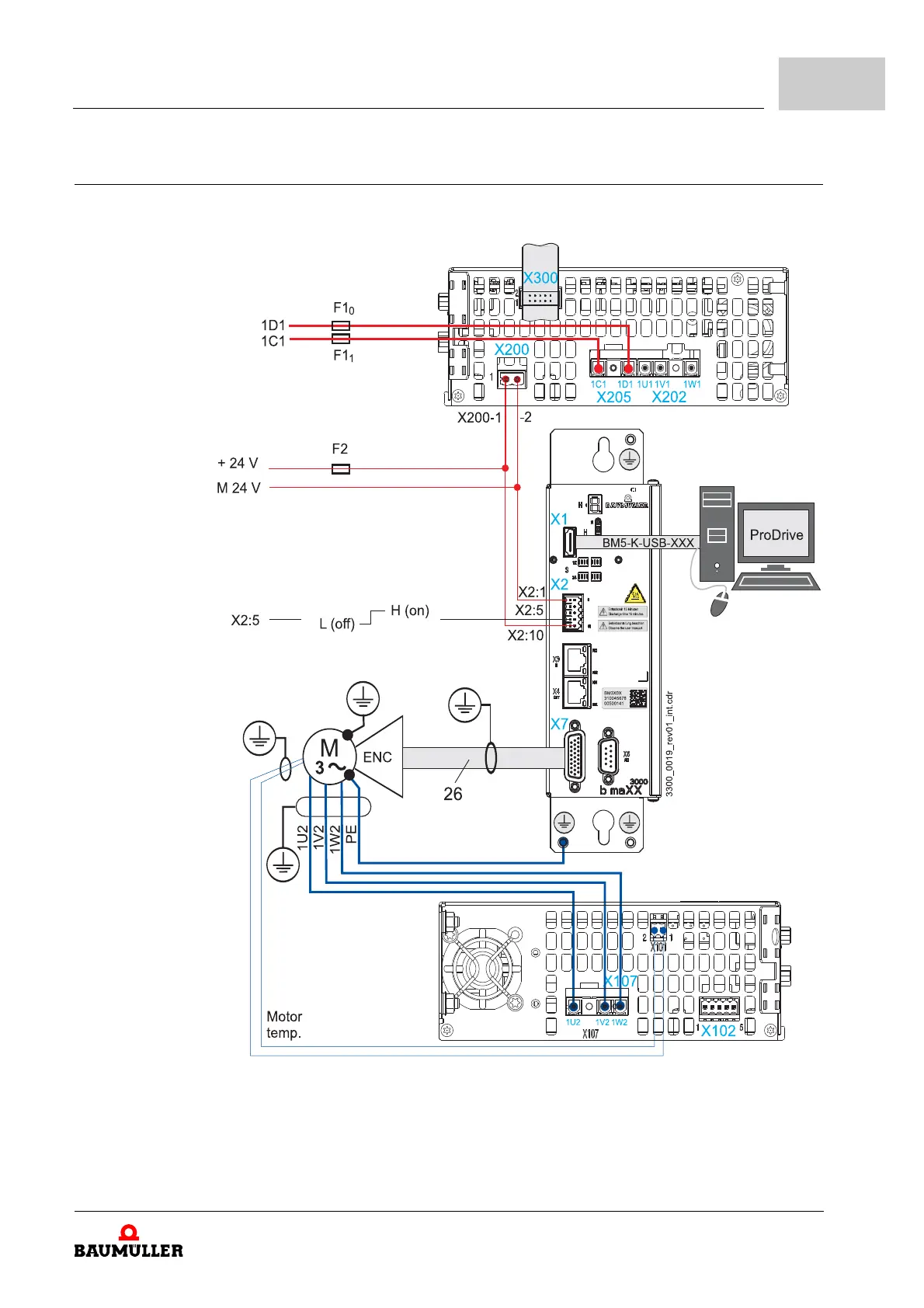

Figure 40: Terminal diagram BM3XXX-XT - axis unit with internal ballast resistor
