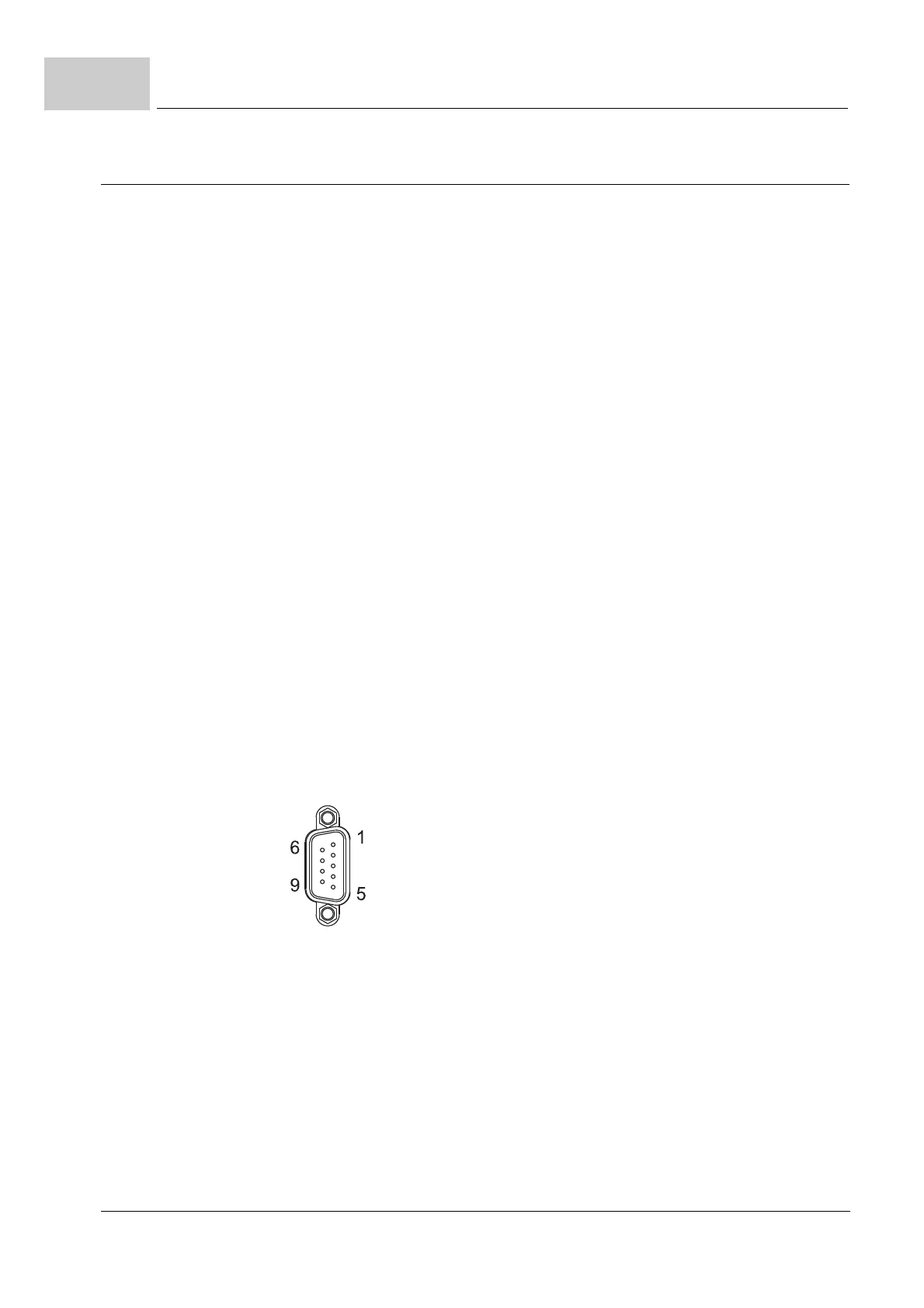

7.14.1.4 X6 - analog inputs/outputs
X6 BM3XXX-XXXX-XXXXX[-X]-XXX1X
Two analog inputs and one analog output are provided.
BM3XXX-XXXX-XXXXX[-X]-XXX2X
Two analog inputs and two analog outputs are provided.
Inputs Resolution 12 Bit
Version Differential input
Input resistance approx. 50 k
Current input max. 200 µA
Sampling rate 125 µs
Input voltage +10 V to -10 V
Outputs Resolution 12 Bit
Output voltage +10 V up to -10 V
tolerance ± 10 %
offset lower than 150 mV
Output current max.
1 mA
Update rate 62.5 µs
Short-circuit proof limited, max. 10 s
D-sub-connector
9-pin
1 Analog input 1 +
2 n. c. or analog input 2+, dependent on type, see above
3 GND analog inputs
4 Analog output 1 +
5 Analog output 2 +
6 Analog input 1 -
7 n. c. or analog input 2-, dependent on type, see above
8 GND analog inputs
9 GND analog inputs
