Baumuller b maXX 3000 User Manual

Display- and operating elements BM3200, BM3300
Instruction handbook b maXX BM3000, BM3200, BM3300
Document no. 5.11018.11 Baumüller Nürnberg GmbH
60
of 218
4.5
CANopen
®
Type code BM3200, BM3300 with CANopen
®
:
BM3XXX-XXXX-XXXXX[-X]-3XXXX[-S0X]-X
X[-XX][-EXX][-#XX]

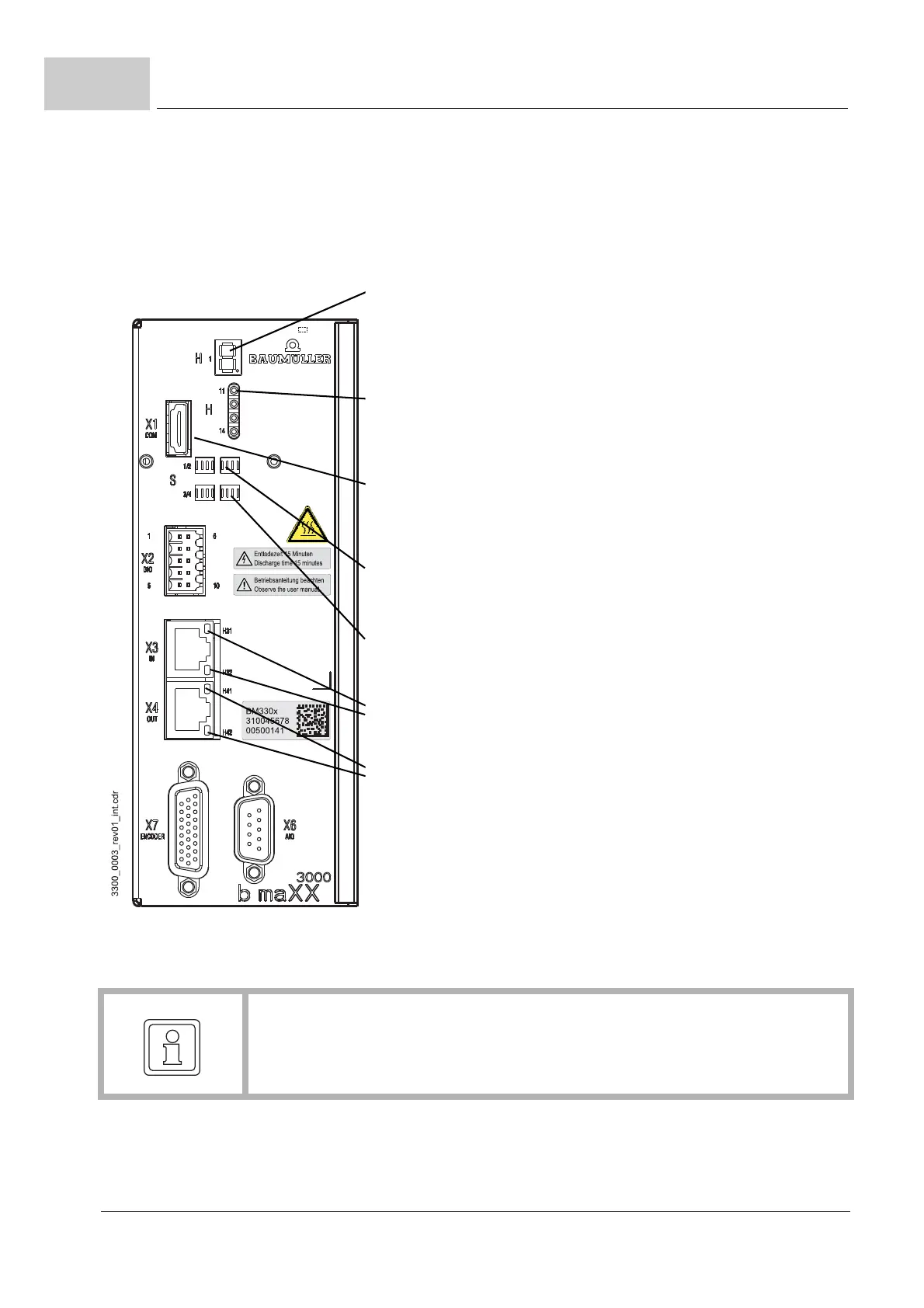

Figure 22: Display-/Operator controls Controller BM3200, BM3300 CANopen
®
H1: 7-segment display
display status controller
Meaning see: ZFunction of the 7-segment display–
from page 62
H11 - H14: Status display via LED 
Meaning see: ZFunction of the LEDs H11 to H14– on
page 63
X1: Service interface
S1 Reserved for further functions
S2 Baud rate CANopen
®
See address switch ZCANopen
®
– from page 69.
S3/S4: Address CANopen
®
See address switch ZCANopen
®
– from page 69.
H31/H32: LEDs without function
H41/42:
LEDs without function
NOTE!
The service interface X1 must be used with the service cable BM5-K-USB-XXX only,
maximum transmission rate 920 kBaud.
