Baumuller b maXX 3000 - Mount Protection Cover (Option)

Mounting instruction BM3000
Instruction handbook b maXX BM3000, BM3200, BM3300
Document no. 5.11018.11 Baumüller Nürnberg GmbH
82
of 218
6.4
Mount protection
cover (option)
1 Keep the accessories kit protection cover ready 
(see ZAccess
ories kit protection cover BM3000– on page 197).
2 Uns
crew 2 screws M3 with a screwdriver.,
3 Re
place with 2 distance bushings M3x52 (torque 1 Nm)
4 Attach pr
otection cover
5 Mo
unt the protection cover with the 2 screws M3 (torque 1 Nm)
Distance
bushing

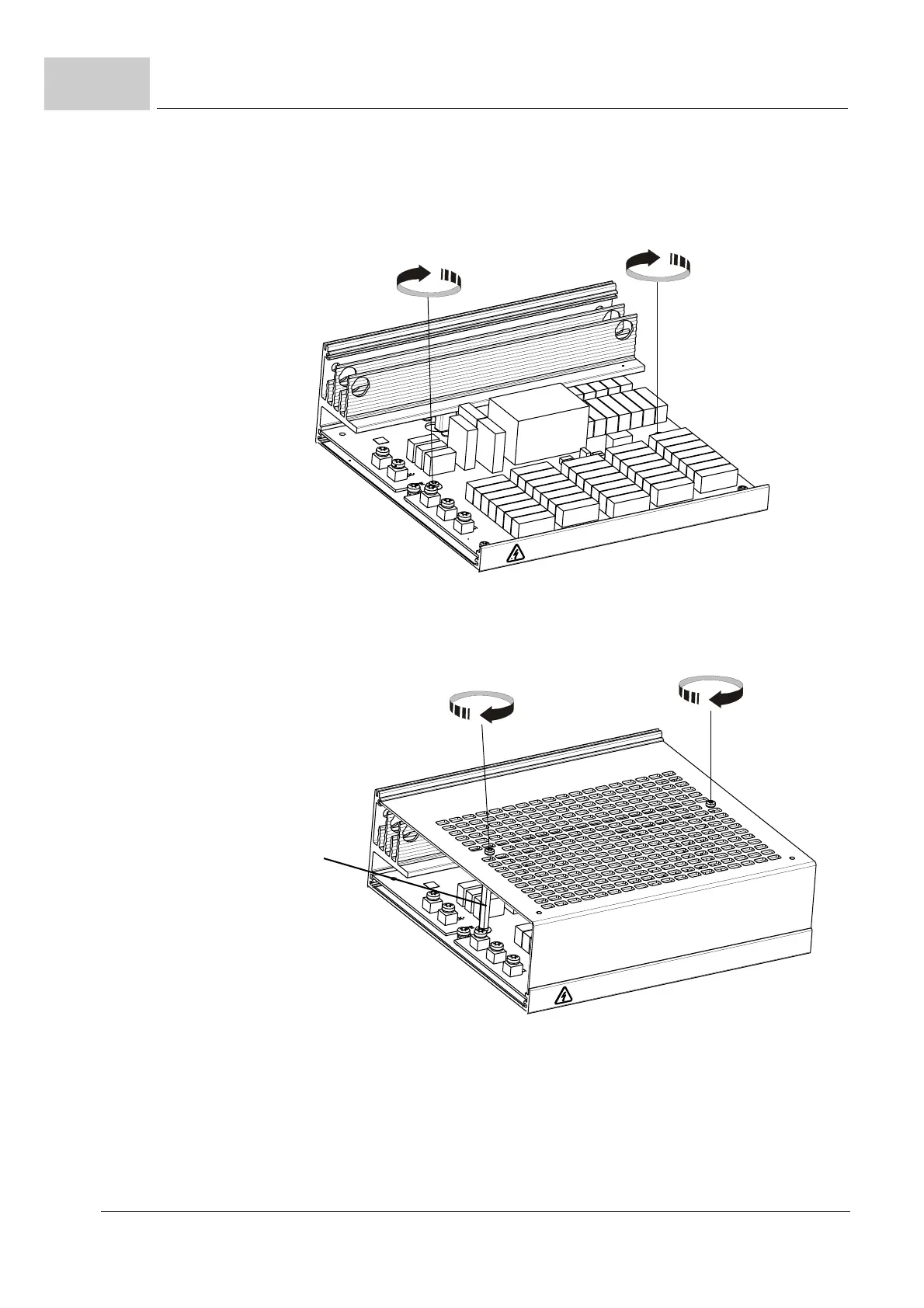

Figure 30: Mount protection cover (option)
