Baumuller b maXX 3000 User Manual

Mounting
Instruction handbook b maXX BM3000, BM3200, BM3300
Document no. 5.11018.11
83
of 218
6
6.5 Mounting instruction BM3200, BM3300
The required screws and washers for the mounting are specified below the figure.
Complete mounting as follows:
1 Pro
vide suitable fixing material.
2 Mo
unt device.
Mount device h O
n the top and on the bottom insert the fixing screw into the longitudinal holes (1).
h Th
en let the device glide downwards (2).
h In co
nclusion, tighten all fixing screws and grounding screws (3).

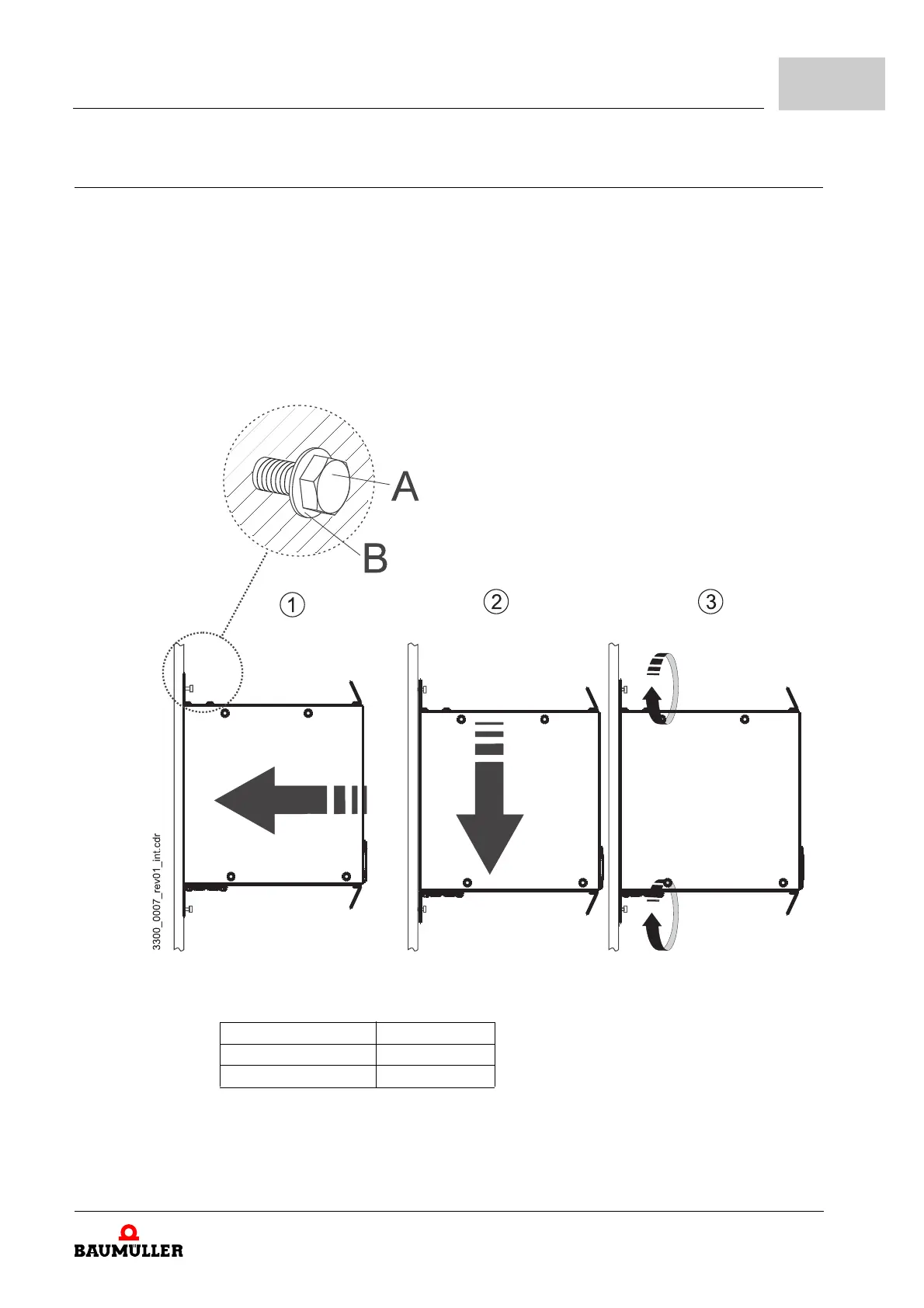

Figure 31: Mounting instruction BM3200, BM3300
Device BM3200, BM3300
A - Screws 2 x M5
B - Washers 2 x (5,3 x 10)
