11.3 Mains filter
Mains filters are combinations of capacitors, reactors, resistors and voltage limiters,
which shall reduce the electromagnetic influence of environment. Further information see
Mains filter, 5.09010.
11.3.1 Required
Transport temperature range -25 °C up to +85 °C
Storage temperature range - 25 °C up to +85 °C
Operation environment industry power supply
Operation temperature range -25 °C up to +85 °C
environmental conditions mains filter
11.3.2 Mains filter for 3-phase devices BM3XXX-XTXX

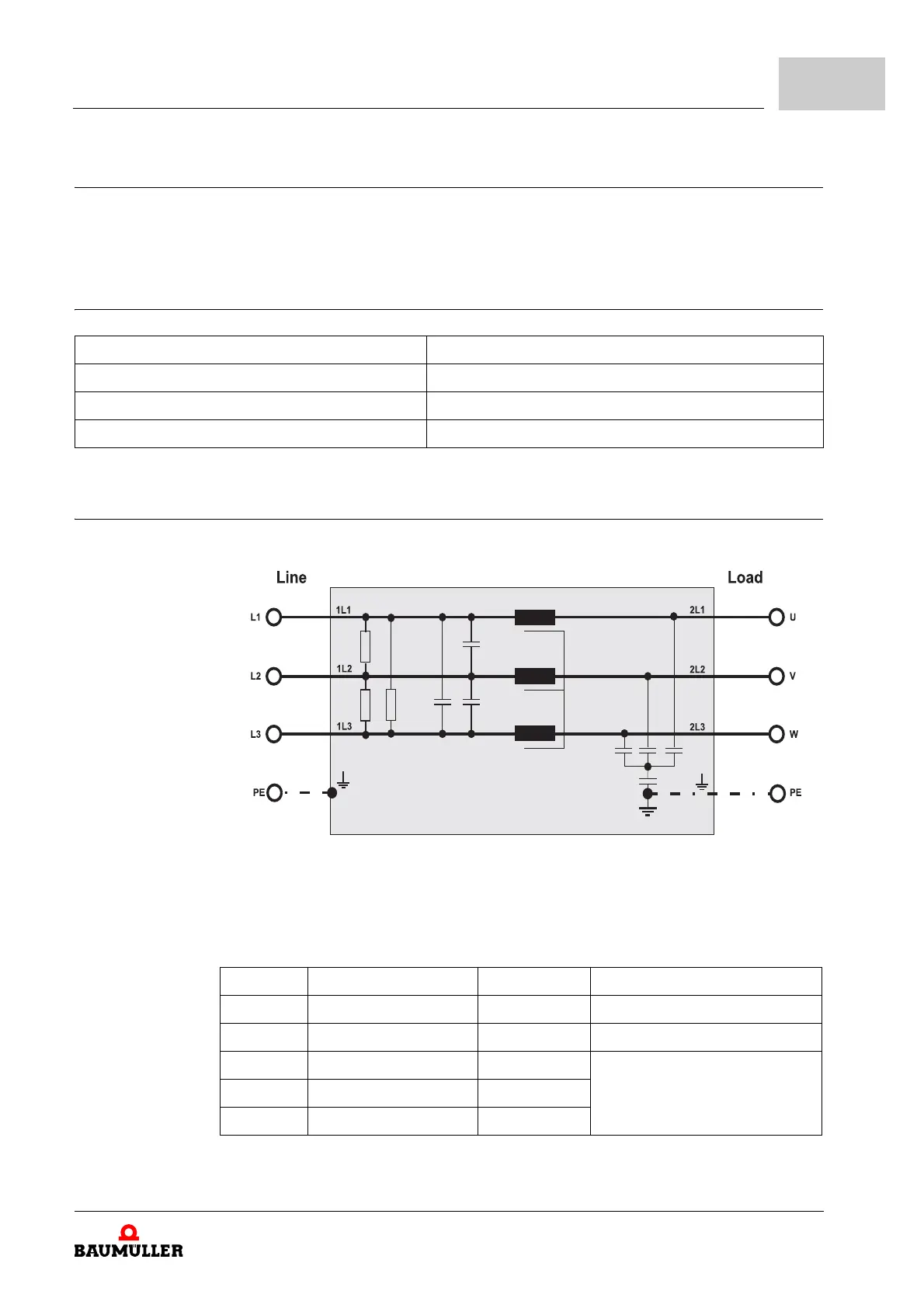

m Block diagram of filter for mains applications (simplified)
Figure 76: Block diagram mains filter
m Selection of the correct mains filter for 3-phase devices
In dependency of the application install a ma
ins filter from the following table:
I
rated AC
1)
Type Part No. Use with devices
5 A BFN 3-1-0007-001 314277 BM320X-XTXX, BM330X-XTXX
10 A BFN 3-1-0016-001 314278 BM321X-XTXX, BM331X-XTXX
20 A HOWCORE NFI-020 464082 BM3002
30 A BFN 3-1 - 0030 - 001 314279
75 A BFN 3-1 - 0075 - 001 314282
