Installation
Instruction handbook b maXX BM3000, BM3200, BM3300
Document no. 5.11018.11
91
of 218
7
7.8.1 Shielding connection mounting plate
Establish a large-area contact between the shield and the conductive and grounded
mounting plate by means of a conductive clamp.
Refer to ZConnecting the shield– on page 92.
7.8.2 Shielding connection with shield sheet
7.8.2.1 Mounting shield sheet
Refer to ZAccessories kit shielding BM3200, BM3300– from page 197.

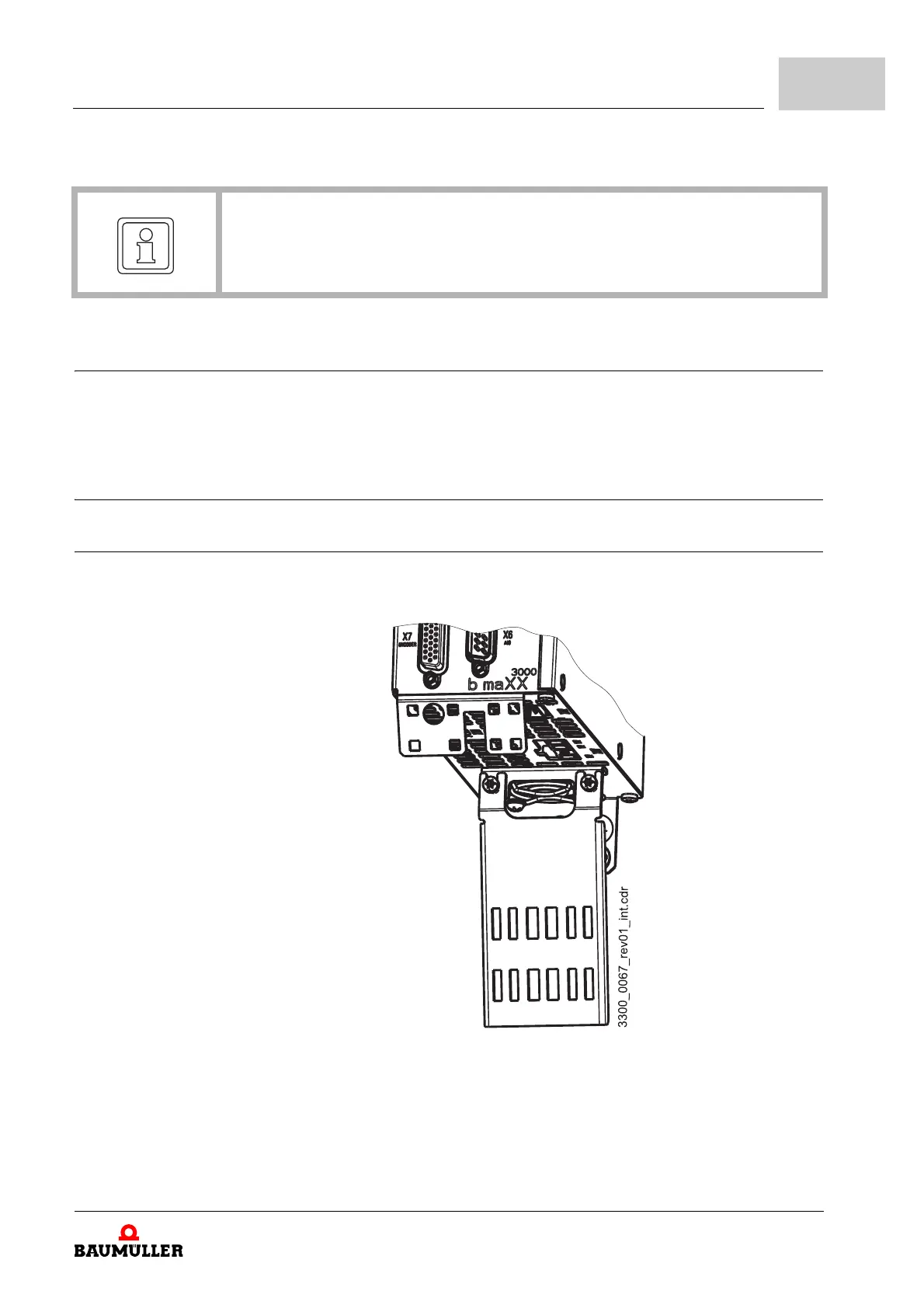

Figure 33: Mounting shield sheet
NOTE!
Pay attention to strain relief for all cables!
