Installation
Instruction handbook b maXX BM3000, BM3200, BM3300
Document no. 5.11018.11
111
of 218
7
7.12.5 BM3XXX-XE as compact servo unit (1-phase, 230 V)
Devices with internal ballast resistor BM3XXX-XEXX-XXXXX-B-XXXXX-

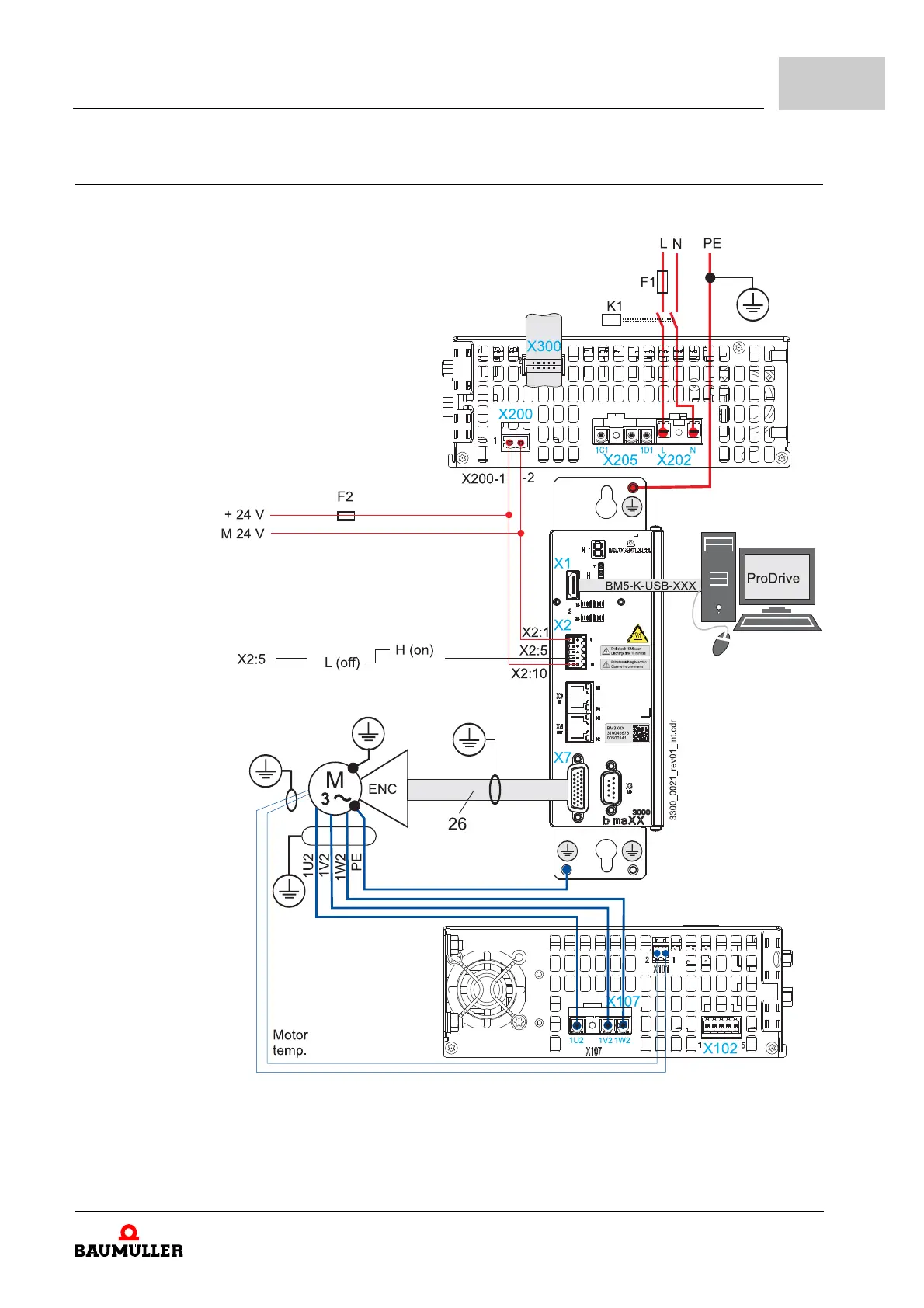

Figure 46: Connection diagram BM3XXX-XE (1-phase connection, 230 V, with internal ballast resistor)
