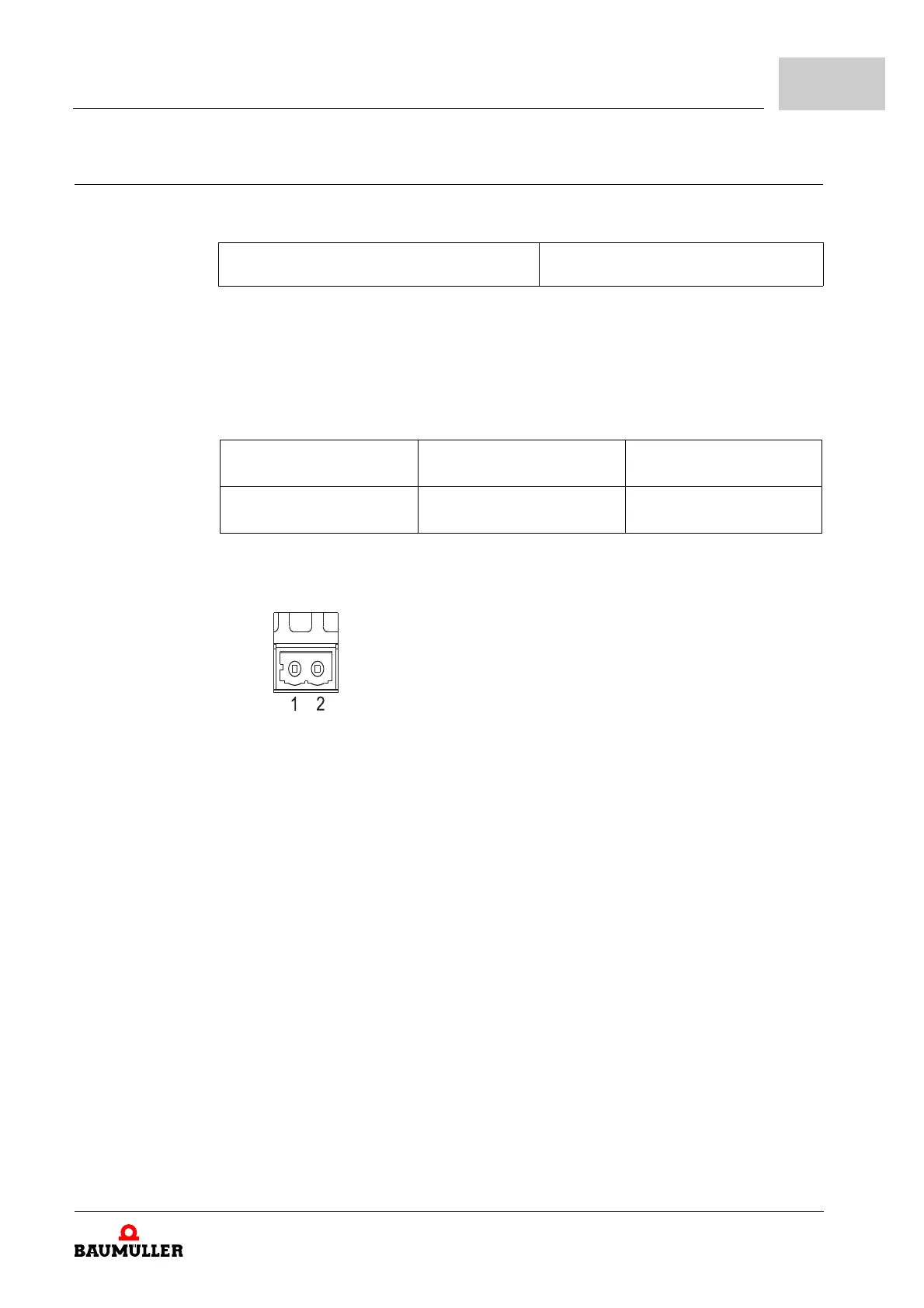

7.14.2.1 X200 - 24V voltage supply
X200 (SELV/PELV)
Control voltage (U
DC
)
according to EN 61131-2:1994, table 7
+ 24 V -15 % / +20 %
Also see ZRequ
irements to the control voltage / 24 V-supply– on page 28.
The control voltage must accord to PELV (EN 61800-5-1, chapter 3.21) and accordingly
to SELV (EN 61800-5-1, chapter 3.35).
At a control voltage of < 24 V the fan power is reduced. Therefore, it can be necessary,
to reduce the output current.
Max. conductor
cross-section
Termination system Loading capacity
1,5 mm
2
(2-wire cabling, 2-pin)
Connector,
spring clamp termination
max. 2,0 A
Connector max. 20 A
1 +24V
2 M24V
