Electrical data
Instruction handbook b maXX BM3000, BM3200, BM3300
Document no. 5.11018.11 Baumüller Nürnberg GmbH
46
of 218
3.4
Intermittent load
cycle

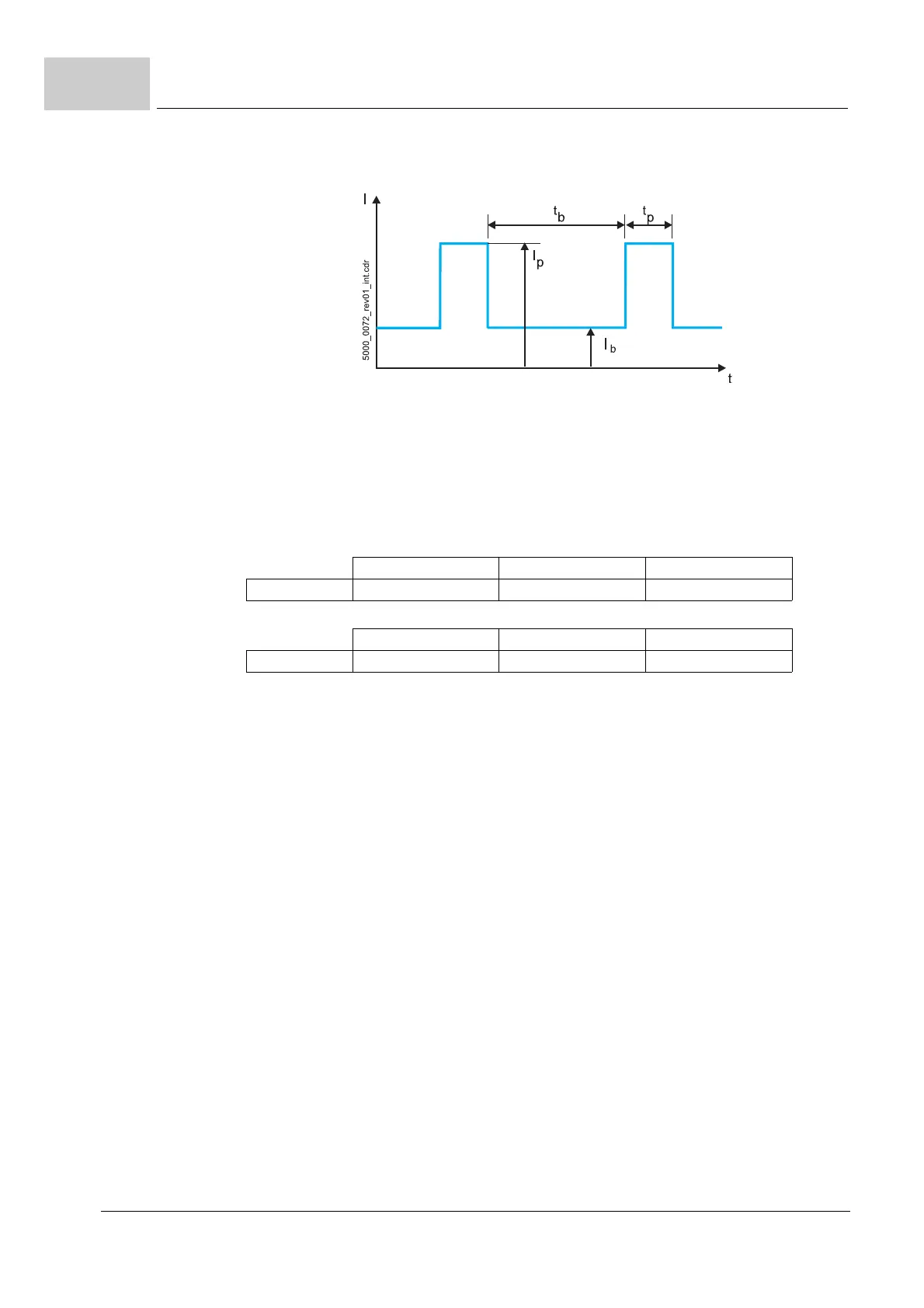

Figure 16: Typical current-time-diagram: Intermittent load cycle
t
b
t
o
+I
rated
2
 t
p
I
p
2
t
b
I
b
2
+=
t
b
with I
b
= 100 % I
rated
t
p
with I
p
= 150% I
rated
t
p
with I
p
= 200 % I
rated
BM3X01 60 s (I
b
= 5 A) 4 s (I
P
= 7,5 A) 2 s (I
p
= 10 A)
This term is valid for possible load cycles:
Example load cycles:
t
b
with I
b
= 60 % I
rated
t
p
with I
p
= 150% I
rated
t
p
with I
p
= 200 % I
rated
BM3X01 120 s (I
b
= 3 A) 45 s (I
P
= 7.5 A) 25 s (I
P
= 10 A)
