Baumuller b maXX 3000 - BM3 XXX-XT as a Compact Servo Unit (3-Phase)

Connecting diagrams
Instruction handbook b maXX BM3000, BM3200, BM3300
Document no. 5.11018.11 Baumüller Nürnberg GmbH
100
of 218
7.12
7.12.2 BM3XXX-XT as a compact servo unit (3-phase)
3300_0020_rev01_int.cdr
+24V
K1
F1
M24V
X2:1
X2:5
X2:10
X200-1
UVW
PE
F2
-2
X7
X1
X2
1C1 1D1 1U11V1 1W1
X200
X205
X202
BM3X0X
310045678
00500141
Entladezeit 15 Minuten
Discharge time 15 minutes
Betriebsanleitung beachten
Observe the user manual
ProDrive
BM5-K-USB-XXX
X300
X2:5
3
M
1W2
1V2
1U2
PE
X107
26
X102
1U2
1V2 1W2
ENC
Motor
temp.
L (off)
H (on)
Devices with internal ballast resistor BM3XXX-XTXX-XXXXX-B-XXXXX-

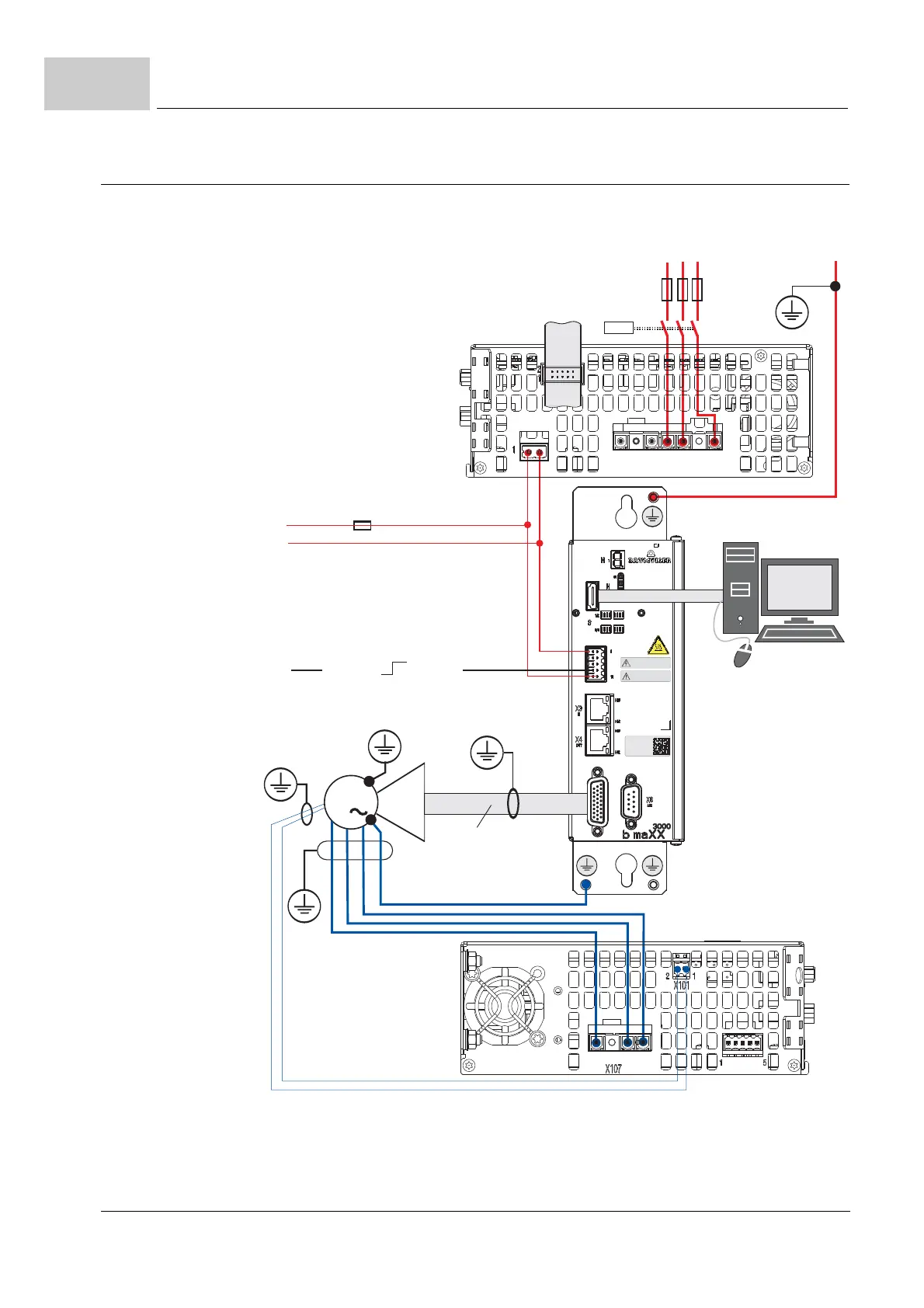

Figure 38: Terminal diagram BM3XXX-XT (3-phase connection, internal ballast resistor)
