Connecting diagrams

Instruction handbook b maXX BM3000, BM3200, BM3300

Document no. 5.11018.11 Baumüller Nürnberg GmbH

108

of 218

7.12

7.12.4 BM3XXX-XT as a compact servo unit (single-phase)

Devices with internal ballast resistor BM3XXX-XTXX-XXXXX-B-XXXXX-

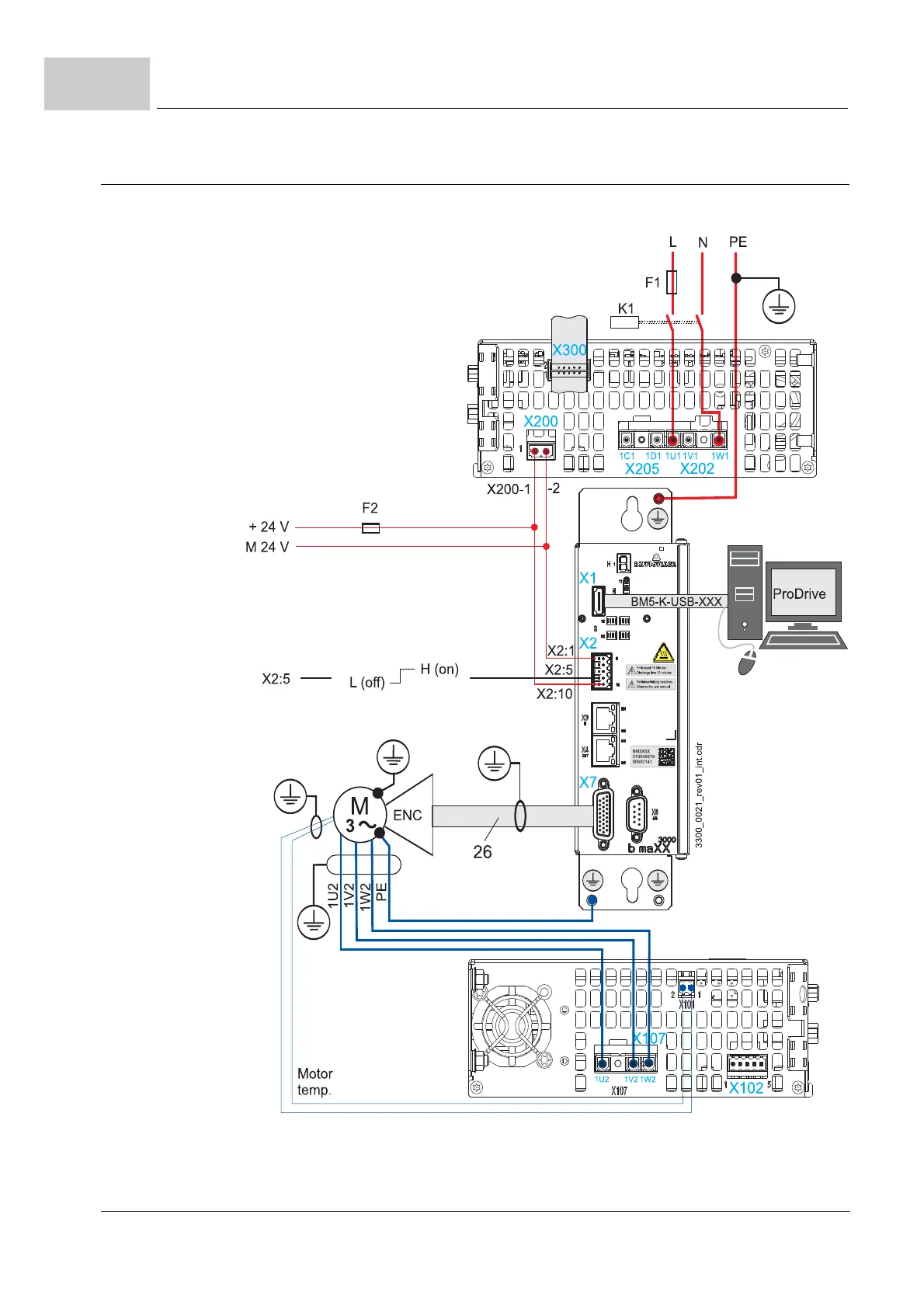

Figure 44: Connection diagram BM3XXX-XT (single-phase connection, with internal ballast resistor)
