Baumuller b maXX 3000 - Mains Rectifier BM3000

Installation
Instruction handbook b maXX BM3000, BM3200, BM3300
Document no. 5.11018.11
99
of 218
7
7.12.1 Mains rectifier BM3000
PE
K1
U
V
W
1U1
1V1
1W1
1C1
1D1
PE
1D1 1C1
M 24 V
Bridging relay
X100:3Input X100:1

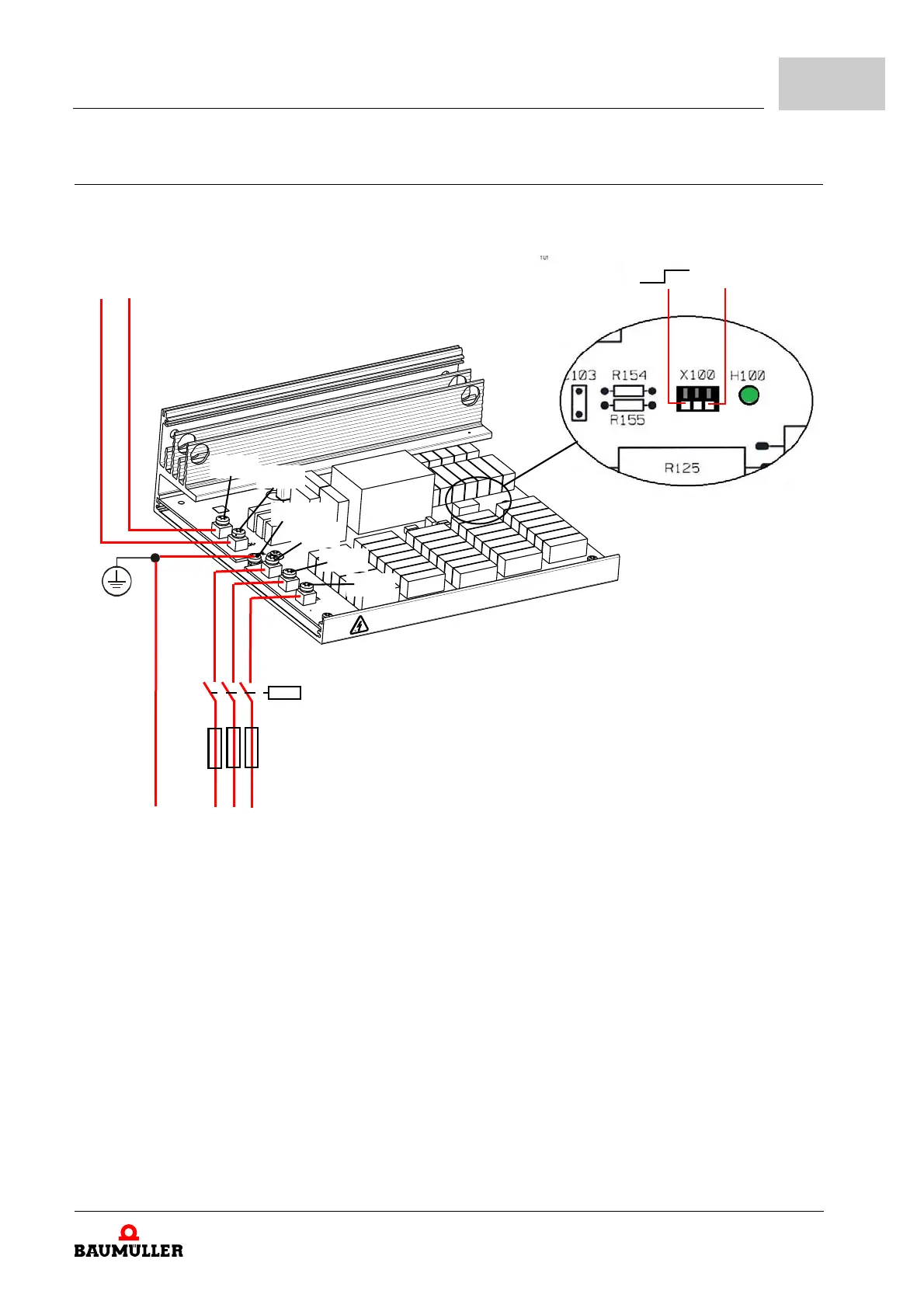

Figure 37: Connection diagram BM3000
X100 Connection for input signal of bridging relay, see ZConnections BM3000– on page 119.
1U1, 1V1,
1W1
Power supply, 
see ZRe
quirements to the energy supply: power supply– from page 27 and
ZCo
nnections BM3000– on page 119.
PE PE-connection,
see ZPE
connection and RCD compatibility– from page 89 and
ZCo
nnections BM3000– on page 119
F1 Fuses (cable + device)
see ZProte
ction of the device and accordingly of the cable– from page 88
K1 Mains contactor (option)
