Connections

Instruction handbook b maXX BM3000, BM3200, BM3300

Document no. 5.11018.11 Baumüller Nürnberg GmbH

144

of 218

7.14

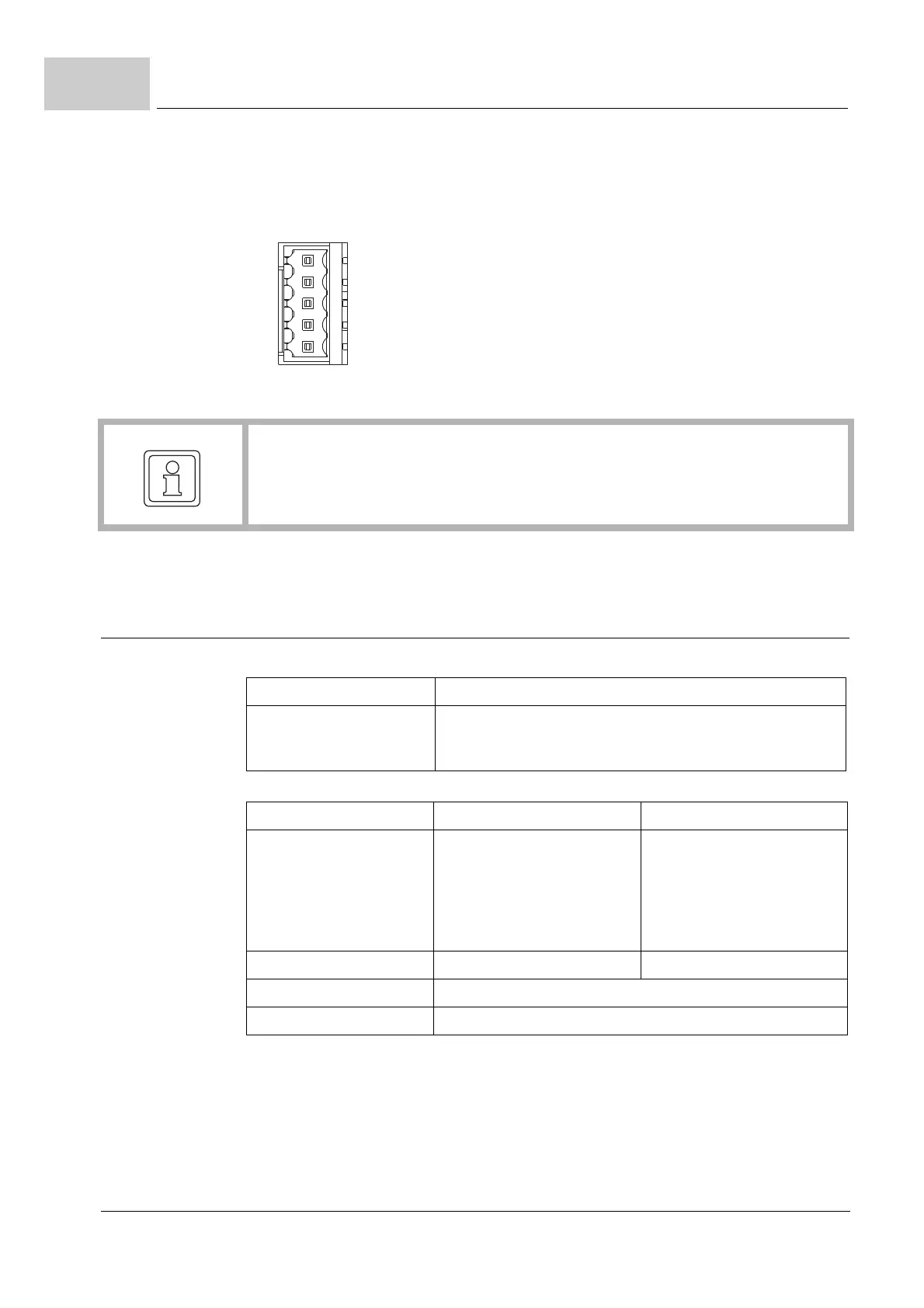

7.14.3.3 X107 - motor connection

X107

1U2, 1V2, 1W2

PE See ZPE connections BM3200, BM3300 rear panel– from page 145.

5 STO 2 GND

4 STO 2 24V

3 n. c.

2 STO 1 GND

1 STO 1 24 V

NOTE!

The used power supply must comply with the defined voltage drop according

EN60204-1.

Connection system Loading capacity

Connector,

screw terminal

is limited by the device,

also see ZElectrical data– from page 35

connector max. 20 A

Minimum Maximum

Max. cross-section

single-wired

fine-wired

with ferrule

(with/without protective

over)

0.08 mm² / AWG28

0.2 mm²

4 mm² / AWG12

2.5 mm²

Locking torque 0.4 Nm 0.5 Nm

Screwdriver blade 0.6 x 3.5 mm

Skinning length 7 mm / 0,9 in
