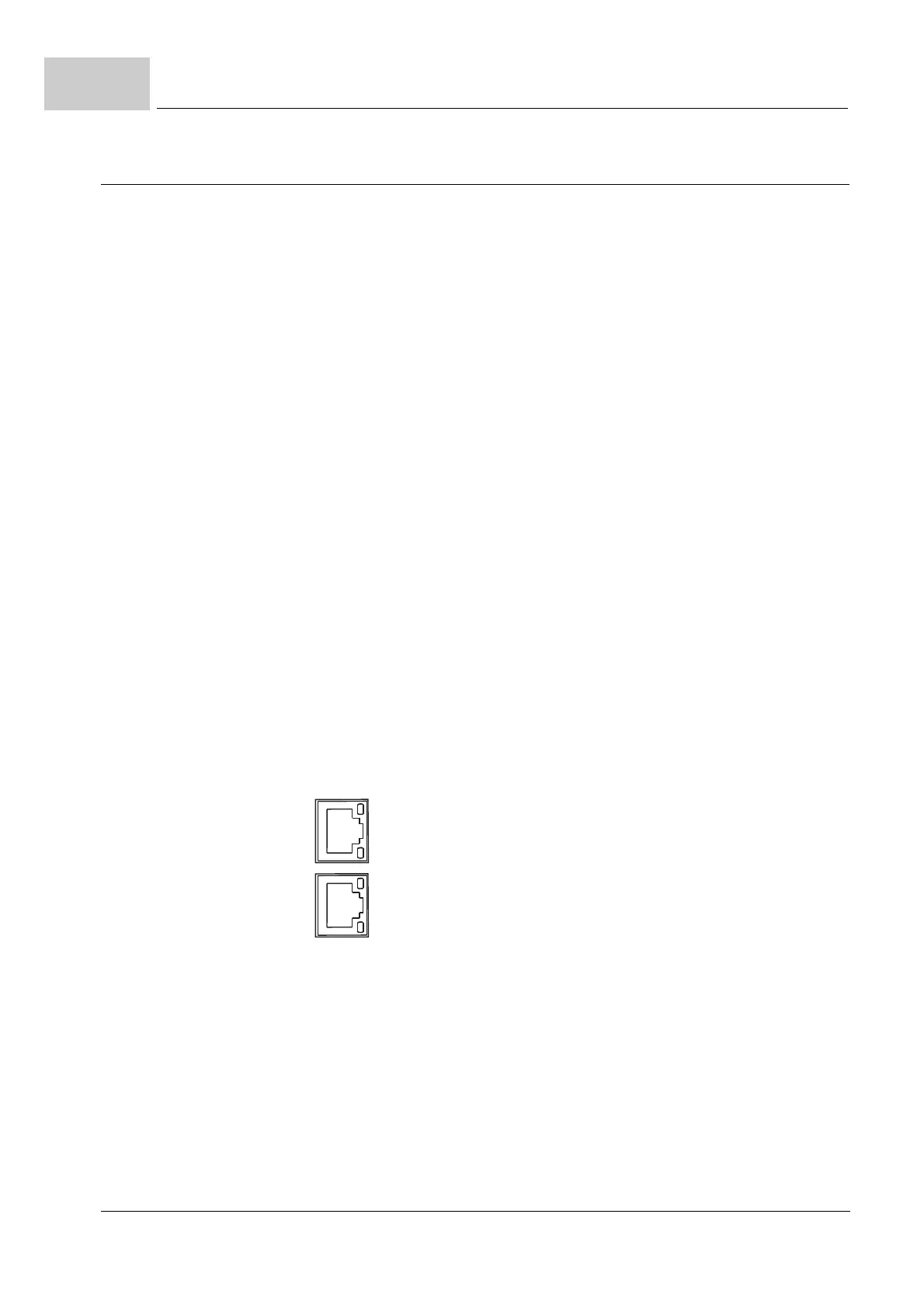

7.14.1.3 X3 / X4 - fieldbus connection
Depending on the hardware-version, see ZType code– from page 53.
EtherCAT
®
Type code BM3200, BM3300 with EtherCAT
®
CoE profile:
BM3XXX-XXXX-XXXXX[-X]-1XXXX[-S0X]-XX[-XX][-EXX][-#XX]
Type code BM3200, BM3300 with EtherCAT
®
SoE profile:
BM3XXX-XXXX-XXXXX[-X]-7XXXX[-S0X]-XX[-XX][-EXX][-#XX]
X3
X4
EtherCAT
®
IN
EtherCAT
®
OUT
Number of bus connections 1 IN / 1 OUT
Bus connection RJ 45
Number of parameters refer to
parameter handbook BM3000
Data width of parameters 16 / 32 Bit
Baud rates 10 / 100 Mbit/s
1: TX+
2: TX-
3: RX+
4: reserved
5: reserved
6: RX-
7: reserved
8: reserved
X3
X4
