Installation
Instruction handbook b maXX BM3000, BM3200, BM3300
Document no. 5.11018.11
123
of 218
7
VARAN Type code BM3200, BM3300 with VARAN profile:
BM3XXX-XXXX-XXXXX[-X]-2XXXX[-S0X]-XX[-XX][-EXX][-#XX]

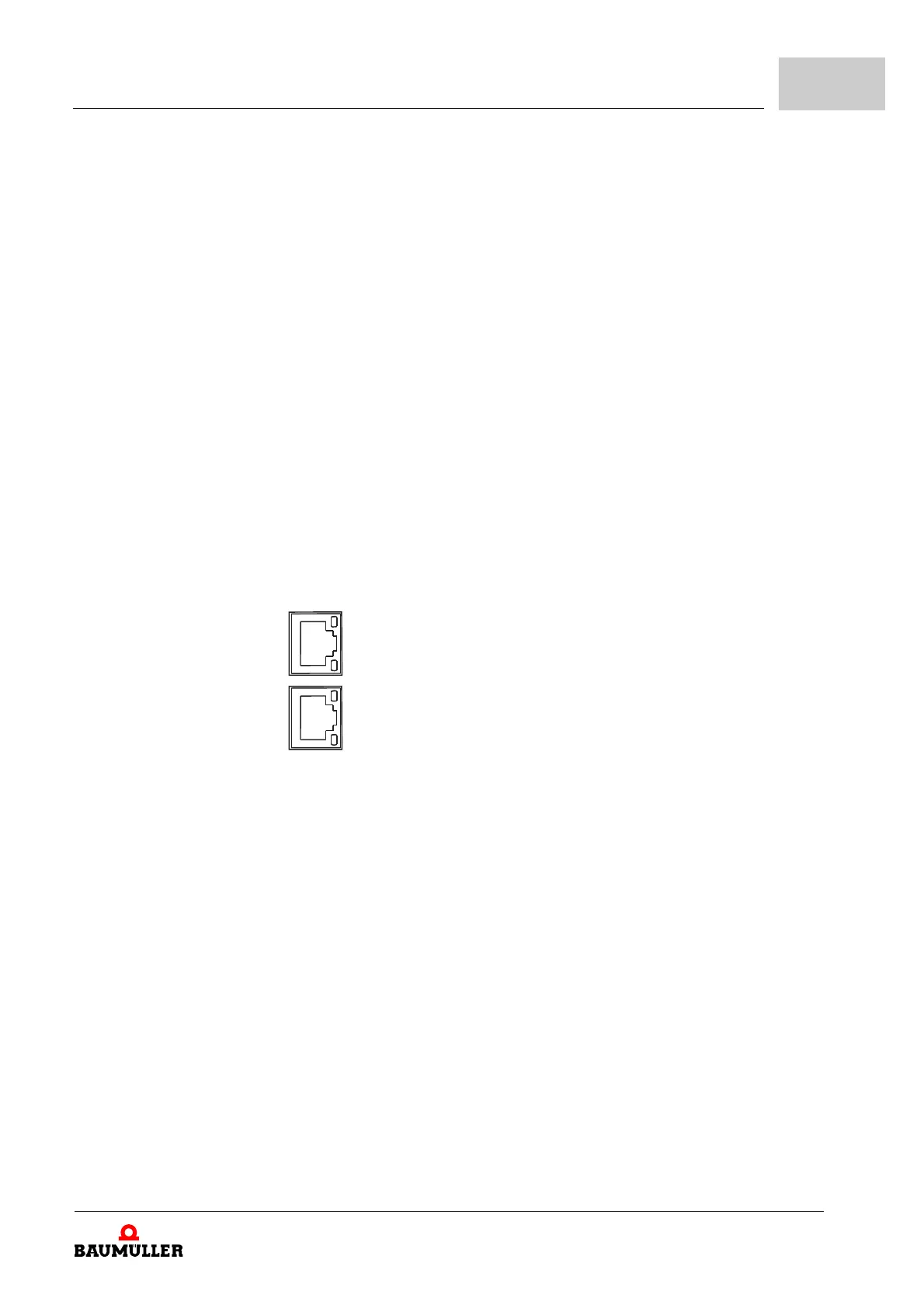

X3
X4
VARAN IN
VARAN OUT
Number of bus connections 1 IN / 1 OUT
Bus connection RJ 45
Number of parameters refer to
parameter handbook BM3000
Data width of parameters 16 / 32 Bit
Baud rates 10 / 100 Mbit/s
1: TX+
2: TX-
3: RX+
4: reserved
5: reserved
6: RX-
7: reserved
8: reserved
X3
X4
