Baumuller b maXX 3000 - Page 101

Installation
Instruction handbook b maXX BM3000, BM3200, BM3300
Document no. 5.11018.11
101
of 218
7
Devices without internal ballast resistor BM3XXX-XTXX-XXXXX-E-XXXXX-

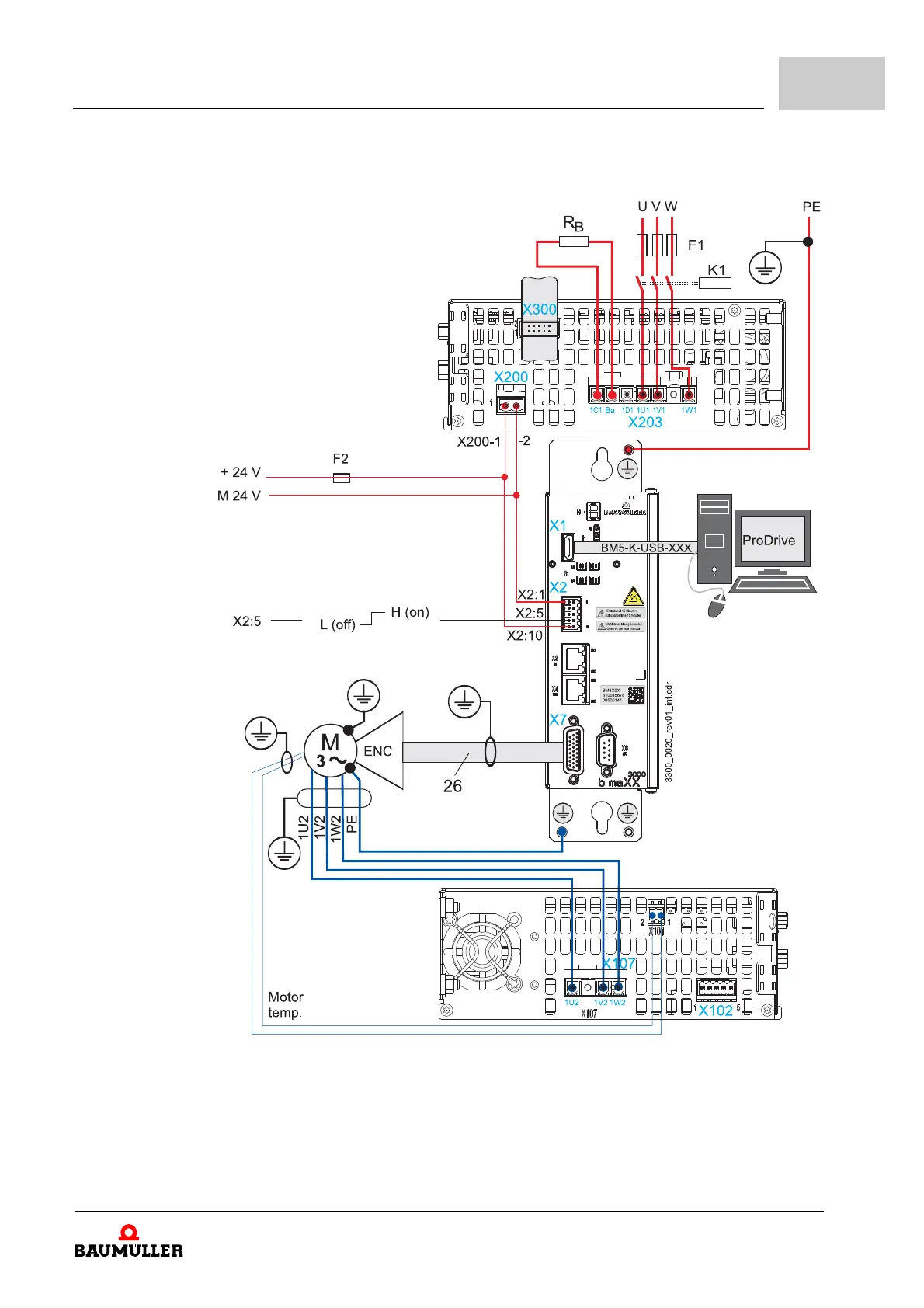

Figure 39: Terminal diagram BM3XXX-XT (3-phase connection, no internal ballast resistor)
