Baumuller b maXX 3000 User Manual

Design and Function
Instruction handbook b maXX BM3000, BM3200, BM3300
Document no. 5.11018.11
59
of 218
4
VARAN Type code BM3200, BM3300 with VARAN:
BM3XXX-XXXX-XXXXX[-X]-2XXXX
[-S0X]-XX[-XX][-EXX][-#XX]

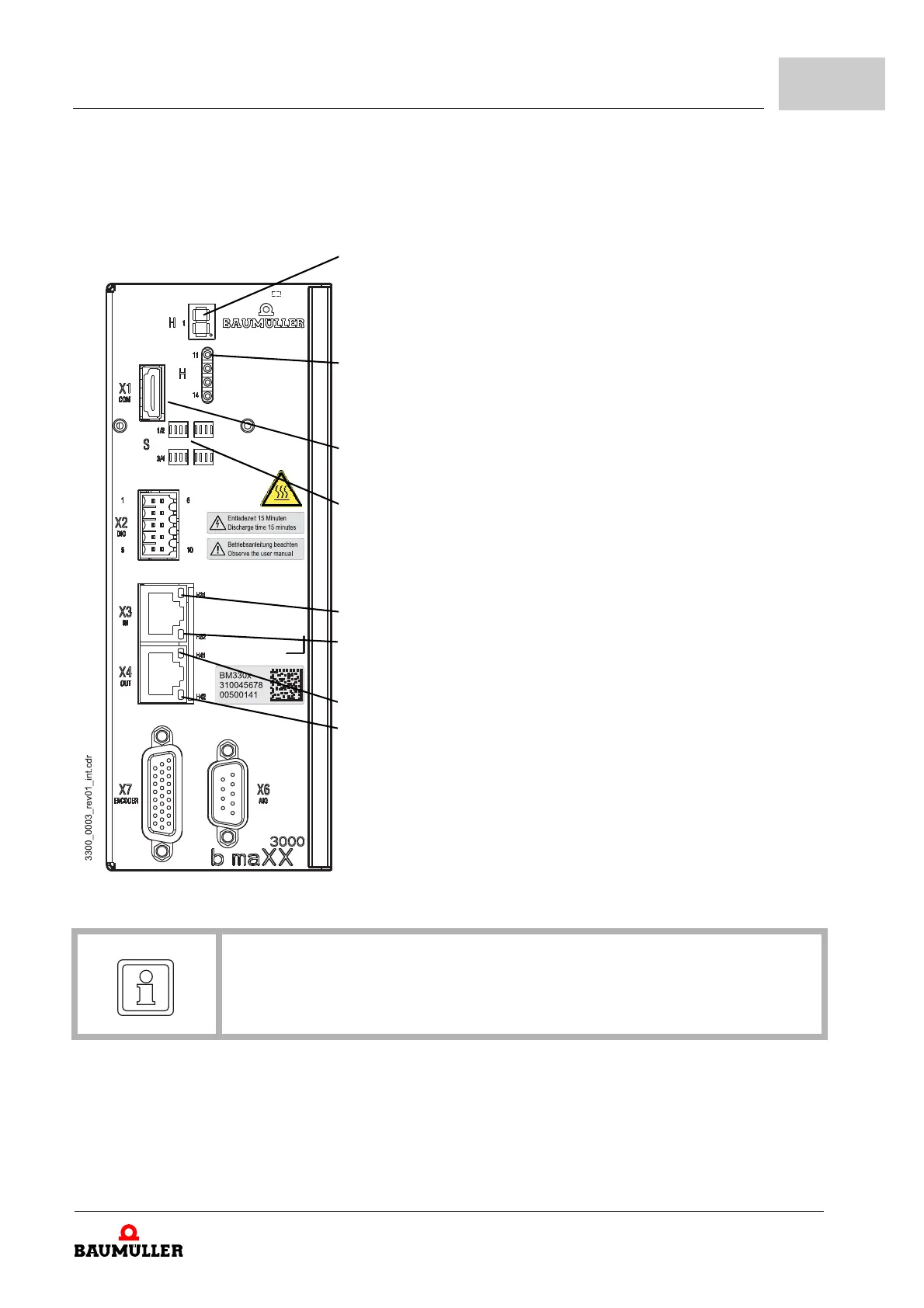

Figure 21: Display-/Operator controls Controller BM3200, BM3300 EtherCAT
®
H1: 7-segment display
display status controller
Meaning see: ZFunction of the 7-segment display–
from page 62
H11 - H14: Status display via LED 
Meaning see: ZFunction of the LEDs H11 to H14– on
page 63
X1: Service interface
S1 - S4: Address switch
Setting: see 
ZSettings address switches– from page 66
H31:LED VARAN
H32:LED VARAN
H41:L
ED VARAN
H42:LED VARAN
Meaning: see ZLEDs VARAN– on page 64
NOTE!
The service i
nterface X1 must be used with the service cable BM5-K-USB-XXX only,
maximum transmission rate 920 kBaud.
